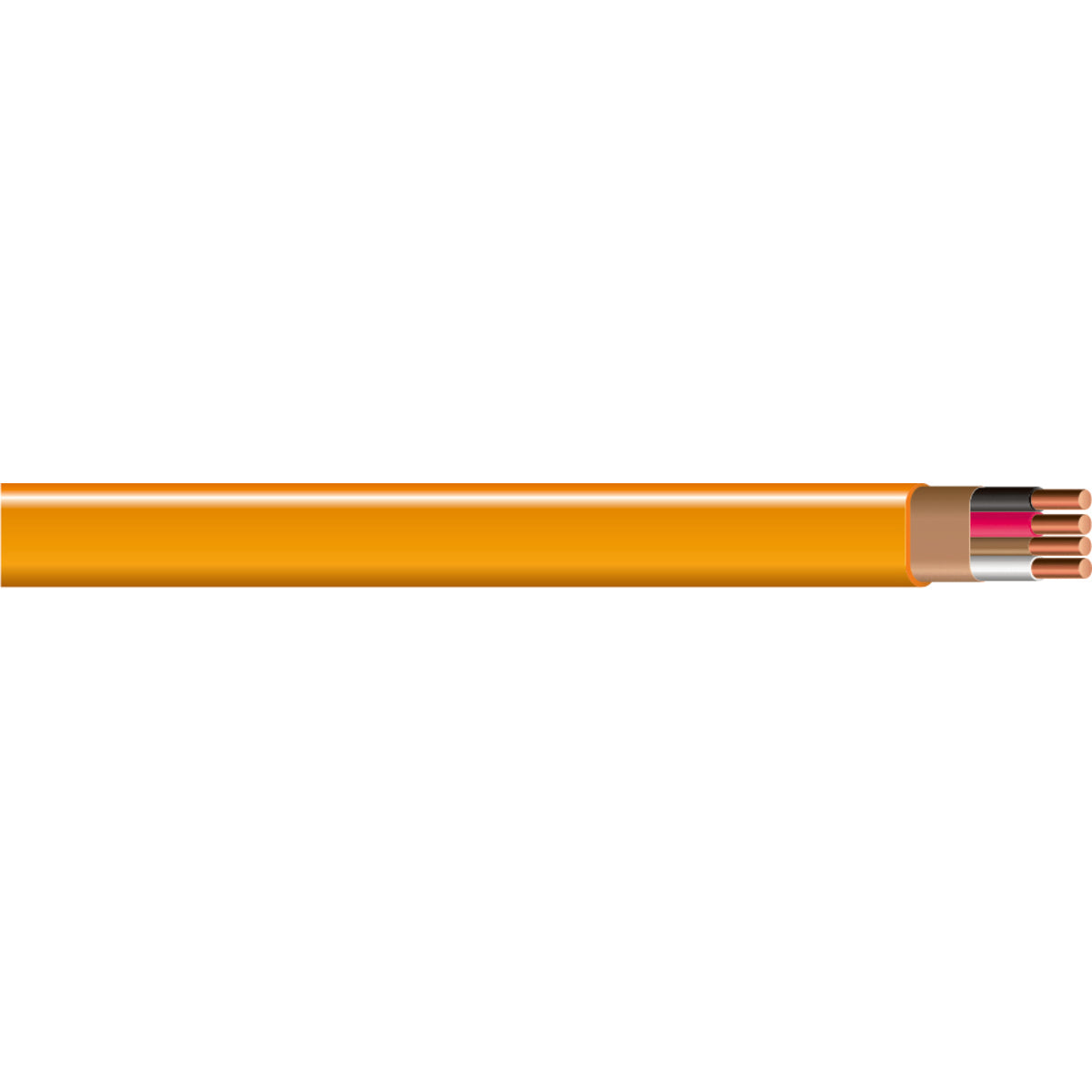

Southwire 28829001 NMB Non-Metallic Sheathed Cable 600V (10 AWG 1000 ft) 28829001

Product Description

Southwire 28829001 is an NM-B non-metallic sheathed cable with 10 AWG solid copper conductors supplied on a 1000 foot spool for residential branch-circuit wiring. The cable features PVC insulation rated 90�C for terminations, a SIMpull PVC jacket, and a 600 volt rating for use in exposed and concealed dry locations for outlets, switches, and lighting fixtures.

• Two 10 AWG insulated solid copper conductors plus 1 ground (3 total), bare copper per ASTM B3
• PVC insulation (90�C) and SIMpull PVC jacket with 600 V rating

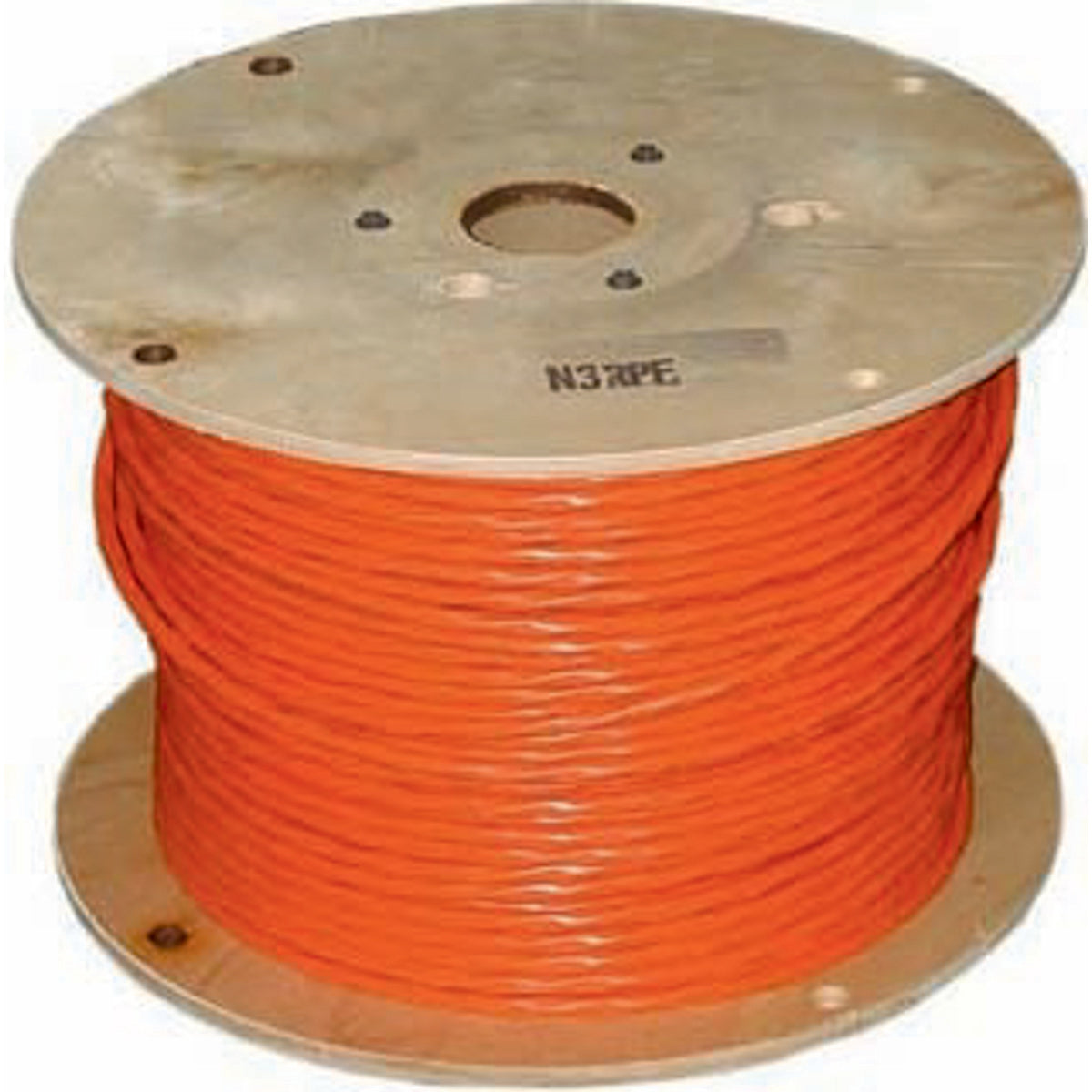

• Supplied on 1000 ft spool; meets standards including UL 719 and ASTM B3/B8

Product Highlights

10 AWG NM-B cable, solid copper conductors, 90�C insulation, 600 V rating, 1000 ft spool; intended for dry residential branch-circuit installations.

Product Information

Standard Information

• Brand: SOUTHWIRE
• Manufacturer Part Number: 28829001
• Country of Origin: United States

Technical Specifications

• Brand: Southwire
• Manufacturer Part Number: 28829001
• Product Type: NM-B non-metallic sheathed cable
• Conductor Size: 10 AWG
• Conductors: 2 insulated conductors plus 1 ground (3 total)
• Conductor Material: Bare copper (per ASTM B3)
• Stranding: Solid
• Insulation Material: PVC
• Insulation Temperature Rating: 90�C
• Jacket Material: PVC
• Jacket Type: SIMpull PVC jacket
• Voltage Rating: 600 V
• Length: 1000 ft
• Standards: ASTM B3, ASTM B8, UL 719, RoHS-2, Federal Specification A-A-59544, NOM-063-SCFI
• Country of Origin: United States
• UPC: 032886263118
• GTIN: 00032886263118
• Approximate Outer Diameter: 0.505 x 0.218 in
• Insulation Thickness: 20 mils (0.51 mm)
• Jacket Thickness: 25 mils (0.64 mm)
• Copper Weight (lbs/1000'): 91
• Approximate Weight (lbs/1000'): 126
