Product Description

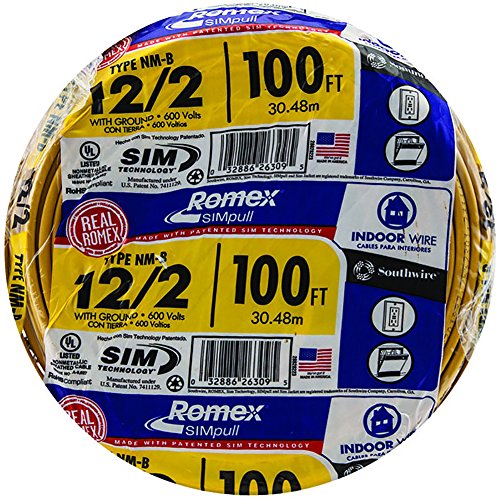

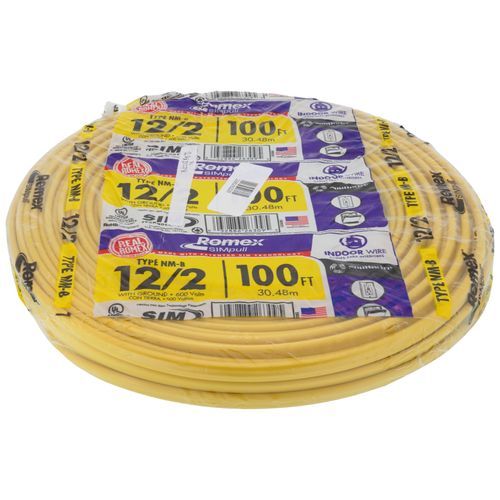

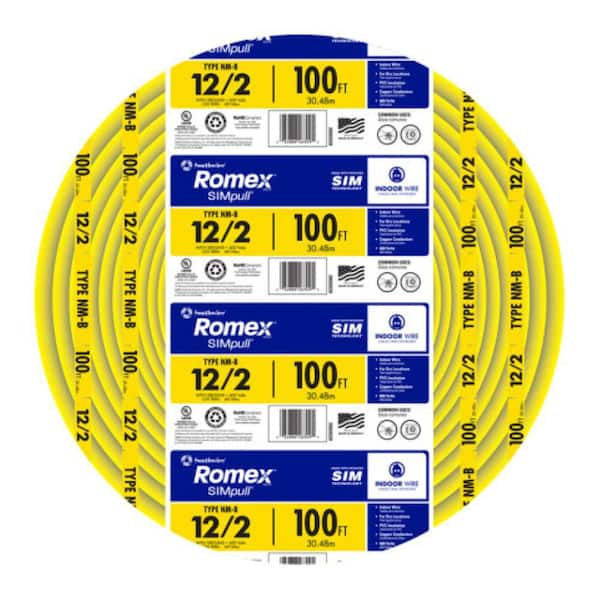

The Southwire 28828228 Romex SIMpull Type NM-B cable is a nonmetallic-sheathed cable designed for both exposed and concealed work in normally dry locations. It features 12 ga copper conductors with a ground wire, insulated with 90 Degrees C-rated polyvinyl chloride (PVC) and nylon jacketed. This 600 V rated cable is suitable for temperatures not exceeding 90 Degrees C, with ampacity limited to 60 Degrees C conductors, and meets UL Standard 83 and National Electrical Code requirements.
- Features SIMpull technology for easier pulling and installation.
- Suitable for exposed and concealed work in normally dry locations, including air voids of masonry block or tile walls.
- Meets or exceeds UL Standard 83, UL Standard 719, Federal Specification A-A-59544, and National Electrical Code requirements.
Product Highlights
600 V rated NM-B cable with 90 Degrees C PVC/nylon jacketed copper conductors for residential wiring applications.
Product Information
Standard Information
-
Brand: SOUTHWIRE
-
Manufacturer Part Number: 28828228
-
Country of Origin: America
Technical Specifications
-
Brand: Southwire
-
Ampacity: 20 AMP
-
Wire Type: Romex
-
Wire Gauge: 12 ga
-
Voltage Rating: 600 V
-
Application: Dry
-
Max Temperature: 90 Degrees C
-
Length: 100 ft
-
Insulation Material: PVC
-
Number of Conductors: 2
-
Wire Type Description: Non Metallic Type B
-
MPN: 28828228
-
Product Type: ELECTRONIC_WIRE
-
Conductor Construction: 12 AWG 2C SOL
-
Number of Strands: 1
-
Number of Grounds: 1
-
Insulation Thickness: 15 mils
-
SPEC: 10028
-
Conductor Stranding: Solid
-
Diameter Over Conductor: 0.080 in (0.20 cm)
-
Ground Size: 1x12
-
Jacket Thickness: 25 mils (0.64 mm)
-
Copper Weight (per 1000 ft): 59 lbs (88 kgs/km)
-
Approximate Weight (per 1000 ft): 87 lbs (129 kgs/km)
-
Conductor Material and Construction: Bare copper per ASTM B3. Sizes #14 AWG - #10 AWG are solid. Sizes #8 AWG - #2 AWG are Class B compressed stranded per ASTM B8
-
Insulation Construction: All phases and neutral(s) are insulated with Polyvinyl Chloride (PVC) with Nylon Sheath
-
Ground Construction: Solid soft drawn bare copper with kraft paper wrap
-
Binder Construction: Kraft paper
-
Jacket Construction: Polyvinyl Chloride (PVC) jacket utilizing SIMpull Technology
-
Standards & References: ASTM B3 Soft or Annealed Copper Wire, ASTM B8 Concentric-Lay-Stranded Copper Conductors, UL 719 Nonmetallic-Sheathed Cables, RoHS-2 (European Directive 2011/65/EU), Federal Specification A-A-59544, NOM-063-SCFI Electrical Products – Conductors – Safety Requirements
-
Item Number: 70016
-
Conductor Configuration: With Ground
-
Product Line: Romex Brand
-
Conductor Material: Copper
