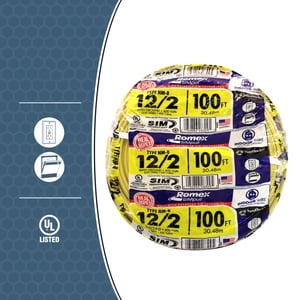

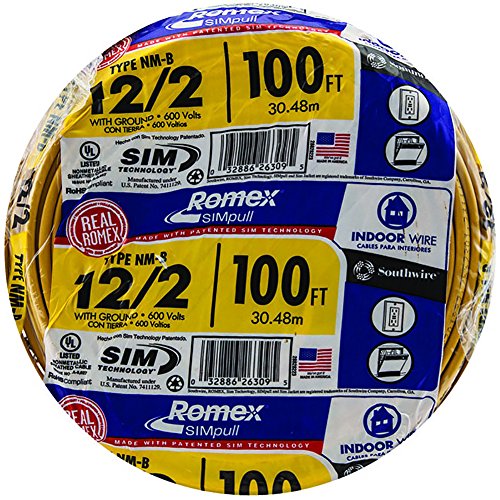

Southwire 28828228 Romex SIMpull Cable With Ground 12/2 AWG 100 ft

Product Description

The Southwire 28828228 Romex SIMpull Type NM-B nonmetallic-sheathed cable is designed for both exposed and concealed work in normally dry locations. It features a 600-volt rating and can operate at temperatures not exceeding 90°C, with ampacity limited to 60°C conductors. This cable is suitable for residential wiring, including branch circuits for outlets and switches, and can be installed in air voids of masonry block walls that are not wet or damp.

• Features SIMpull technology for easier pulling and installation.
• Constructed with 90°C-rated polyvinyl chloride (PVC) and nylon-jacketed conductor insulation.
• Meets or exceeds UL Standard 83, UL Standard 719, Federal Specification A-A-59544, and National Electrical Code requirements.

Product Highlights

This 12/2 AWG Romex SIMpull cable with ground is ideal for residential branch circuits in dry locations, offering 600V rating and 90°C temperature resistance.

Product Information

Standard Information

• Brand: SOUTHWIRE
• Manufacturer Part Number: 28828228
• Country of Origin: USA

Technical Specifications

• Manufacturer: Southwire Company, LLC
• MPN: 28828228
• Product Type: Electronic Wire
• Wire Type: Romex SIMpull Solid Indoor CU NM-B
• Wire Type Description: Non Metallic Type B
• Gauge: 12/2 AWG
• Number of Conductors: 2
• Conductor Type: Solid
• Conductor Material: Bare copper (ASTM B3)
• Conductor Color Code: Black, White
• Ground Size: 1x12 AWG
• Ground Material: Solid soft drawn bare copper with kraft paper wrap
• Insulation Material: Polyvinyl Chloride (PVC) with Nylon Sheath
• Insulation Thickness: 20 mils
• Jacket Material: Polyvinyl Chloride (PVC) with SIMpull Technology
• Jacket Thickness: 25 mils
• Binder Material: Kraft paper
• Voltage Rating: 600 V
• Ampacity: 20 A
• Ampacity Limit: 60°C conductors
• Temperature Rating: 90°C
• Individual Conductor Insulation Rating: 90°C
• Length: 100 ft
• Package Type: 12 inch Coil
• Location Usage: Dry
• Application: Residential building wiring, branch circuit
• Installation Environment: Exposed and concealed, dry locations, above ground
• Diameter Over Conductor: 0.080 in
• Approximate Outer Diameter: 0.422 x 0.190 in
• Copper Weight (per 1000ft): 59 lbs
• Approximate Weight (per 1000ft): 87 lbs
• Weight (100 ft coil): 8.2 lbs
• Construction: 2x2 construction
• Standards & Certifications: ASTM B3, ASTM B8, UL 719, RoHS-2, Federal Specification A-A-59544, NOM-063-SCFI
