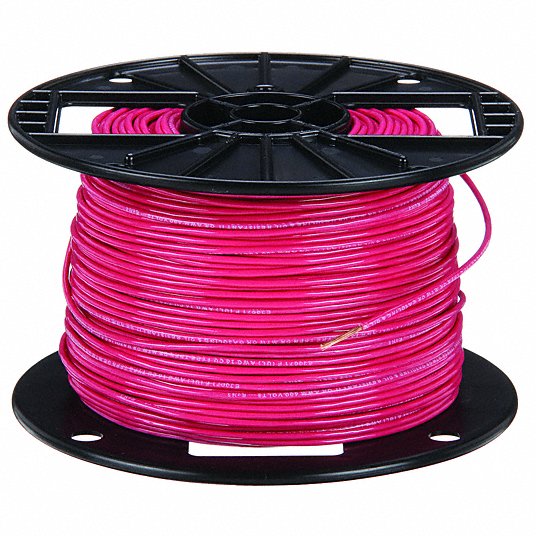

Southwire 27034801 Fixture Wire TFFN 16 AWG 500 ft

Product Description

The SOUTHWIRE 27034801 is a TFFN fixture wire with a 16 AWG wire size and a length of 500 ft. This building wire features a stranded conductor design with nylon jacket and PVC insulation. It is suitable for lighting and low-voltage applications. Rated to handle 600V and can be used in dry locations up to 194°F.

• 16 AWG TFFN fixture wire
• 500 ft. length on a plastic spool
• Stranded copper conductor with nylon jacket and PVC insulation

Product Highlights

The SOUTHWIRE 27034801 fixture wire is a flexible, durable solution for electrical projects requiring a reliable and code-compliant wire.

Product Information

Standard Information

• Brand: SOUTHWIRE
• Manufacturer Part Number: 27034801
• Country of Origin: United States

Technical Specifications

• Item: Fixture Wire
• Length: 500 ft
• Voltage: 600V AC
• Max. Amps: 8
• Packaging: Spool
• Standards: UL Listed
• Stranding: 26
• Wire Size: 16 AWG
• Wire Type: TFFN
• Wire Color: Red
• Jacket Color: Red
• Product Type: Fixture Wire
• Temp. Rating: 194 Degrees F
• Jacket Material: Nylon
• Conductor Design: Stranded
• Stranded / Solid: Stranded
• Trade Designation: TFFN
• Insulation Material: PVC
• Wire and Cable Item: Building Wire
• Nominal Outside Dia.: 0.1 in
• Number of Conductors: 1
• Wire Size (Wire and Cable): 16 AWG
• Wire Type - Wire and Cable: TFFN
• Jacket Material - Wire and Cable: Nylon
• Insulation Material (Wire and Cable): PVC
• Manufacturer Part Number: 27034801
• Fire Resistance Rating: Not Rated
• Conductor Material: Copper
• Conductor Insulation Color: Red
• Conductor Insulation Material: Nylon; PVC
• Number of Strands Per Conductor: 26
• Temperature Rating - Maximum Dry: 194 °F
• Minimum Bend Radius: 3/8 in
• UNSPSC: 26121524
