Southwire 27 13/8 inches-16 Beam Clamp Jaw 7/8 inches

Product Description

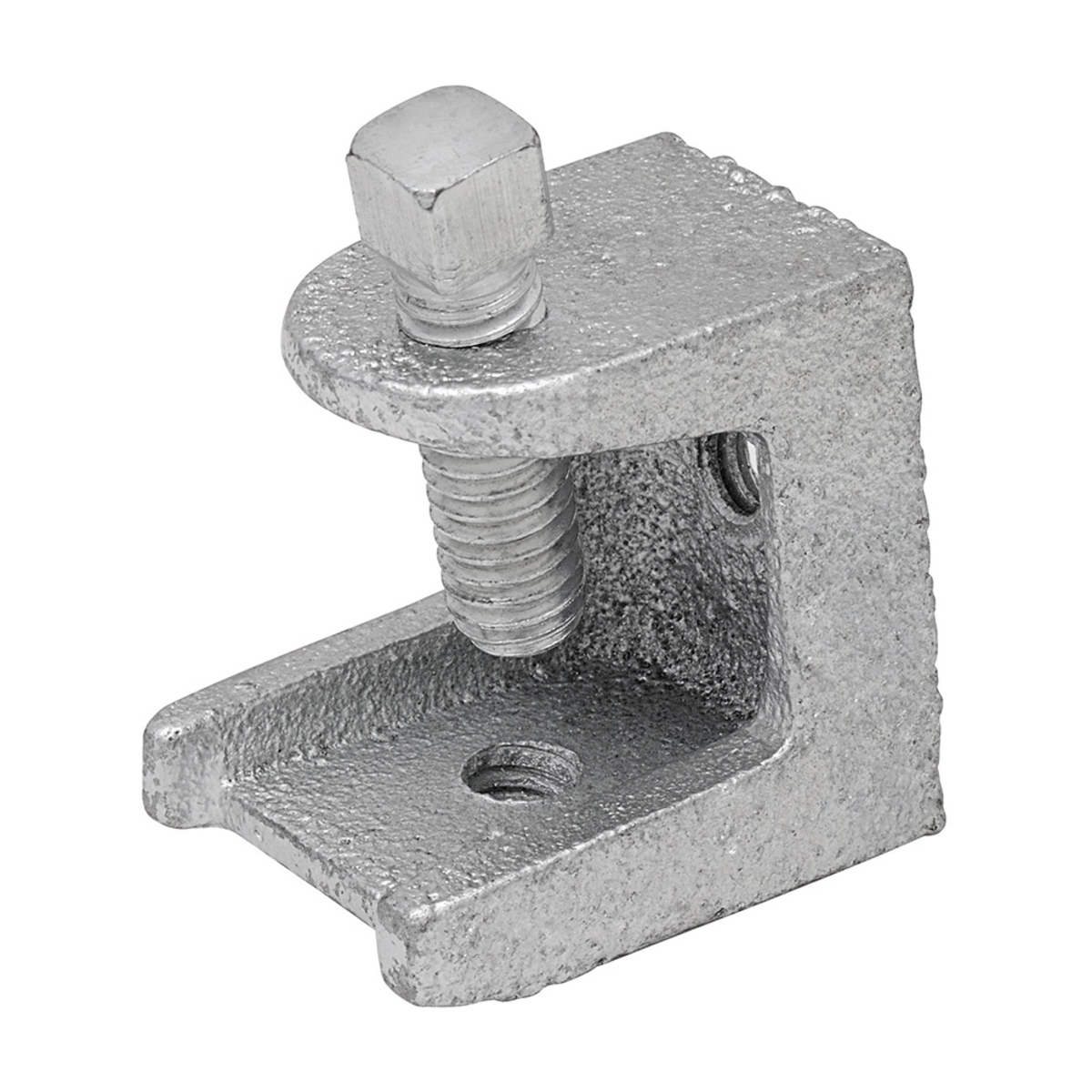

The SOUTHWIRE 27 beam clamp is a malleable iron component designed for secure structural attachment in electrical and electronic installations. Featuring a 7/8" jaw opening and 3/8"-16 tapped holes on the side and bottom, this zinc-plated clamp provides a static load capacity of 1300 lbs. It is suitable for various mounting applications, ensuring reliable support for conduits and cables.

• Tapped holes on side and bottom for versatile attachment
• Constructed from zinc-plated malleable iron for durability
• UL Listed and CSA Listed for safety and compliance

Product Highlights

Durable malleable iron beam clamp with 7/8" jaw, 3/8"-16 tapped holes, and 1300 lbs static load capacity, ensuring secure and compliant mounting.

Product Information

Standard Information

• Brand: SOUTHWIRE
• Manufacturer Part Number: 27

Technical Specifications

• Model Number: 27
• UPC: 784297140273
• Material: Malleable Iron
• Trade Size: 2"
• Jaw Opening: 7/8"
• Hole Thread Size: 3/8"-16
• Static Load Capacity: 1300 lbs
