Southwire 265TZ Rigid Conduit Connector 1-1/2 in

Product Description

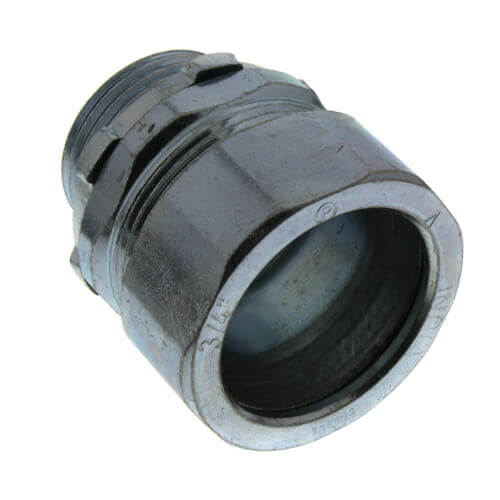

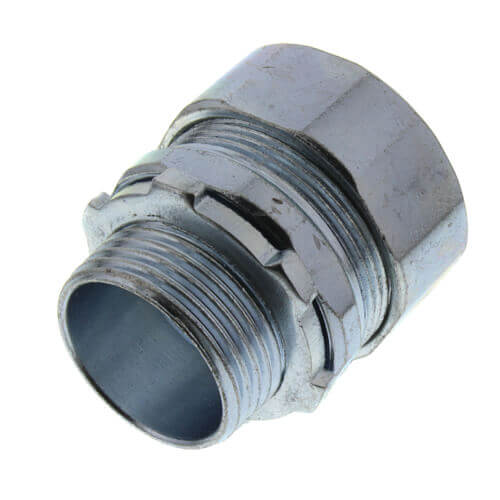

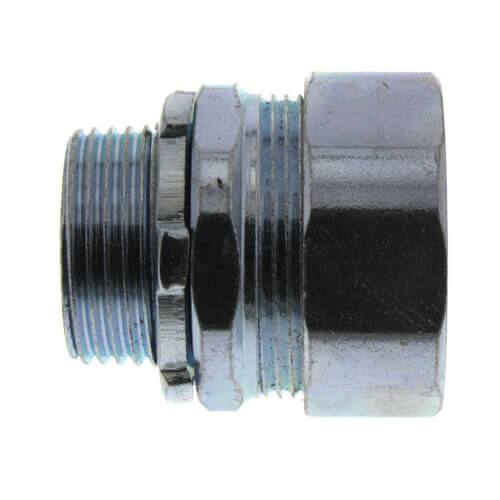

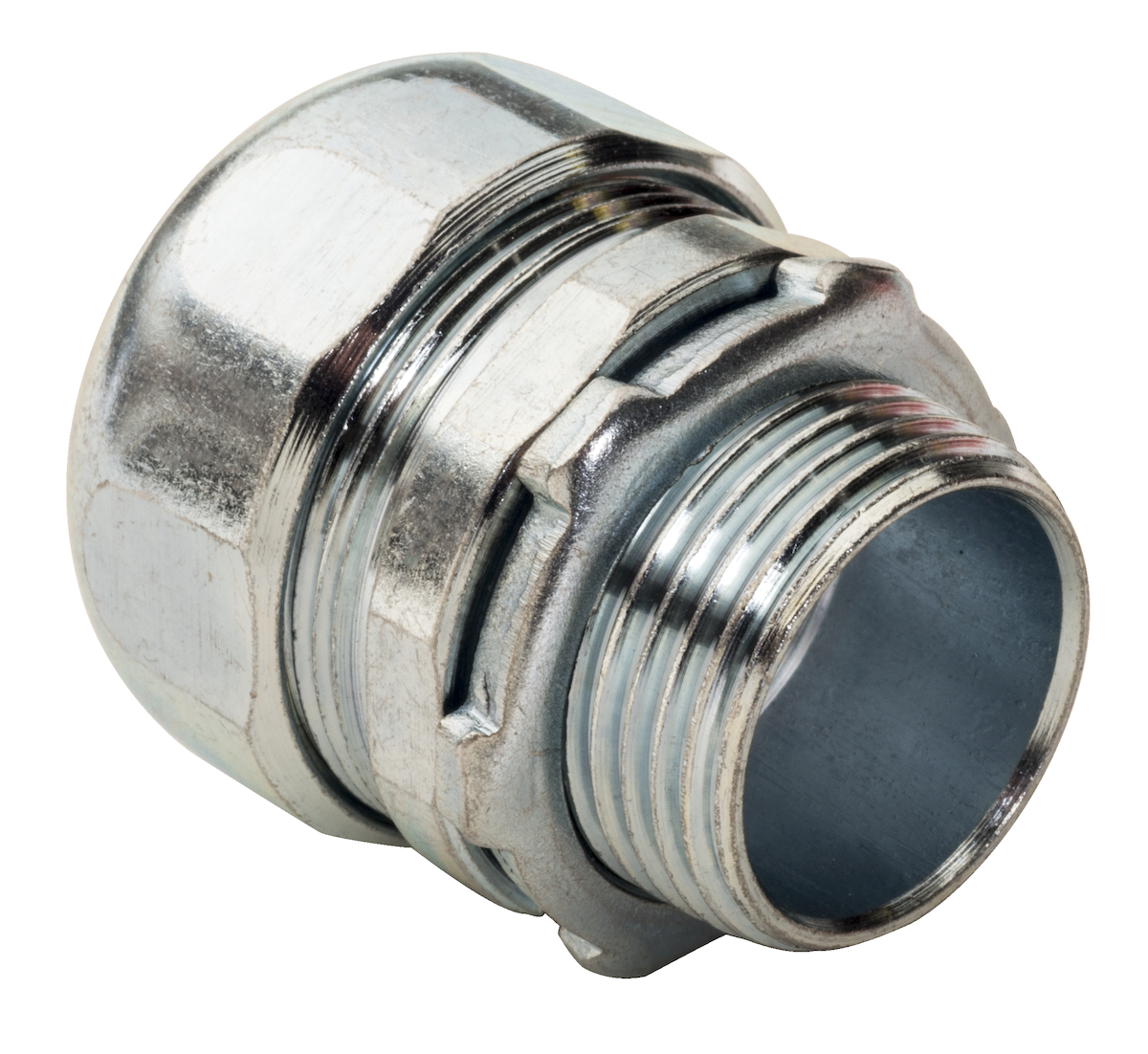

The SOUTHWIRE 265TZ rigid conduit connector is a steel compression, threadless connector designed for use with rigid conduit. UL approved and concrete-tight, this connector is suitable for multiple applications. It has a diameter of 2.38 inches and comes in a standard package of 12 per case.

• 1-1/2" Size
• Steel Material
• Concrete tight

Product Highlights

This steel rigid compression connector is threadless and concrete-tight.

Product Information

Standard Information

• Brand: SOUTHWIRE
• Manufacturer Part Number: 265TZ

Technical Specifications

• Approval: UL
• Constructional Feature: Concrete-Tight
• Diameter REF: 2.38 IN
• Manufacturer Name: Southwire
• Material: Steel
• Product UPC: 751338122406
• Throat Type: Non-Insulated
• Type: Compression, Threadless
• Used On: Rigid Conduit
• Size [Features]: 1-1/2"
• Trade Size: 1-1/2 in
• Standard Approval: UL 514B|UL E170258|US Federal Specification A-A-50553|NEMA/ANSI FB-1|Military Specifications Number W-F-406D|W-F-406E|W-F-408D|W-S-610D
• Application: Suitable for multiple applications; UL listed
