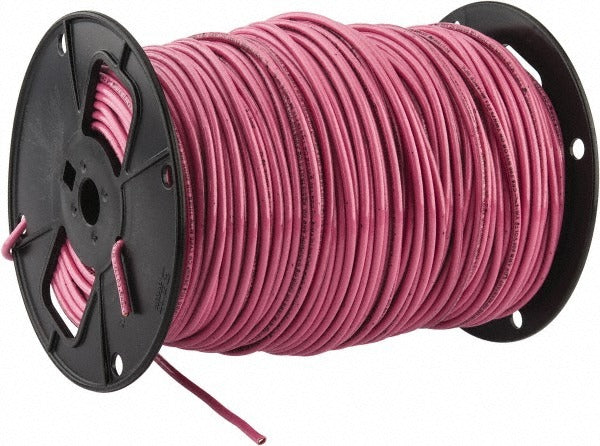

Southwire 26053901 Thhn Thwn Wire 10 Awg 30A 500 Ft Pink

Product Description

The SOUTHWIRE 26053901 is a single-conductor THHN/THWN building wire rated for general-purpose electrical wiring in commercial and residential construction. It features a 10 AWG stranded copper core with 19 strands, a thermoplastic insulation layer, and a nylon jacket in pink. Rated at 30 amps and 600 volts, it suits branch circuit wiring in conduit runs where both dry and wet location ratings are required. Electricians use this wire for panel feeds, branch circuits, and equipment connections where THHN or THWN dual-rated conductors are specified. The 500-foot spool length suits mid-to-large wiring jobs without splicing additional footage.

This wire is suited for use in residential and commercial electrical systems installed inside conduit, raceways, or cable trays. It is rated for both dry (THHN) and wet (THWN) environments, making it versatile across indoor and outdoor conduit applications. The pink jacket color supports circuit identification in multi-conductor installations where color-coding aids troubleshooting and code compliance. Licensed electricians typically pull this wire in EMT, rigid metal, or PVC conduit during rough-in and service work.

Key Features

• Dual-rated THHN/THWN for dry and wet location use in conduit
• 10 AWG stranded copper core with 19 strands for flexibility during pulls
• 30 amp, 600 volt rating for standard branch circuit applications
• Nylon jacket over thermoplastic insulation resists abrasion, heat, moisture, oil, and gasoline
• Maximum operating temperature of 194 degrees F
• Pink jacket supports color-coded circuit identification
• Meets UL 83, UL 1063 (MTW), CSA, RoHS, and Federal Specification A-A-59544

Compatibility

Designed for use in conduit, raceways, and cable trays in residential and commercial electrical installations where THHN or THWN single-conductor building wire is specified per NEC requirements.

Installation Notes

Installation must be performed by a licensed electrician in accordance with the National Electrical Code (NEC) and applicable local codes. De-energize and lock out the circuit or panel before pulling or terminating wire. This wire is rated for use inside conduit or raceways and is not approved for direct burial or open-air runs without appropriate protection. Use listed connectors and terminals sized for 10 AWG conductors at all termination points.
