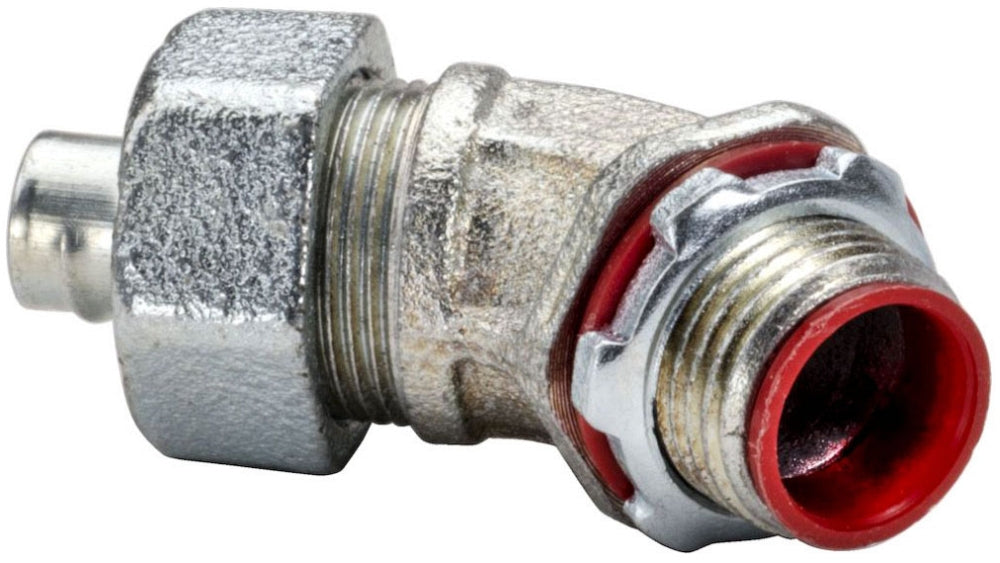

Southwire 234S 1-1/4 in 45 Degree Liquidtight Connector

Product Description

The SOUTHWIRE 234S is a 45-degree liquidtight conduit connector designed for use with liquidtight flexible metal or nonmetallic conduit. It provides a watertight mechanical connection between flexible conduit and an enclosure, junction box, or panel knockout. The 1-1/4 inch trade size makes it suited for mid-range conduit runs where moisture protection is required. Electricians use this fitting to terminate flexible conduit in wet, damp, or outdoor-rated installations where a straight connector is not practical due to routing constraints.

This connector is used in commercial and residential electrical installations where conduit must transition at an angle into equipment enclosures. The 45-degree body angle eases cable strain and simplifies routing in tight spaces. Typical applications include HVAC equipment connections, motor terminations, and outdoor panel feeds where liquidtight protection is required by code. It is installed by licensed electricians working under NEC guidelines for wet or damp location wiring methods.

Key Features

• 45-degree angle body reduces bend stress on flexible conduit at enclosure entries
• 1-1/4 inch trade size fits standard liquidtight flexible conduit of the same trade size
• Liquidtight design provides watertight seal suitable for wet and damp locations
• Compatible with standard knockout openings for straightforward panel and enclosure installation

Compatibility

Designed as an OEM-style fitting for use with 1-1/4 inch trade size liquidtight flexible conduit in wet, damp, or outdoor electrical installations.

Installation Notes

Installation should be performed by a licensed electrician in accordance with NEC requirements for liquidtight flexible conduit systems. De-energize the circuit and verify lockout/tagout procedures before beginning work at any enclosure or panel. Use the appropriate conduit wrench or strap wrench to tighten the fitting body and locknut securely without over-torquing the connector body. Ensure the conduit sealing ring is properly seated to maintain the liquidtight rating of the assembly.

Technical Specifications

• Trade Size: 1-1/4 inches
• Angle: 45 degrees
• Connection Type: Liquidtight Conduit Connector
• Weight: 22 pounds
• UPC: 75133833550

Standard Information

• Brand: SOUTHWIRE
• Manufacturer Part Number: 234S
