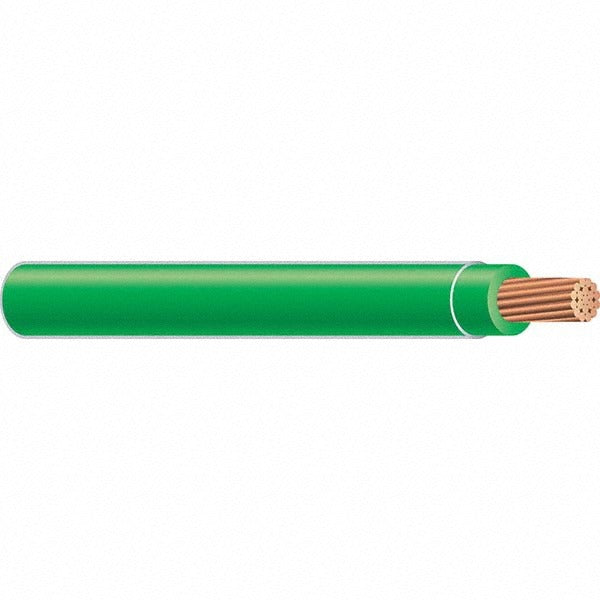

Southwire 22977384 Thhn 10 Awg Stranded Copper Wire Green

Product Description

The SOUTHWIRE 22977384 is a 10 AWG stranded copper THHN building wire rated for 600 volts and 30 amps. It features a green polyvinyl chloride (PVC) jacket over thermoplastic insulation, making it suitable for use as a ground conductor in branch circuit and feeder wiring. With 19 strands, it offers greater flexibility than solid wire during pull-through in conduit. Licensed electricians install this wire in residential, commercial, and light industrial applications where a code-compliant grounding conductor is required.

This wire is used in conduit runs for branch circuits and feeders where a grounding conductor is needed. The green jacket color is the NEC-recognized standard identifier for equipment grounding conductors, helping installers maintain code compliance at a glance. It is suited for dry, damp, or wet locations within conduit systems in residential and commercial construction or retrofit projects.

Key Features

• 10 AWG stranded copper conductor with 19 strands for flexible conduit pulls
• 600-volt rating suitable for standard branch circuit and feeder applications
• Green PVC jacket identifies this as an equipment grounding conductor per NEC guidelines
• Thermoplastic insulation rated to 90 degrees F minimum operating temperature
• Resistant to abrasion, gasoline, heat, moisture, and oil
• Listed to UL 83, UL 1063 (MTW), CSA, and RoHS compliant

Compatibility

Designed for use as a THHN equipment grounding conductor in conduit-based wiring systems meeting NEC and applicable local electrical code requirements.

Installation Notes

Installation should be performed by a licensed electrician in accordance with the National Electrical Code (NEC) and applicable local codes. Always de-energize the circuit and verify zero voltage with a meter before making any connections. Pull wire through conduit using appropriate pulling lubricant to avoid jacket damage. Green-jacketed conductors must be used only as equipment grounding conductors per NEC Article 250.
