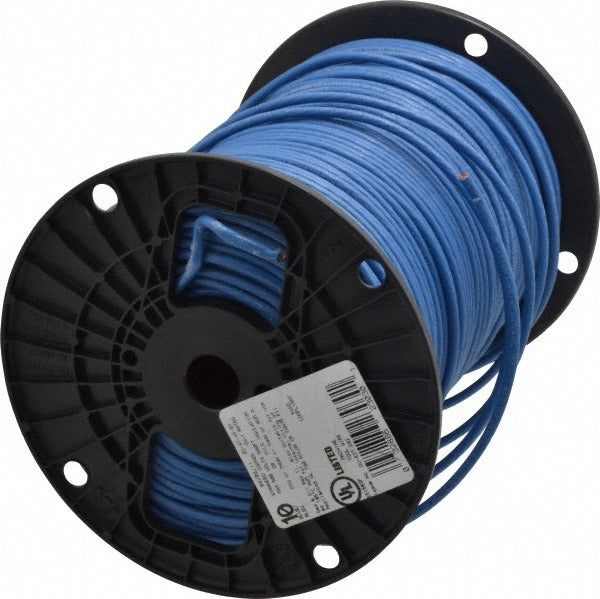

Southwire 22976501 Thhn Thwn 10 Awg 30A 500ft Stranded Wire

Product Description

The SOUTHWIRE 22976501 is a THHN/THWN-rated building wire designed for use in residential, commercial, and industrial electrical installations. This 10 AWG stranded copper conductor is rated at 30 amps and 600 volts, making it suitable for branch circuit wiring, feeder runs, and general-purpose wiring in conduit. The wire features thermoplastic insulation with a nylon jacket in blue, providing resistance to abrasion, moisture, oil, gasoline, and heat. Each spool contains 500 feet of 19-strand copper wire. Licensed electricians and electrical contractors are the primary installers of this product.

This wire is suited for use in dry, damp, or wet locations where THHN or THWN conductors are specified. The stranded construction provides flexibility during pull-through in conduit compared to solid conductors, making it a common choice for longer runs and installations requiring bending around obstacles. The blue jacket color aids in circuit identification during installation and future service work. It is appropriate for use in residential panels, commercial distribution systems, and light industrial applications where a 10 AWG conductor meets the load requirements.

Key Features

• 10 AWG stranded copper conductor with 19 strands for installation flexibility
• Rated 30 amps at 600 volts for branch circuit and feeder applications
• THHN/THWN dual rating suitable for dry, damp, and wet locations
• Thermoplastic insulation with nylon jacket in blue for circuit identification
• Maximum operating temperature of 194 degrees F
• Resistant to abrasion, gasoline, heat, moisture, and oil
• 500-foot spool length for branch circuit and feeder runs

Compatibility

Designed for use in conduit systems where THHN or THWN conductors are required per NEC specifications. Suitable for standard electrical raceways, conduit bodies, and panel terminations accepting 10 AWG conductors.

Installation Notes

Installation should be performed by a licensed electrician in accordance with the National Electrical Code (NEC) and all applicable local codes. De-energize and lock out the circuit or panel before making any terminations. Pull wire through conduit using appropriate wire-pulling lubricant to avoid jacket damage; do not exceed the wire's minimum bend radius. Verify ampacity derating requirements when bundling multiple conductors in a single conduit.
