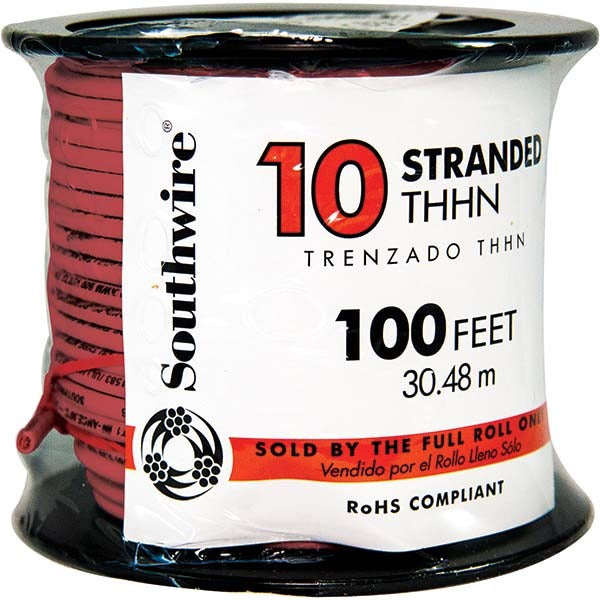

Southwire 22975737 Thhn Thwn 10 Awg 30A 100ft Stranded Wire Red

Product Description

The SOUTHWIRE 22975737 is a 10 AWG stranded copper building wire rated for THHN and THWN applications at 600 volts and 30 amps. It features thermoplastic insulation with a nylon jacket in red, wound into a 100-foot spool. The 19-strand copper core delivers flexibility for pulling through conduit in both residential and commercial installations. This wire is rated for a maximum operating temperature of 194 degrees F and is UL Listed, CSA certified, and RoHS compliant. Licensed electricians and electrical contractors are the primary installers for this product type.

This wire is suited for branch circuit wiring, feeder runs, and general-purpose electrical installations in conduit. The THHN rating covers dry locations while the THWN rating extends use to wet locations, making it versatile for indoor panels, junction boxes, and conduit runs exposed to moisture. The red jacket is commonly used to identify specific phase or circuit assignments in multi-wire installations following job-site or NEC color-coding practices.

Key Features

• Dual THHN/THWN rating for use in both dry and wet conduit environments
• 10 AWG stranded copper with 19-strand configuration for improved pull flexibility
• 600-volt rating suitable for standard residential and commercial branch circuits
• Thermoplastic insulation with nylon jacket resists abrasion, heat, moisture, oil, and gasoline
• Red jacket aids phase identification and circuit tracing on the job site
• UL Listed, CSA certified, and RoHS compliant; meets ASTM and Federal Specification A-A-59544

Compatibility

Designed for use in conduit installations requiring THHN or THWN-rated 10 AWG copper conductors in residential and commercial electrical systems.

Installation Notes

Installation must be performed by a licensed electrician in accordance with the National Electrical Code (NEC) and applicable local codes. De-energize and lock out the circuit before making any connections. Use appropriate conduit fill calculations per NEC Article 310 and Chapter 9 to avoid overfill. Do not exceed the wire's 30-amp or 600-volt ratings for the intended circuit.
