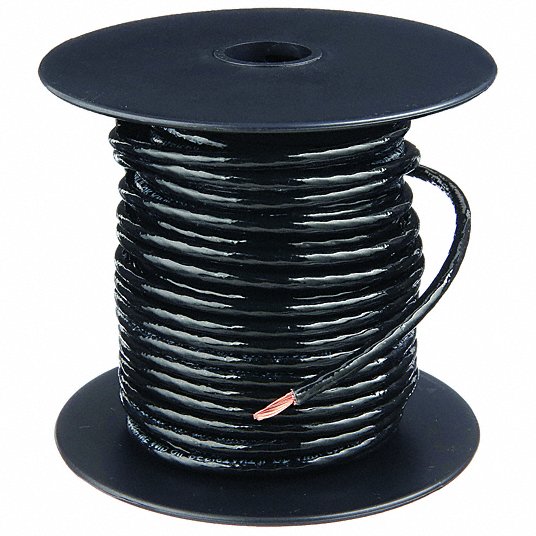

Southwire 22973284 Building Wire: Copper, 10 AWG, 1 Conductors, Stranded, 100 ft Lg, THHN

Product Description

The SOUTHWIRE 22973284 is a copper building wire with a 10 AWG conductor size. This stranded wire features a single conductor with black insulation and a THHN trade designation. It has an overall length of 100 ft and is suitable for use in various electrical applications. The wire is UL Listed and has a voltage rating of 600 V.

• 10 AWG copper conductor
• 100 ft overall length
• THHN trade designation

Product Highlights

Copper building wire, 10 AWG, 100 ft length, suitable for electrical applications.

Product Information

Standard Information

• Brand: SOUTHWIRE
• Manufacturer Part Number: 22973284
• Country of Origin: USA

Technical Specifications

• Mfr. Model: 22973284
• Catalog Page: N/A
• Catalog Group: N0816
• Brand: SOUTHWIRE
• Manufacturer Part Number: 22973284
• Trade Designation: THHN
• Fire Resistance Rating: Not Rated
• Voltage: 600 V
• Overall Length: 100 ft
• Packaging: Spool
• Number of Conductors: 1
• Conductor Size: 10 AWG
• Conductor Material: Copper
• Conductor Insulation Color: Black
• Conductor Insulation Material: Nylon; PVC
• Conductor Design: Stranded
• Number of Strands Per Conductor: 19
• Nominal Outside Diameter: 0.16 in
• Temperature Rating - Maximum Dry: 194 °F
• Temperature Rating - Maximum Wet: 167 °F
• Minimum Bend Radius: 11/16 in
• Standards: UL Listed
• UNSPSC: 26121517
