Southwire 22969058 Thhn Wire 12 Awg Stranded 500 Ft Yellow

Product Description

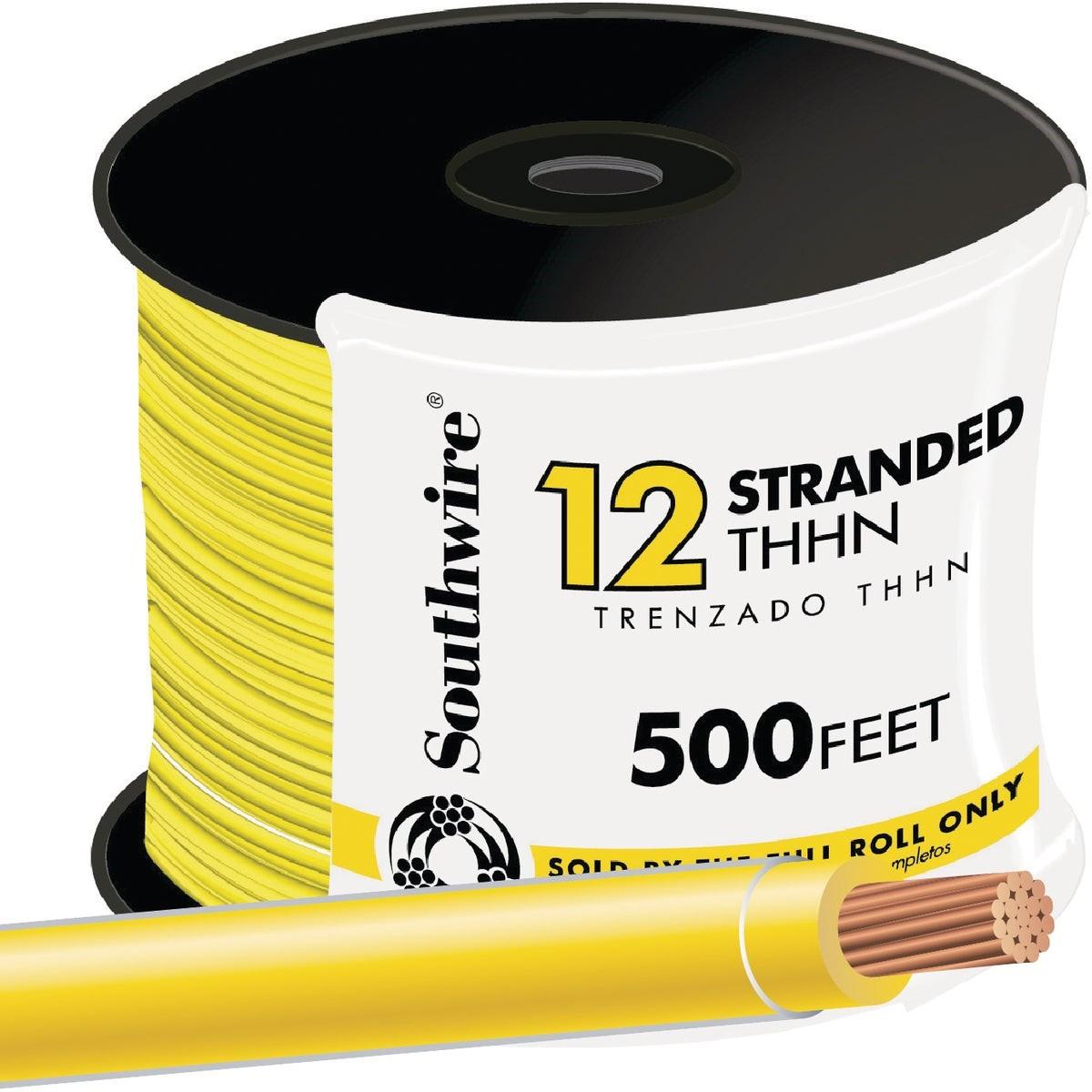

The SOUTHWIRE 22969058 is a 500-foot roll of 12 AWG stranded THHN building wire in yellow. It is a general-purpose, 600-volt rated conductor designed for power, lighting, and control wiring in commercial and residential electrical systems. The conductor is stranded copper, insulated with flame-retardant PVC and finished with a nylon jacket. The nylon jacket enables easier pulling through conduit and adds resistance to oil, gasoline, chemicals, and abrasion. This wire is rated for operation up to 90 degrees C and is UL listed. Licensed electricians and electrical contractors are the primary installers of this product.

This wire is suited for use in conduit and raceways in a wide range of applications including branch circuit wiring, panel feeds, lighting circuits, and control wiring. The yellow jacket color is commonly associated with 12 AWG conductors, which supports quick identification during installation and inspection. It is appropriate for both residential and light commercial electrical work where a 600-volt, THHN-rated conductor is required.

Key Features

• 12 AWG stranded copper conductor for flexibility during installation
• 600-volt rated for standard branch circuit and feeder applications
• 90 degrees C temperature rating for higher-load environments
• Flame-retardant PVC insulation with nylon jacket for durability and easy conduit pulling
• Resistant to oil, gasoline, chemicals, and abrasion
• UL listed for compliance with standard electrical code requirements
• 500-foot roll minimizes splices on longer runs

Compatibility

Designed for use in conduit and raceway systems where a 600-volt, 12 AWG THHN stranded building wire is specified.

Installation Notes

Installation should be performed by a licensed electrician in accordance with the National Electrical Code (NEC) and all applicable local codes. De-energize and lock out the circuit before making any connections. Use appropriate wire pulling lubricant when running through conduit to reduce friction and avoid jacket damage. Do not exceed the wire's 600-volt or 90 degrees C ratings.

Technical Specifications

• Wire Gauge: 12 AWG
• Conductor Type: Stranded Copper
• Insulation: Flame-Retardant PVC with Nylon Jacket
• Voltage Rating: 600 volts
• Temperature Rating: 90 degrees C
• Wire Standard: THHN
• Color: Yellow
• Length: 500 feet
• Unit of Measure: Roll
• Weight: 12.775 pounds
• Certifications: UL Listed

Standard Information

• Brand: SOUTHWIRE
• Manufacturer Part Number: 22969058
