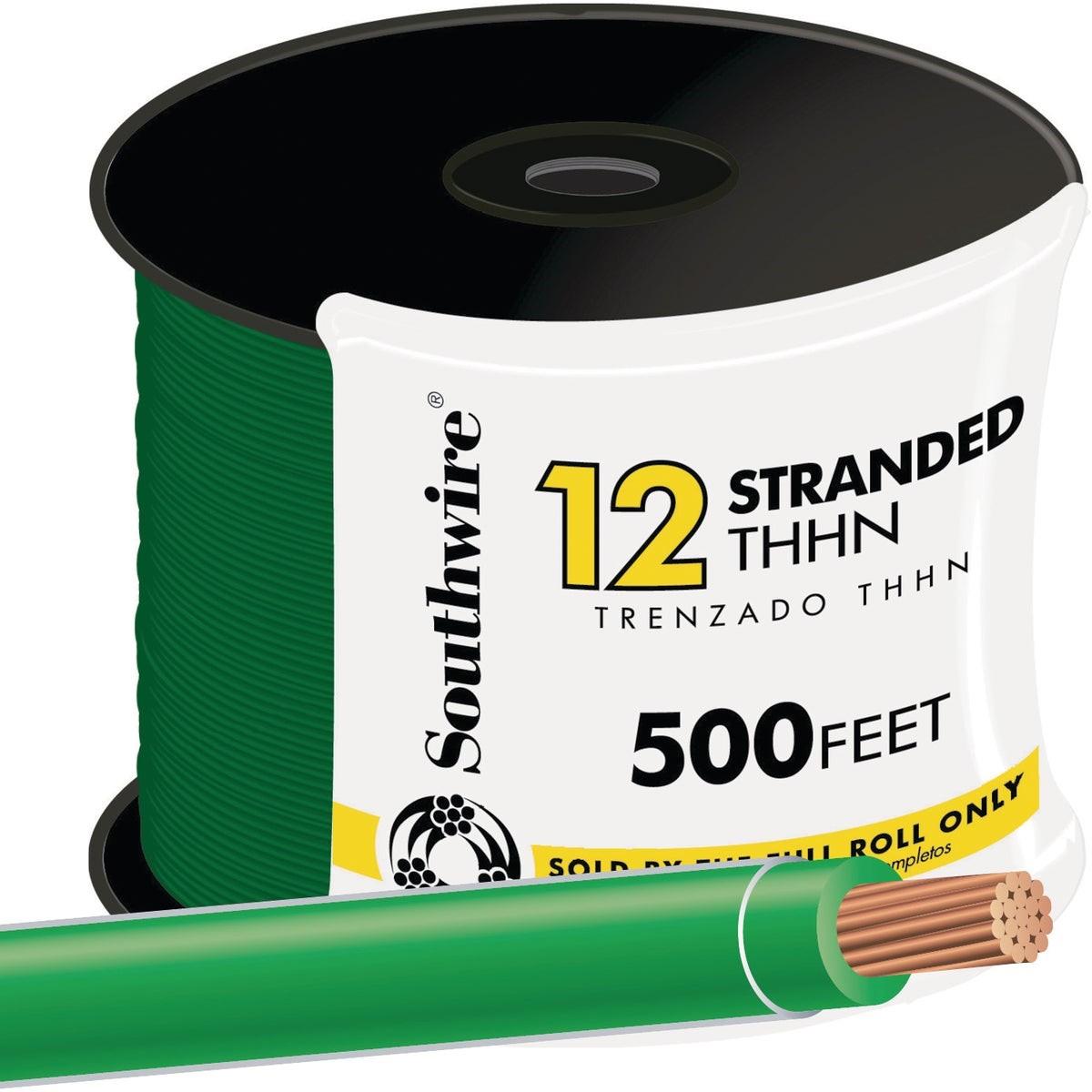

Southwire 22968258 Thhn Wire 12 Awg Stranded Green 500 Ft

Product Description

The SOUTHWIRE 22968258 is a 500-foot roll of 12 AWG stranded green THHN building wire rated for general-purpose power, lighting, and control wiring applications. Constructed with stranded copper conductors, it features flame-retardant PVC insulation and a nylon jacket that provides resistance to oil, gasoline, chemicals, and abrasion. The wire carries a 600-volt rating and a 90 degrees C temperature rating, meeting the performance demands of commercial and residential electrical installations. UL listed for use in conduit and raceways, this wire is a dependable choice for licensed electricians working on branch circuits, feeder runs, and control systems.

This THHN wire is suited for residential and light commercial wiring routed through conduit, wireways, and raceways. The green jacket color designates it as an equipment grounding conductor in accordance with standard NEC color-coding practices. Electricians use this gauge and construction on 20-amp branch circuits and grounding runs where a 500-foot roll supports larger projects without splicing multiple shorter lengths.

Key Features

• 600-volt rated for branch circuit and feeder wiring in conduit and raceways
• 90 degrees C temperature rating for dry and damp locations
• Stranded copper construction for flexibility during pull-through and termination
• Flame-retardant PVC insulation with nylon jacket resists oil, gasoline, chemicals, and abrasion
• Green jacket color identifies this wire as an equipment grounding conductor per NEC conventions
• UL listed for compliance with standard electrical installation requirements

Compatibility

Designed for use in conduit and raceway systems where THHN or THWN-rated 12 AWG stranded wire is specified. Suitable for general-purpose power, lighting, and control wiring in residential and light commercial electrical systems.

Installation Notes

Installation should be performed by a licensed electrician in accordance with the National Electrical Code (NEC) and applicable local codes. De-energize and lock out the circuit before making any terminations. Use appropriate conduit fill calculations when routing alongside other conductors in the same raceway. Avoid exceeding the wire's rated temperature or voltage during installation or operation.

Technical Specifications

• Wire Gauge: 12 AWG
• Conductor Type: Stranded Copper
• Wire Type: THHN
• Voltage Rating: 600 volts
• Temperature Rating: 90 degrees C
• Insulation: Flame-retardant PVC with nylon jacket
• Color: Green
• Length: 500 feet
• Unit of Measure: Roll
• Weight: 11.85 pounds
• Certifications: UL Listed

Standard Information

• Brand: SOUTHWIRE
• Manufacturer Part Number: 22968258
