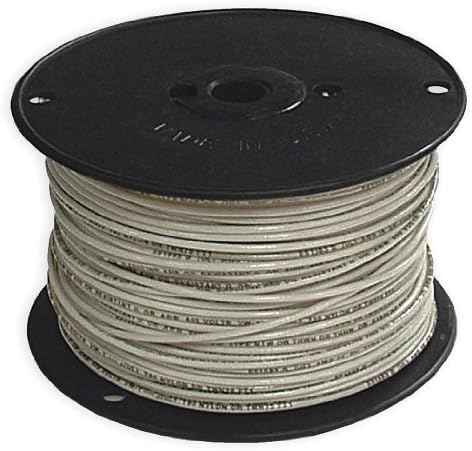

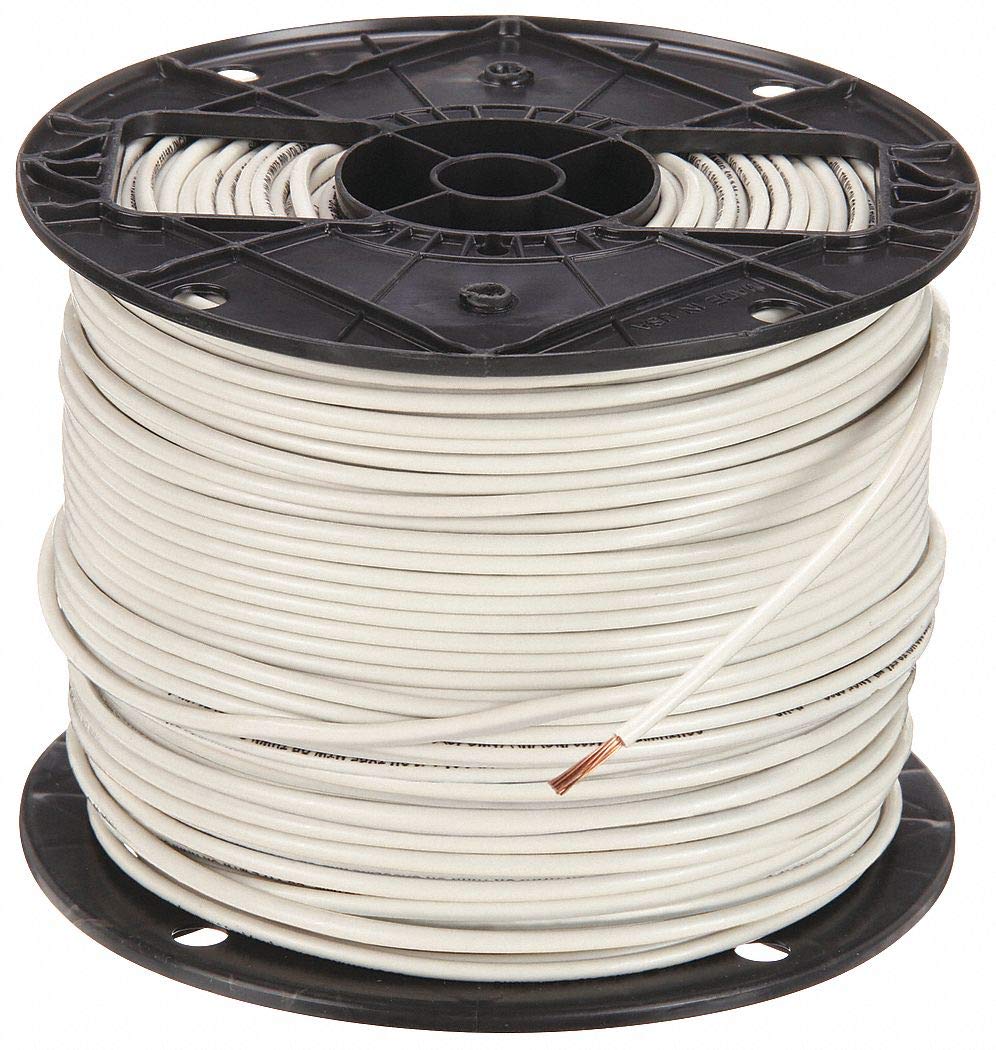

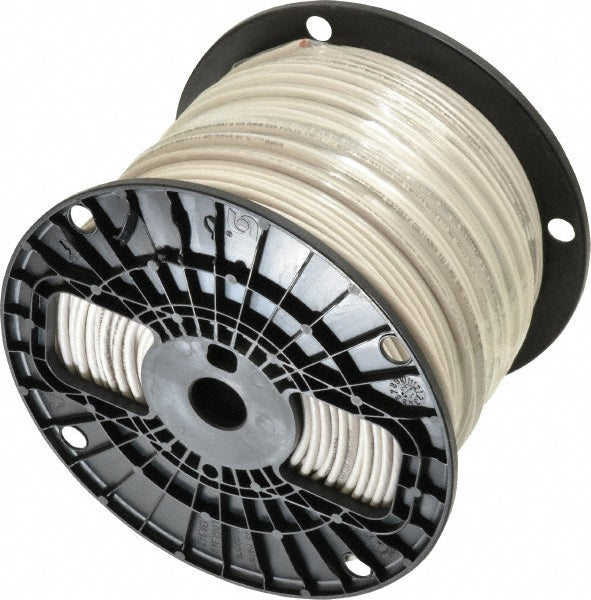

Southwire 22965801 12-gauge 19 str stranded THHN building wire 600V 500-feet

Product Description

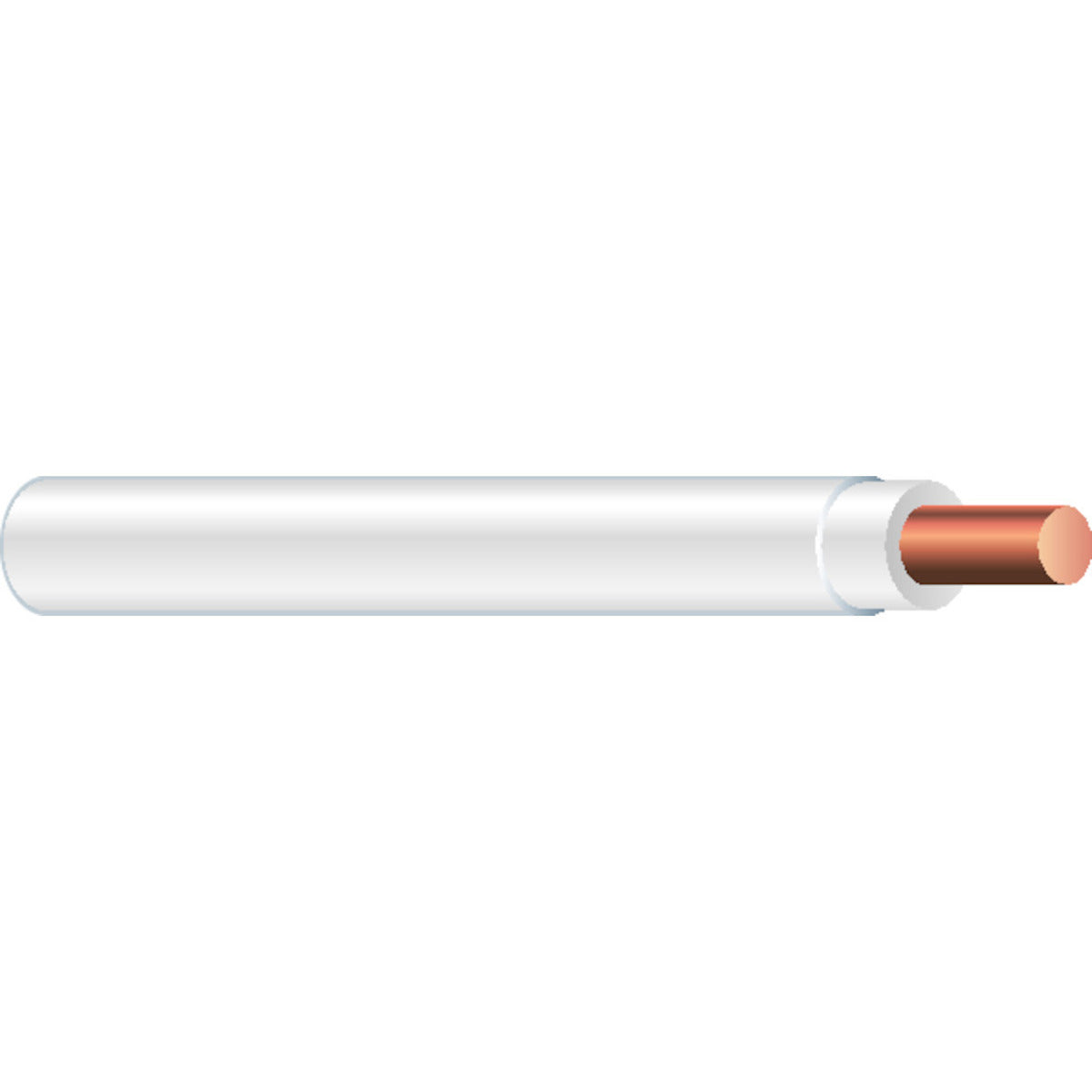

The Southwire 22965801 is a 12 AWG, 19 STR stranded THHN building wire, supplied in a 500-foot length. This copper conductor wire is rated for 600V and features thermoplastic insulation with a nylon sheath. It is designed for commercial and industrial applications, suitable for use in conduit and cable trays. The wire is resistant to heat, moisture, gasoline, and oil.

• 12 AWG, 19 STR stranded copper conductor THHN building wire, 500-feet in length.
• Rated for 600V, featuring PVC insulation and a nylon sheath for durability.
• Resistant to heat, moisture, gasoline, and oil, suitable for commercial and industrial applications.

Product Highlights

This Southwire 22965801 THHN wire offers robust performance for electrical installations, featuring a 600V rating, 12 AWG stranded copper, and resistance to environmental factors.

Product Information

Standard Information

• Brand: SOUTHWIRE
• Manufacturer Part Number: 22965801
• Country of Origin: USA

Technical Specifications

• MPN: 22965801
• Manufacturer: Southwire
• Brand: Southwire
• Gauge: 12 AWG
• Number of Strands: 19
• Length: 500 ft
• Conductor Material: Copper
• Insulation Material: PVC
• Jacket Material: Nylon
• Voltage Rating: 600V
• Application: Commercial
• Number of Conductors: 1
• Conductor Type: Stranded
• Wire Type: THHN
• Ampacity: 20 A
• Temperature Rating: 90 °C (Dry), 75 °C (Wet)
• Country of Origin: United States
• Made in USA: Yes
• Packaging: Spool
• Outside Diameter: 0.132 in
• Minimum Bend Radius: 1/2 in
• Resistance Features: Gasoline-Resistant, Moisture-Resistant, Oil-Resistant, Abrasion-Resistant, Heat Resistant
• Standards: CSA, UL Listed, UL 83, ASTM Specifications, RoHS Compliant, Federal Specification A-A-59544, UL 1063 (MTW), ASTM B3/B8/B787, NEMA WC-70, NFPA 70, UL 1581, UL E34382
