Southwire 22964184 12-19 SD CU THHN-THWN-MTW-AWM UL/c(UL) 100 FT

Product Description

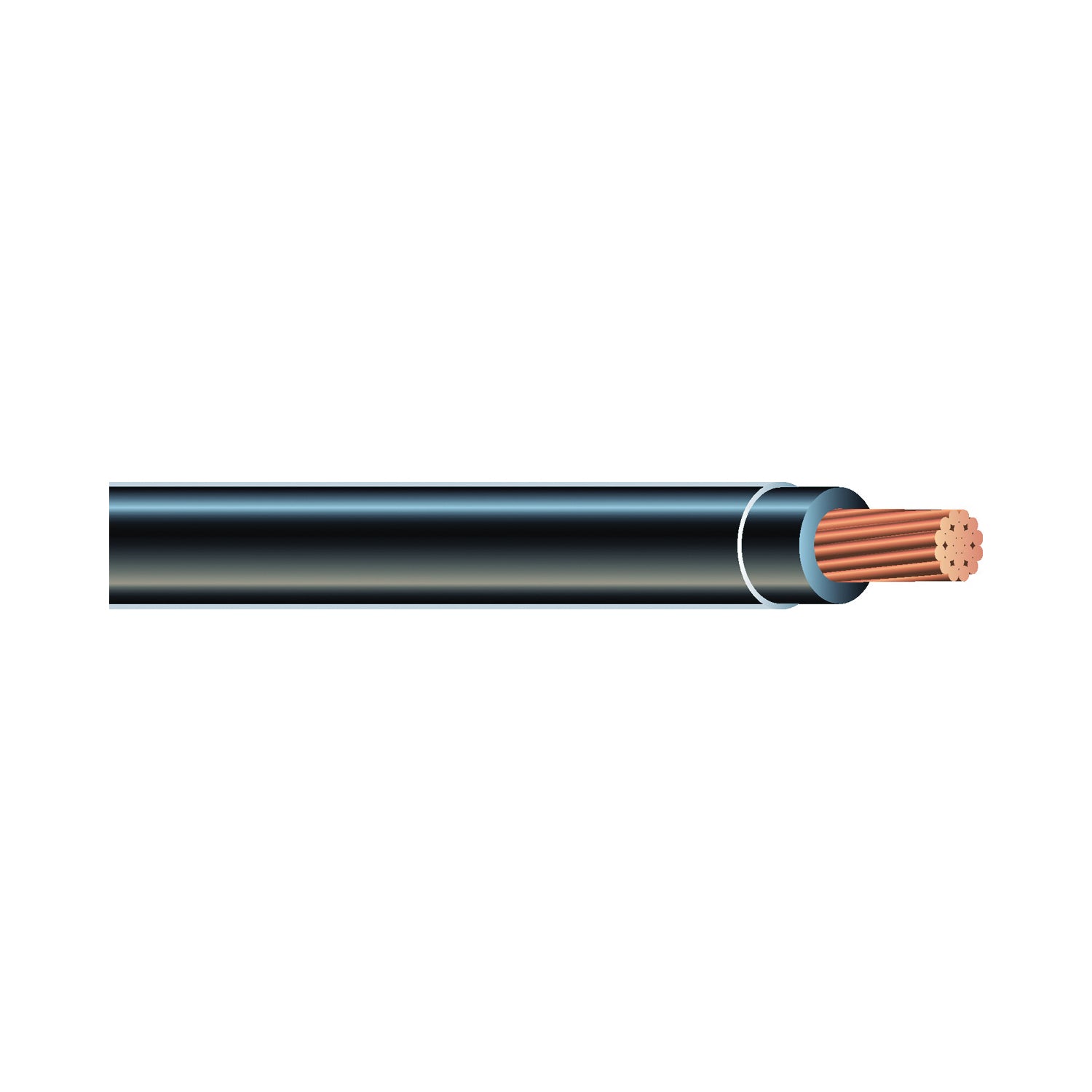

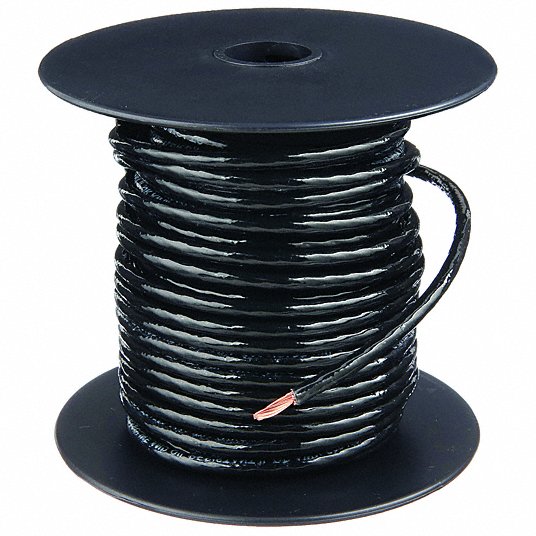

The Southwire 22964184 is a THHN copper conductor designed for use in conduits for branch circuits in commercial and industrial settings. It complies with National Electrical Code standards for safe electrical installations. This product is suitable for applications with a voltage of six hundred volts. The wire measures twelve AWG and features one conductor made with nineteen strands, stretching to a total length of one hundred feet.

• Gasoline and Oil Resistant II
• VW-1 for sizes fourteen through ten AWG
• FT1 for all sizes

Product Highlights

This wire is ideal for use in environments where durability is essential, such as in buildings and outdoor installations.

Product Information

Standard Information

• Brand: Southwire
• MPN: 22964184

Technical Specifications

• Conductor Size: 12 AWG
• Conductor Number: 1
• Conductor Strands: 19
• Diameter Over Conductor: 0.090 inches
• Insulation Thickness: 16 mils
• Approximate OD: 0.132 inches
• Copper Weight: 20 lbs/1000'
• Voltage: 600 V
• Overall Length: 100 ft
• Conductor Material: Copper
• Temperature Rating - Maximum Dry: 194°F
• Standards: UL Listed
