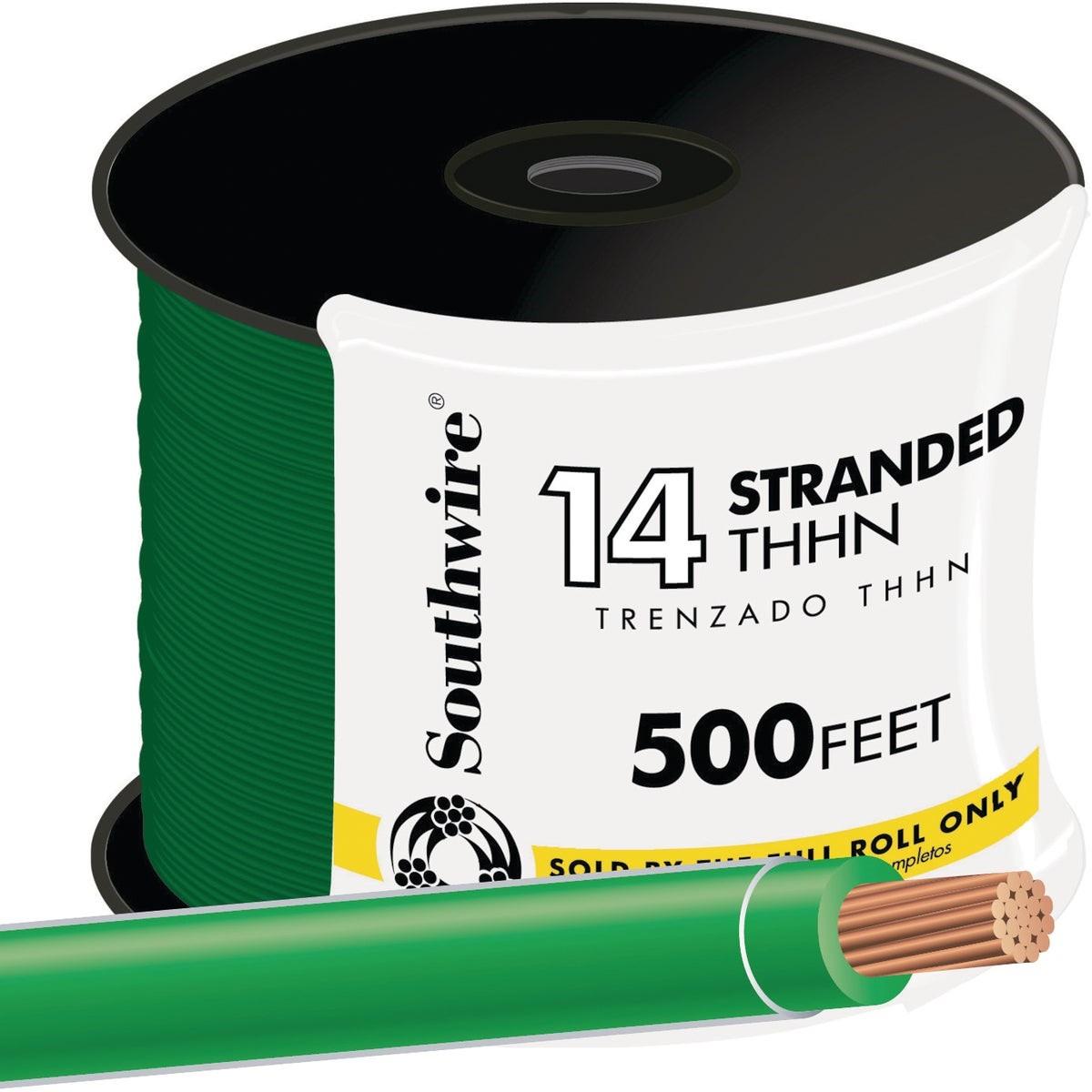

Southwire 22959158 Thhn Wire 14 Awg Stranded Green 500 Ft

Product Description

The SOUTHWIRE 22959158 is a 500-foot roll of 14 AWG stranded green THHN building wire rated for 600 volts and 90 degrees C. It is a general-purpose wire used for power, lighting, and control circuits in residential, commercial, and industrial installations. The conductor is stranded copper, which provides flexibility during pull-through compared to solid wire. A flame-retardant PVC insulation layer and an outer nylon jacket protect the conductor, and the assembly resists oil, gasoline, chemicals, and abrasion. The green jacket identifies this wire as an equipment grounding conductor per standard color-coding practice.

This wire is suited for use in conduit and raceways in a wide range of electrical installations. Green THHN is most commonly pulled as the grounding conductor in branch circuits, feeder runs, and equipment connections where conduit systems are required. It is appropriate for dry and damp locations as allowed by its THHN rating. Electricians will find this 500-foot roll practical for larger rough-in jobs or service work requiring grounding continuity across multiple circuits.

Key Features

• 600-volt rated, 90 degrees C dry and 75 degrees C wet per THHN/THWN standards
• 14 AWG stranded copper conductor for flexibility during conduit installation
• Flame-retardant PVC insulation with nylon jacket for added durability
• Resistant to oil, gasoline, chemicals, and abrasion
• Green jacket for equipment grounding conductor identification
• UL Listed for use in conduit and raceways

Compatibility

Designed for use as an equipment grounding conductor or general-purpose building wire in conduit and raceway systems where 14 AWG THHN wire is specified.

Installation Notes

Installation should be performed by a licensed electrician in accordance with the National Electrical Code (NEC) and applicable local codes. De-energize the circuit and verify with a meter before making any connections. Use appropriate wire-pulling lubricant when routing through conduit to avoid jacket damage, and observe the minimum bend radius for the conduit size being used. Do not exceed the ampacity limits specified in NEC Table 310 for 14 AWG conductors.

Technical Specifications

• Wire Gauge: 14 AWG
• Conductor Type: Stranded Copper
• Insulation: Flame-Retardant PVC with Nylon Jacket
• Voltage Rating: 600 volts
• Temperature Rating: 90 degrees C
• Wire Type: THHN
• Color: Green
• Length: 500 feet
• Unit of Measure: Roll
• Weight: 7.925 pounds
• Listing: UL Listed

Standard Information

• Brand: SOUTHWIRE
• Manufacturer Part Number: 22959158
