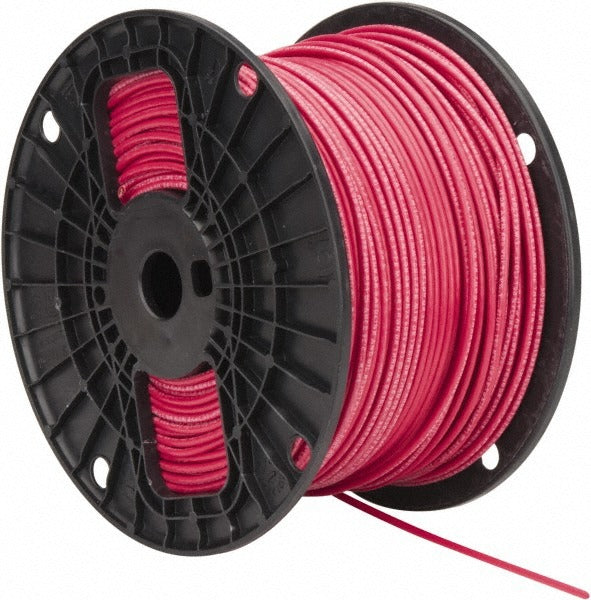

Southwire 22957501 Thhn Thwn 14 Awg 500 Ft Red Building Wire

Product Description

The SOUTHWIRE 22957501 is a THHN/THWN-rated building wire designed for general-purpose electrical wiring in commercial and residential construction. This 14 AWG stranded copper conductor carries a 15-amp rating at up to 600 volts and ships in a 500-foot spool. The stranded 19-strand core improves flexibility compared to solid wire, making it easier to route through conduit runs. A thermoplastic insulation layer is covered by a nylon jacket, providing resistance to abrasion, heat, moisture, oil, and gasoline. The red jacket color supports standard color-coding practices for circuit identification. Licensed electricians install this wire in conduit-fed branch circuits, control wiring, and machine tool wiring applications.

This wire is suited for use in dry, damp, or wet locations where THHN or THWN-rated conductors are specified. The 14 AWG size is commonly used for 15-amp branch circuits in residential panel feeds, lighting circuits, and general-purpose receptacle circuits. Its ratings also qualify it for use as machine tool wire (MTW) under UL 1063, making it appropriate for industrial control panels and equipment wiring in addition to standard building wire applications. The 500-foot spool length accommodates larger pulls or multiple shorter runs from a single package.

Key Features

• 14 AWG stranded copper conductor with 19-strand configuration for improved flexibility in conduit
• Dual THHN/THWN rating covers dry, damp, and wet location installations up to 600 volts
• Thermoplastic insulation with nylon jacket resists abrasion, heat, moisture, oil, and gasoline
• Red jacket color supports circuit color-coding and phase identification
• Qualifies as MTW under UL 1063 for machine tool and industrial control panel wiring
• RoHS compliant and listed to UL 83, UL 1063, CSA, and Federal Specification A-A-59544

Compatibility

Designed as an OEM-style building wire for use in conduit systems where THHN or THWN-rated 14 AWG copper conductors are required by specification or local electrical code.

Installation Notes

Installation must be performed by a licensed electrician in accordance with the National Electrical Code (NEC) and all applicable local codes. De-energize and lock out the circuit or panel before pulling or terminating conductors. THHN/THWN wire requires installation inside an approved conduit or raceway — it is not rated for direct burial or use as open wiring outside a raceway. Pull lubricant is recommended for longer conduit runs to prevent jacket damage and reduce pulling tension.
