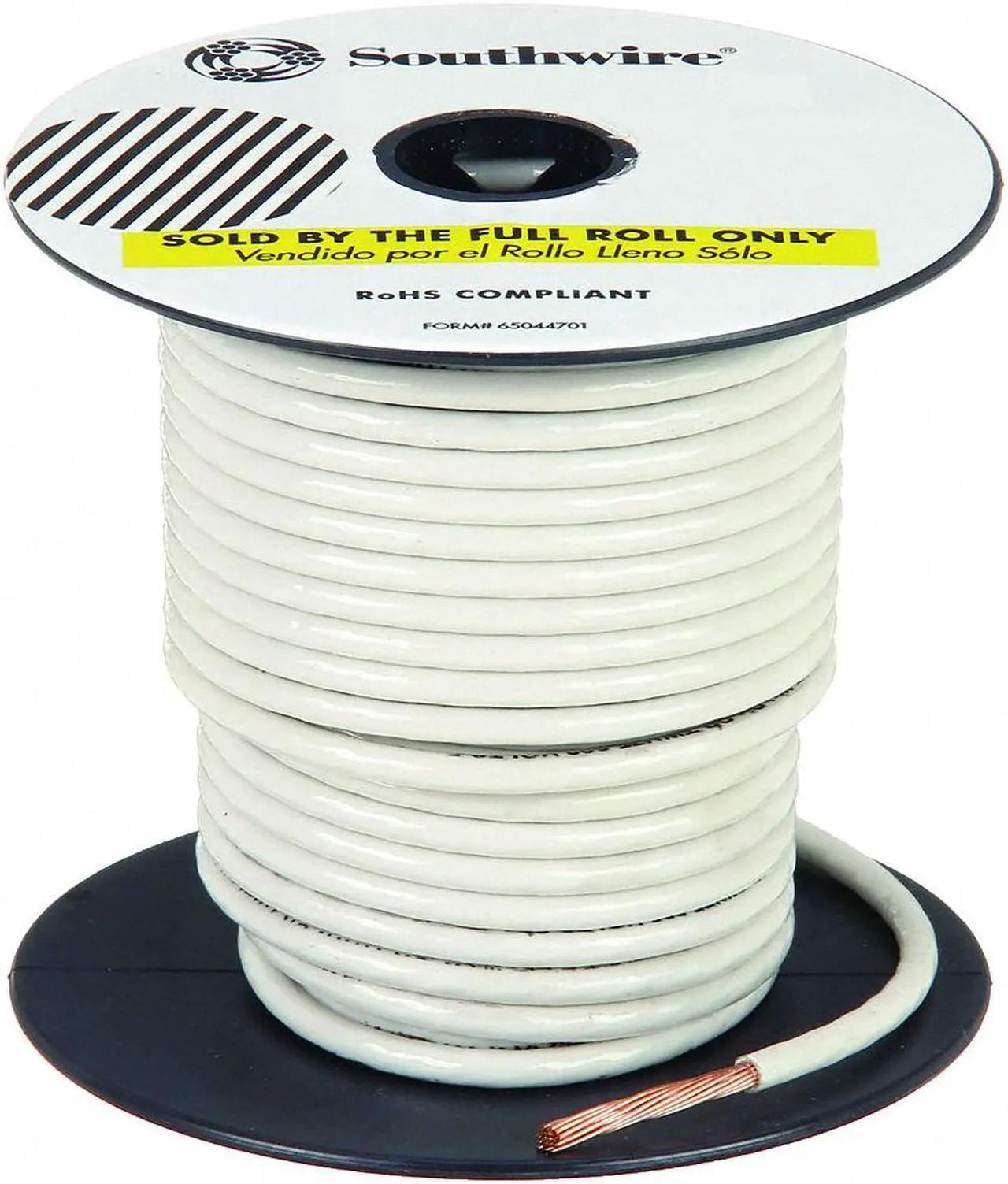

Southwire 22956784 14-19 Sd Cu Thhn-Thwn-Mtw-Awm Ul/c(Ul) 100 Ft

Product Description

The Southwire 22956784 is a THHN copper conductor. It is designed for use in conduit for branch circuits in commercial and industrial applications. This wire meets the standards set by the National Electrical Code, making it suitable for various electrical tasks. The product is a 14 AWG wire featuring nineteen strands and comes in a length of one hundred feet.

• Gasoline and Oil Resistant II
• VW-1 Sizes 14 through 10 AWG
• RoHS Compliant

Product Highlights

This copper conductor wire is ideal for demanding electrical installations. It provides strength and reliability for your wiring needs.

Product Information

Standard Information

• Conductor Size: 14 AWG
• Item Length: 100 ft

Technical Specifications

• Conductor Number: 1
• Cond. Strands: 19
• Diameter Over Conductor: 0.073 inch
• Insulation Thickness: 16 mils
• Jacket Thickness: 5 mils
• Approx. OD: 0.113 inch
• Copper Weight: 12 lbs/1000'
• Packaging Type: Spool
• Voltage Rating: 600 V
• Sheath Color: White
• Conductor Type: Stranded Copper
• Country of Origin: US
• Temperature Rating: 90 deg C
