Southwire 22956758 Thhn Wire 14 Awg Stranded White 500 Ft

Product Description

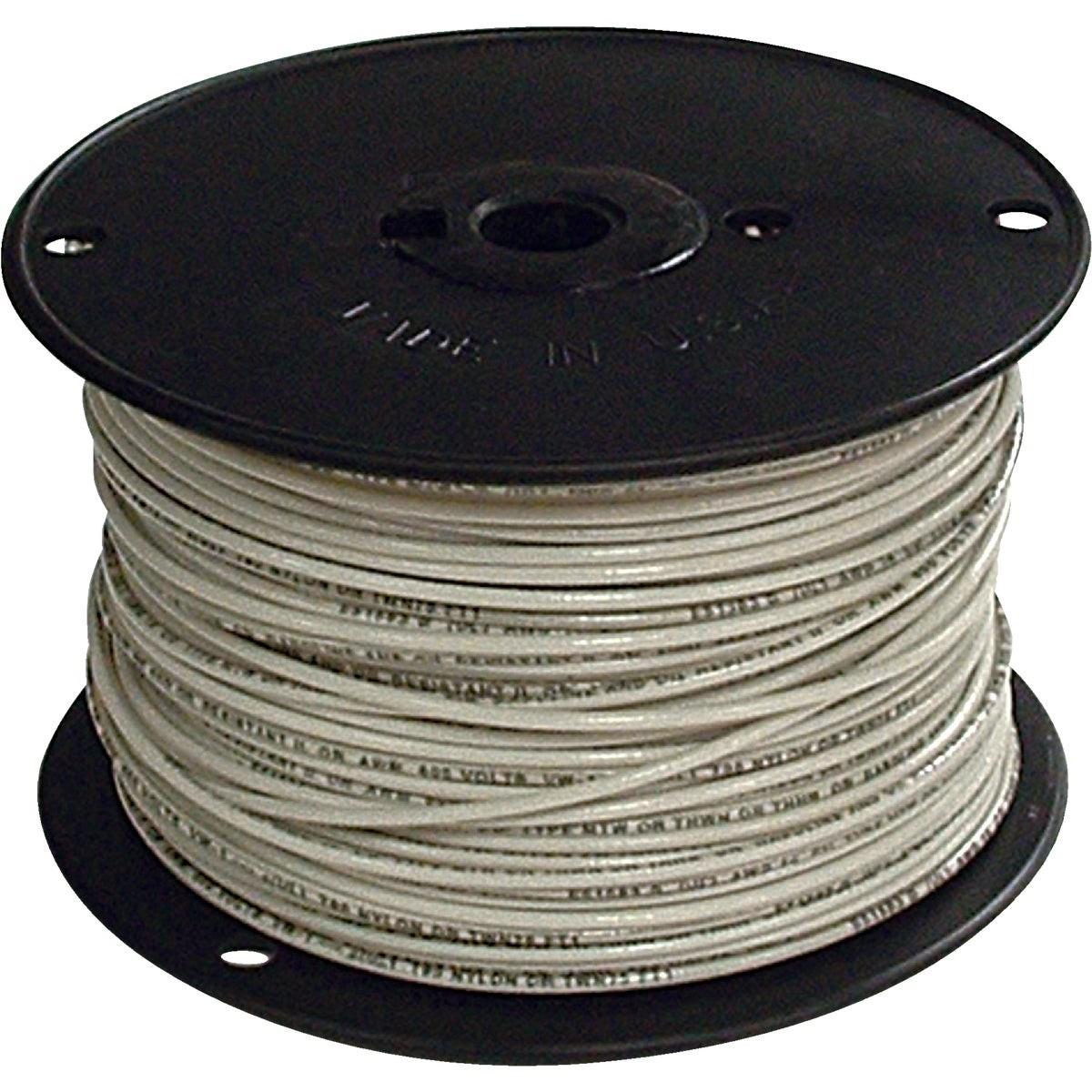

The SOUTHWIRE 22956758 is a 500-foot roll of 14 AWG stranded THHN building wire in white, rated for general-purpose power, lighting, and control wiring in commercial and residential electrical systems. The conductor is stranded copper with a flame-retardant PVC insulation layer and a nylon outer jacket. The THHN rating indicates suitability for use at up to 600 volts and a maximum conductor temperature of 90 degrees C in dry and damp locations. Licensed electricians specify this wire for branch circuits, panel feeders, and control runs where conduit or raceway installation is required.

This wire is intended for installation inside conduit and raceways in both new construction and retrofit electrical work. The stranded construction provides flexibility during pull-through in conduit runs compared to solid conductors, making it a common choice for longer pulls and installations with multiple bends. Typical applications include branch circuit wiring, motor control circuits, and general building power distribution in residential, commercial, and light industrial settings.

Key Features

• 14 AWG stranded copper conductor for flexible conduit installation
• 600-volt rated, suitable for standard branch circuit and control wiring
• 90 degrees C temperature rating for dry and damp locations
• Flame-retardant PVC insulation with nylon jacket for added durability
• Resistant to oil, gasoline, chemicals, and abrasion
• UL listed for code-compliant installations

Compatibility

Designed for use in conduit and raceway systems as a general-purpose THHN building wire suitable for 600-volt power, lighting, and control wiring applications.

Installation Notes

Installation must be performed by a licensed electrician in accordance with the National Electrical Code (NEC) and applicable local codes. De-energize and lock out the circuit before making any connections. Use appropriate conduit fill calculations per NEC Chapter 9 to confirm raceway sizing before pulling wire. Do not exceed the wire's 600-volt or 90 degrees C temperature ratings for the intended application.

Technical Specifications

• Wire Gauge: 14 AWG
• Conductor Type: Stranded Copper
• Wire Color: White
• Length: 500 feet
• Voltage Rating: 600 volts
• Temperature Rating: 90 degrees C
• Insulation: Flame-Retardant PVC with Nylon Jacket
• Wire Standard: THHN
• Unit of Measure: Roll
• Weight: 7.875 pounds
• UPC: 00032886892820

Standard Information

• Brand: SOUTHWIRE
• Manufacturer Part Number: 22956758
