Southwire 20502101 Thhn Thwn 2 Awg 95A Building Wire

Product Description

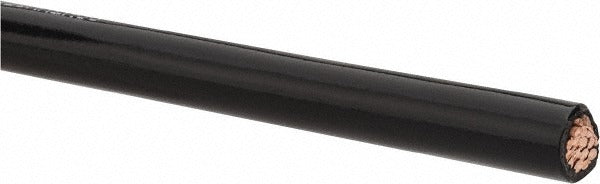

The SOUTHWIRE 20502101 is a 2 AWG stranded copper THHN/THWN building wire rated for 95 amps at 600 volts. It features a thermoplastic insulation layer with a nylon jacket and is constructed with 19 strands for flexibility during pull-through in conduit. The maximum operating temperature is 194 degrees F. Electricians use this wire for branch circuit wiring, feeder runs, and general-purpose power distribution in commercial and residential construction. The single-conductor configuration and nylon jacket make it well suited for conduit installations where resistance to abrasion, heat, moisture, and oil exposure is required.

This wire is appropriate for use in dry, damp, and wet locations in both residential and commercial electrical systems. Common applications include service entrance feeders, panel-to-subpanel runs, motor branch circuits, and general-purpose branch wiring pulled through metallic or non-metallic conduit. The black jacket color is standard for use as an ungrounded (hot) conductor in single- and three-phase systems. It is sold in 1-foot increments with a 250-foot minimum cut length from a 500-foot coil.

Key Features

• 2 AWG stranded copper conductor with 19-strand construction for improved flexibility
• Rated 95 amps at 600 volts for heavy branch circuit and feeder applications
• Thermoplastic insulation with nylon jacket for durability in conduit pulls
• Maximum operating temperature of 194 degrees F
• Resistant to abrasion, gasoline, heat, moisture, oil, and sunlight
• Meets UL 83, UL 1063 (MTW), CSA, RoHS, and Federal Specification A-A-59544

Compatibility

Designed for use as a general-purpose THHN/THWN stranded building wire in conduit systems rated up to 600 volts in residential and commercial electrical installations.

Installation Notes

Installation must be performed by a licensed electrician in accordance with NFPA 70 (National Electrical Code) and applicable local codes. De-energize and lock out the circuit before making any terminations or splices. Use appropriate conduit fill calculations per NEC Article 310 to confirm conduit sizing before pulling wire. Avoid sharp bends and edges during pulls to protect the nylon jacket and maintain insulation integrity.
