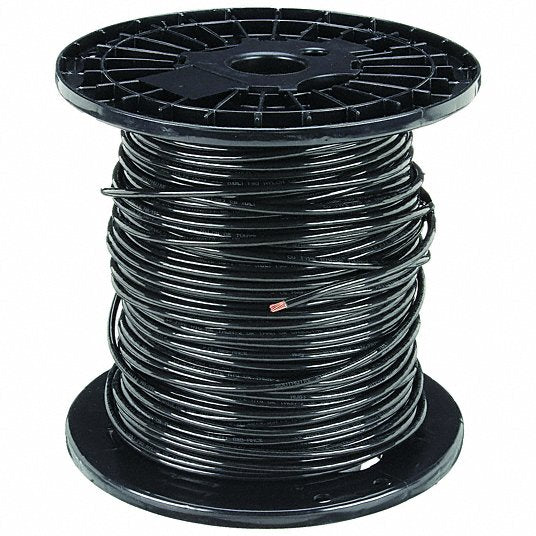

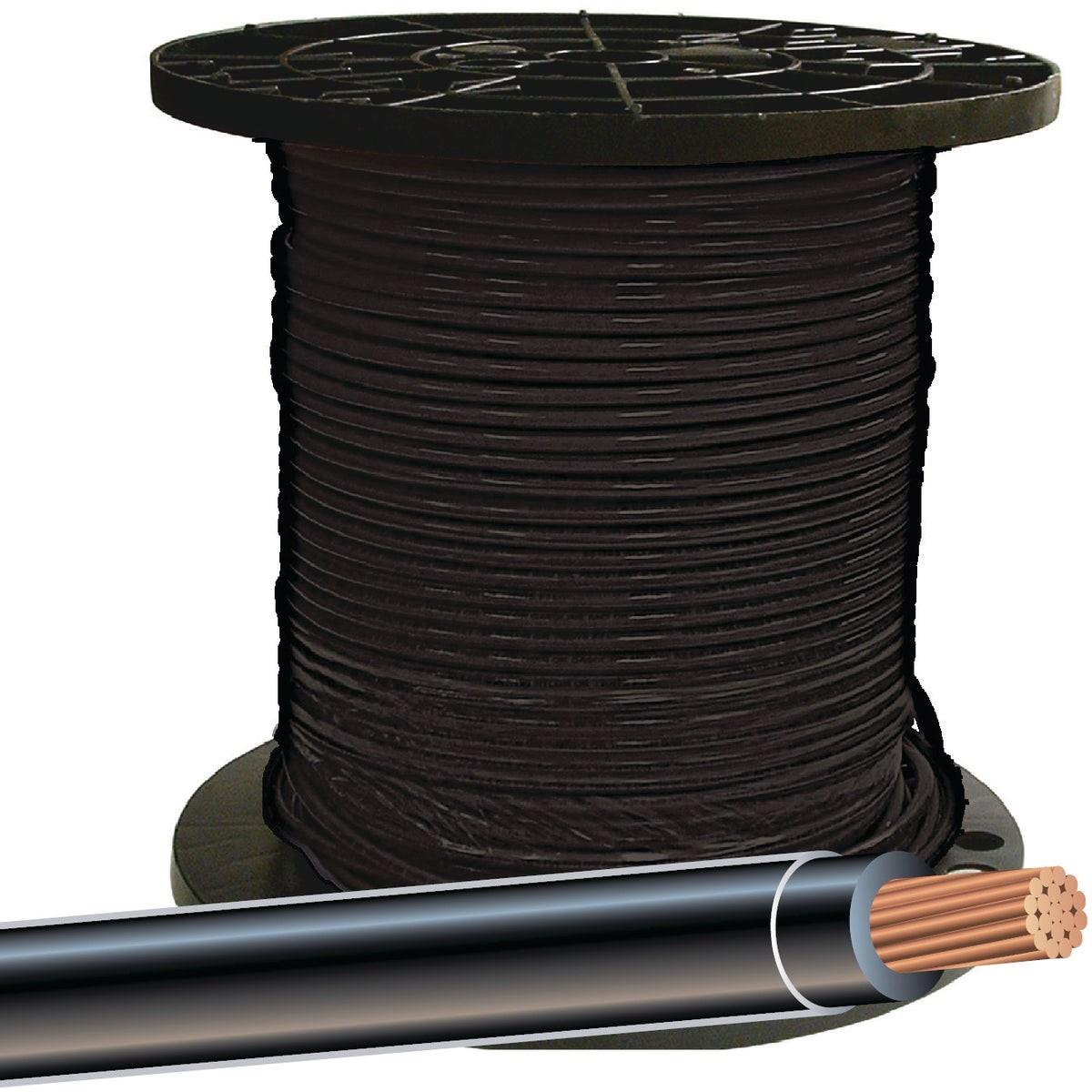

Southwire 20493301 500 ft 6 AWG stranded THHN electrical wire 600 volts

Product Description

The Southwire 20493301 is a 6 AWG stranded copper THHN/THWN building wire, supplied in a 500 ft spool. Designed for general-use lighting and low-voltage applications, this wire features a durable nylon sheath over PVC insulation, offering protection against moisture, abrasion, and chemicals. Rated for 600V, it is suitable for dry locations up to 194°F and wet locations up to 167°F, ideal for indoor and outdoor power distribution.

• Flexible stranded copper conductors handle higher current loads and allow for installation in tight spaces.
• THHN (thermoplastic high-heat-resistant nylon-coated) cable with PVC insulation and nylon jacket for enhanced durability and heat resistance.
• Rated for 600V and suitable for both dry (up to 194°F) and wet (up to 167°F) electrical environments.

Product Highlights

6 AWG stranded copper THHN/THWN wire, 600V rated, 500 ft length, suitable for wet/dry locations, and features PVC insulation with a nylon jacket.

Product Information

Standard Information

• Brand: SOUTHWIRE
• Manufacturer Part Number: 20493301
• Country of Origin: US

Technical Specifications

• Manufacturer: Southwire
• Brand: Southwire
• MPN: 20493301
• SKU: CCI20493301
• Color: Black
• Voltage: 600 Volts
• National Stock Number: 6145-00-290-3829
• Model Number: 20493301
• Part Number: 20493301
• Package Quantity: 1
• Conductor Construction: 6 AWG 1C 19S
• Conductor Size: 6 AWG
• Conductor Number: 1
• Conductor Strands: 19
• Diameter Over Conductor (in): 0.179
• Insulation Thickness (mils): 31
• Jacket Thickness (mils): 6
• Approximate Outer Diameter (in): 0.253
• Copper Weight (lbs/1000 ft): 81
• Approximate Weight (lbs/1000 ft): 95
• Conductor Type: Sizes #8 AWG - 3/0 AWG use a stranded combination-unilay soft drawn annealed bare copper per ASTM B787. Sizes 4/0 AWG and larger use a stranded compressed annealed bare copper per ASTM B8
• Insulation Type: Heat and moisture resistant PVC
• Sheath Type: Nylon jacket utilizing SIMpull® Technology
• Tensile Strength: 250 Megapascals
• Cable Type: THHN
• Grade Rating: Industrial
• Length: 500 ft
• Conductor Material: Annealed Copper
• Insulation Material: Nylon; PVC
• Temperature Rating - Maximum Dry: 194 °F
• Temperature Rating - Maximum Wet: 167 °F
• Series: Simpull®
• Trade Designation: THHN
• Fire Resistance Rating: Not Rated
• Conductor Design: Stranded
• Minimum Bend Radius: 1 in
• Standards: UL E34382
• Packaging: Spool
