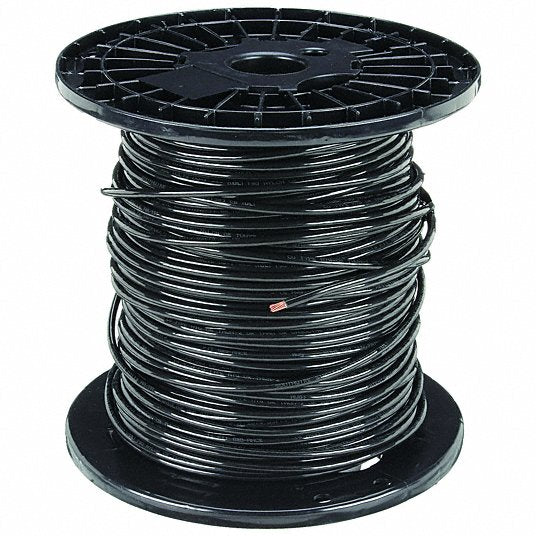

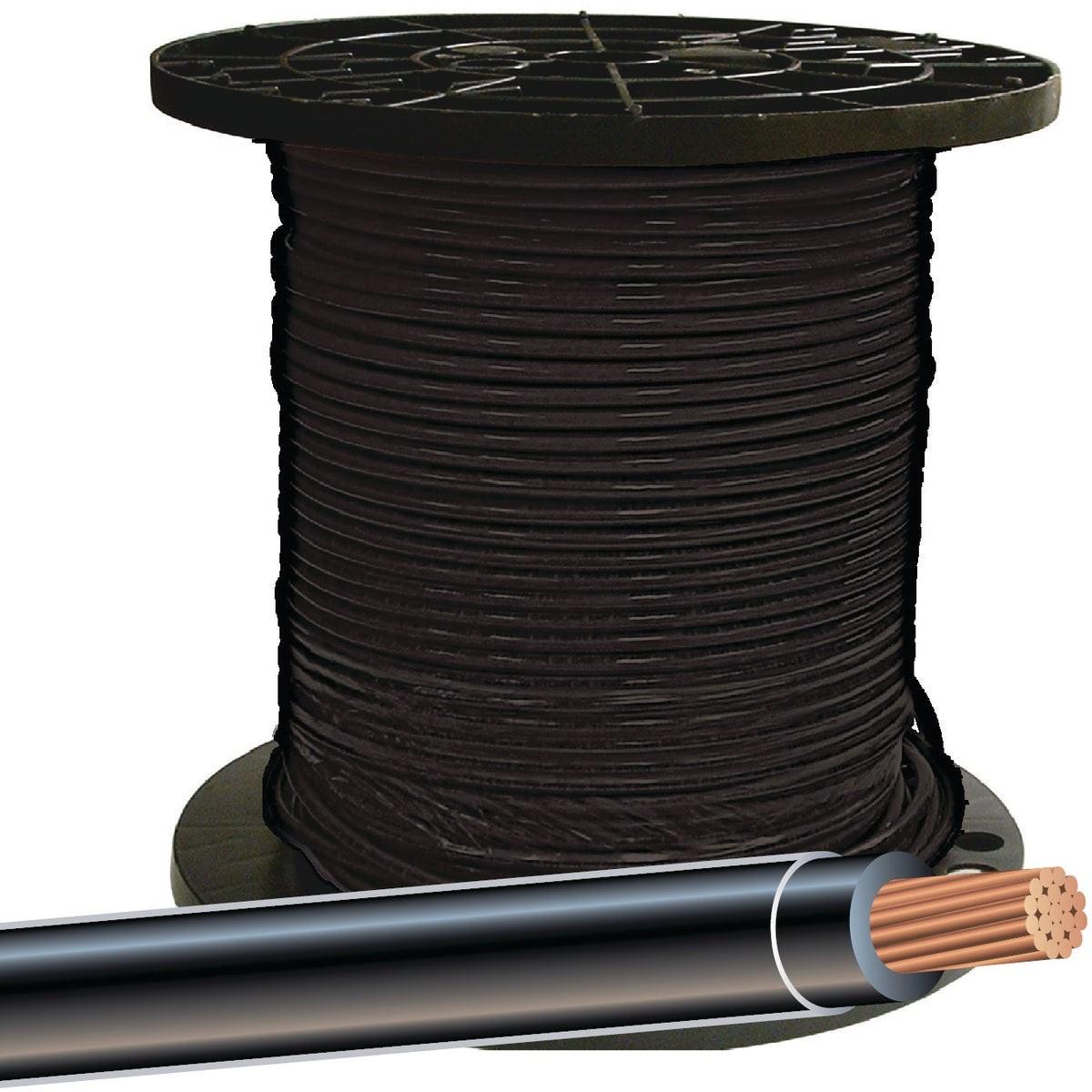

Southwire 20488312 8 AWG Stranded THHN Electrical Wire 600V 500 ft

Product Description

The SOUTHWIRE 20488312 is an 8 AWG stranded THHN electrical wire, 500 feet in length, designed for various electrical applications. This 600V building wire features a copper conductor with PVC insulation and a nylon jacket, providing protection against abrasion and moisture. Its stranded construction offers flexibility, making it suitable for residential, commercial, and industrial use in conduit and cable trays, as well as for outlets, switches, and other loads.

• 8 AWG gauge, 500 ft. length, 600V AC rated for diverse electrical systems.
• Stranded copper conductor with PVC insulation and nylon jacket for flexibility and protection.
• Suitable for residential, commercial, and industrial applications, meeting UL standards.

Product Highlights

Durable 8 AWG stranded copper wire with 600V rating, ideal for diverse building wiring applications.

Product Information

Standard Information

• Brand: SOUTHWIRE
• Manufacturer Part Number: 20488312
• Country of Origin: US

Technical Specifications

• MPN: 20488312
• UPC Code: 00032886231001
• Manufacturer: Southwire
• Brand: Southwire
• Unit of Measure: Roll
• Country of Origin: US
• Wire Gauge: 8 AWG
• Length: 500 Ft.
• Wire Type: THHN Electrical Wire
• Conductor Design: Stranded
• Product Type: Building Wire
• Voltage: 600V AC
• Max Amperage: 40 at 60 deg C, 50 at 75 deg C, 55 at 90 deg C
• Packaging: Plastic Spool
• Standards: UL,E34382
• Number of Strands: 19
• Application Environment: Wet or Dry Locations (Below 90°C), Locations Exposed to Oil (Below 75°C)
• Temperature Rating - Dry: 140 °F
• Temperature Rating - Wet: 167 °F
• Jacket Material: Nylon
• Insulation Material: PVC
• Nominal Outside Diameter: 0.21 in
• Number of Conductors: 1
• Diameter Over Conductor: 0.143 in
• Insulation Thickness: 31 mils
• Jacket Thickness: 6 mils
• Copper Weight per 1000 ft: 50 lbs
• Approximate Weight per 1000 ft: 63 lbs
• Conductor Construction Details: Sizes #8 AWG - 3/0 AWG use a stranded combination-unilay soft drawn annealed bare copper per ASTM B787
• Insulation Construction Details: Heat and moisture resistant PVC
• Jacket Construction Details: Nylon jacket utilizing SIMpull® Technology
• Series: Simpull®
• Conductor Material: Copper
• Minimum Bend Radius: 7/8 in
• Fire Resistance Rating: Not Rated
