Southwire 202 Watertight Hub 3/4 Inch Rigid Imc Conduit

Product Description

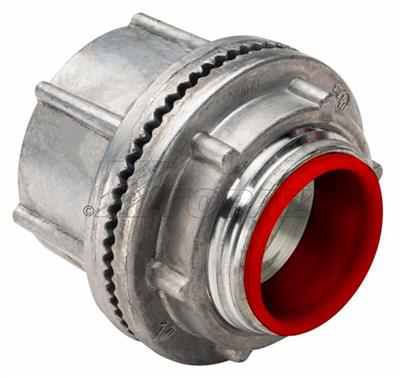

The SOUTHWIRE 202 is a 3/4-inch watertight hub designed to connect rigid or IMC conduit to standard knockouts in electrical boxes and enclosures. Built from zinc die cast, this hub resists corrosion and blocks moisture, dust, and other contaminants from entering the conduit system. An oversized locknut distributes clamping force evenly to resist loosening from vibration. This fitting is installed by licensed electricians on commercial, industrial, and residential projects where sealed conduit entries are required by code.

This hub is suited for applications where the enclosure or box must maintain a watertight or dust-tight seal at conduit entry points. Typical installations include outdoor electrical panels, junction boxes in wet or damp locations, and industrial enclosures exposed to washdown or particulate environments. The 3/4-inch trade size accommodates standard rigid and IMC conduit of that diameter. It is rated for use in NEMA 2, 3R, 4, 4X, 5, 12, and 13 enclosure environments, making it appropriate across a wide range of indoor and outdoor service conditions.

Key Features

• Zinc die cast construction provides corrosion resistance in wet and industrial environments
• Oversized locknut resists vibration-induced loosening
• Insulated throat protects conductors from abrasion at the conduit entry point
• Compatible with rigid and IMC conduit at 3/4-inch trade size
• UL listed and approved for NEMA 2, 3R, 4, 4X, 5, 12, and 13 enclosures

Compatibility

Designed as an OEM-style watertight hub for use with 3/4-inch rigid and IMC conduit connecting to standard knockouts in electrical boxes and enclosures rated NEMA 2, 3R, 4, 4X, 5, 12, and 13.

Installation Notes

Installation is performed by a licensed electrician. De-energize and lock out the panel or enclosure before beginning work. Thread the hub into the knockout opening and tighten the locknut securely to achieve the rated watertight seal. Follow NEC requirements for conduit fill, grounding continuity, and fitting torque when installing in listed enclosures.

Technical Specifications

• Trade Size: 3/4 inches
• Material: Zinc Die Cast
• Conduit Type Compatibility: Rigid, IMC
• NEMA Ratings: 2, 3R, 4, 4X, 5, 12, 13
• Listing: UL Listed
• UPC: 751338115606

Standard Information

• Brand: SOUTHWIRE
• Manufacturer Part Number: 202
