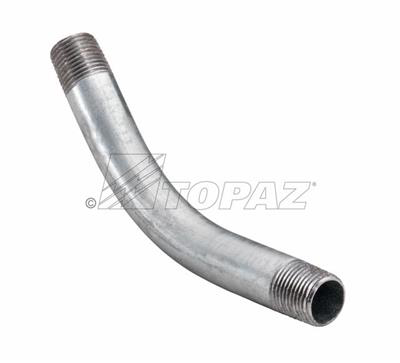

Southwire 18 Rigid 45 Degree Conduit Elbow 3 in

Product Description

The SOUTHWIRE 18 is a 3-inch rigid 45-degree conduit elbow fabricated from galvanized steel for use in electrical conduit installations. It is precision manufactured to deliver smooth interior and exterior surfaces, free of defects, ensuring a secure, low-resistance connection to rigid conduit. The galvanized steel construction provides low conductivity and high corrosion resistance, making it suitable for demanding environments. Licensed electricians and electrical contractors install this fitting as part of rigid metal conduit systems in commercial, industrial, and residential applications.

This elbow is used wherever a 45-degree direction change is required in a rigid metal conduit run. It is appropriate for both indoor and outdoor installations where corrosion resistance and mechanical protection are priorities. The 3-inch trade size accommodates larger conduit runs common in commercial and industrial electrical systems. Hot-dip galvanized finish meets applicable federal specifications for corrosion performance in harsh environments.

Key Features

• Fabricated from galvanized steel for high corrosion resistance and low conductivity
• Defect-free interior and exterior surfaces ensure secure conduit connections
• 45-degree bend angle for directional changes in rigid conduit runs
• 3-inch trade size suits larger commercial and industrial conduit systems
• UL listed and hot-dip galvanized (HDG) finish
• Meets Federal Specification WW-C-563

Compatibility

Designed for use with 3-inch rigid metal conduit systems. The product line is available in sizes from 1/2 inch to 6 inches for broader rigid conduit applications.

Installation Notes

Installation should be performed by a licensed electrician in accordance with the National Electrical Code (NEC) and applicable local codes. De-energize all circuits in the conduit run before beginning work. Use appropriate threading tools and conduit wrenches rated for rigid metal conduit to ensure proper joint engagement. Inspect threads on both the fitting and the conduit for damage before assembly to maintain a secure, weathertight connection.

Technical Specifications

• Trade Size: 3 inches
• Bend Angle: 45 degrees
• Material: Galvanized steel
• Finish: Hot-dip galvanized (HDG)
• Listing: UL listed
• Standard: Federal Specification WW-C-563
• UPC: 751338333703

Standard Information

• Brand: SOUTHWIRE
• Manufacturer Part Number: 18
