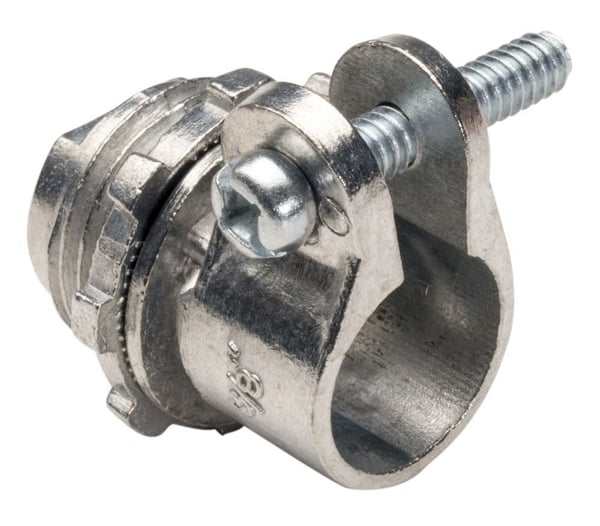

Southwire 152 Straight Bx-flex Connector 3/4 in Die Cast Zinc

Product Description

The SOUTHWIRE 152 is a straight squeeze-type BX-Flex connector rated for 3/4 inch trade size conduit. Fabricated from die cast zinc, this connector provides corrosion resistance and durable mechanical integrity in dry location installations. It is designed to join flexible metallic conduit to EMT or to connect flexible metal conduit and steel armored cable (AC cable) to steel outlet boxes, load centers, and other metal enclosures. Cable opening range is 0.88 to 1.11 inches, accommodating typical 3/4 inch BX-Flex cable diameters. The single-screw squeeze assembly allows for fast, secure termination with standard hand tools.

This connector is suited for residential and commercial electrical installations where flexible metal conduit or armored cable must terminate at a metal enclosure in a dry location. Common applications include motor connections, HVAC equipment whips, and panel terminations where a straight connector profile is required. The threaded by squeeze connection type interfaces with standard EMT knockouts on enclosures and boxes. For dry locations only — not rated for wet or damp environments.

Key Features

• Squeeze-type straight construction for single-screw installation in 3/4 inch trade size
• Die cast zinc body provides natural corrosion resistance and mechanical durability
• Cable opening range of 0.88 to 1.11 inches fits standard 3/4 inch BX-Flex and AC cable
• Threaded by squeeze connection type for secure EMT and enclosure termination
• UL Listed and CSA Certified; meets UL 514B, NEMA/ANSI FB-1, and applicable military and federal specifications
• Overall length of 1.58 inches for compact installation in tight enclosure knockouts

Compatibility

Designed for use with BX-Flex flexible metallic conduit and steel armored cable (AC cable) in 3/4 inch trade size, connecting to steel outlet boxes, load centers, and other metal enclosures in dry locations.

Installation Notes

Installation should be performed by a licensed electrician in accordance with the National Electrical Code (NEC) and applicable local codes. De-energize the circuit and verify absence of voltage before beginning any conduit termination work. Ensure the knockout size matches the 3/4 inch trade size connector before insertion, and tighten the screw assembly securely to maintain ground continuity through the connector body. This connector is approved for dry locations only — do not install in wet or damp rated applications.

Technical Specifications

• Trade Size: 3/4 inch
• Type: Straight
• Cable Type: BX-Flex
• Connection Type: Threaded x Squeeze
• Cable Opening Range: 0.88 to 1.11 inches
• Material: Die Cast Zinc
• Length: 1.58 inches
• Location Rating: Dry locations only
• Standards and Approvals: UL Listed, CSA Certified, UL 514B, UL File No. E148716, NEMA/ANSI FB-1, US Federal Specification A-A-50552, Military Specification W-F-406D/W-F-406E/W-F-408D/W-S-610D

Standard Information

• Brand: SOUTHWIRE
• Manufacturer Part Number: 152
