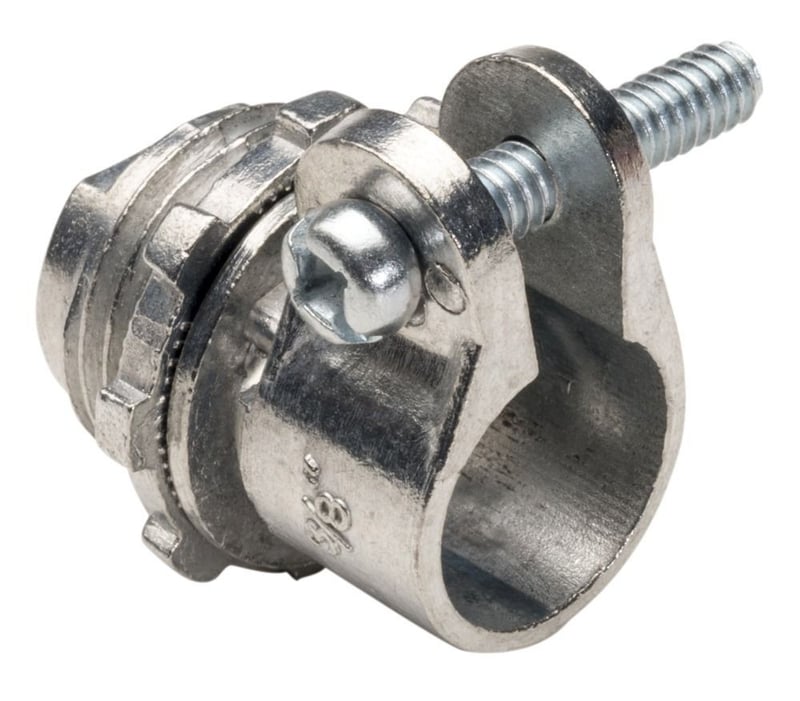

Southwire 151 Topaz Straight Connector (1/2 in Trade)

Product Description

The Southwire 151 Topaz straight connector is a squeeze-type straight connector made of die cast zinc for joining flexible metal conduit (BX-Flex) to EMT and for connecting flexible metal conduit or armored (steel AC) cable to electrical boxes or metal enclosures in dry locations. The single-screw assembly accommodates conduit sizes from 3/8 to 2 in and provides a cable opening range of 0.74 to 0.95 in. The product is UL listed.

• Squeeze-type straight construction in corrosion-resistant die cast zinc
• Connects BX-Flex or armored (steel AC) cable to EMT, outlet boxes, load centers, and metal enclosures
• Single-screw assembly for conduit sizes 3/8 to 2 in; cable openings 0.74 to 0.95 in; UL and CSA approvals

Product Highlights

Die cast zinc straight connector for BX-Flex to EMT connections; trade size 1/2 in; cable opening 0.74�0.95 in; for dry locations; UL listed

Product Information

Standard Information

• Brand: SOUTHWIRE
• Manufacturer Part Number: 151

Technical Specifications

• Brand: Southwire
• Manufacturer Part Number: 151
• UPC: 751338110007
• Trade Size: 1/2 in
• Connector Type: Straight
• Application: Connect flexible metallic conduit (BX-Flex) and steel AC cable to steel outlet boxes, load centers, or other metal enclosures
• Certifications: CSA Certified; UL Listed; UL 514B; UL File No. E148716; US Federal Specification A-A-50552; NEMA/ANSI FB-1; Military Specification W-F-406D/W-F-406E/W-F-408D/W-S-610D
• Cable Type: BX-Flex; armored (steel AC) cable
• Connection Type: Threaded x Squeeze (single screw assembly)
• Dimensions: 1.47 in L
• Material: Die cast zinc
• Cable Opening Range: 0.74 to 0.95 in
• Location Rating: Dry locations only
