Southwire 144R Service Entrance Cable Connector 1-1/4 inches

Product Description

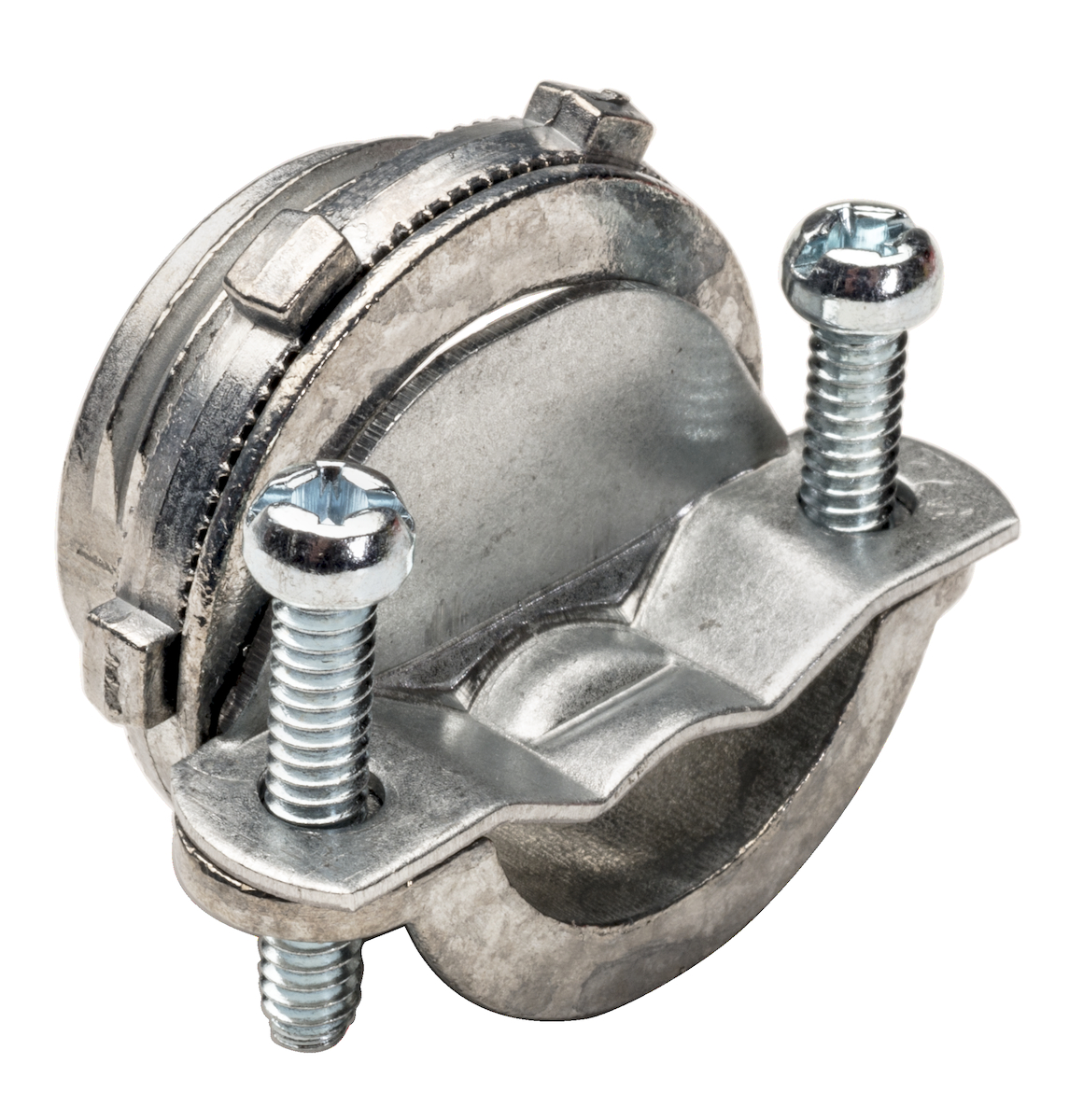

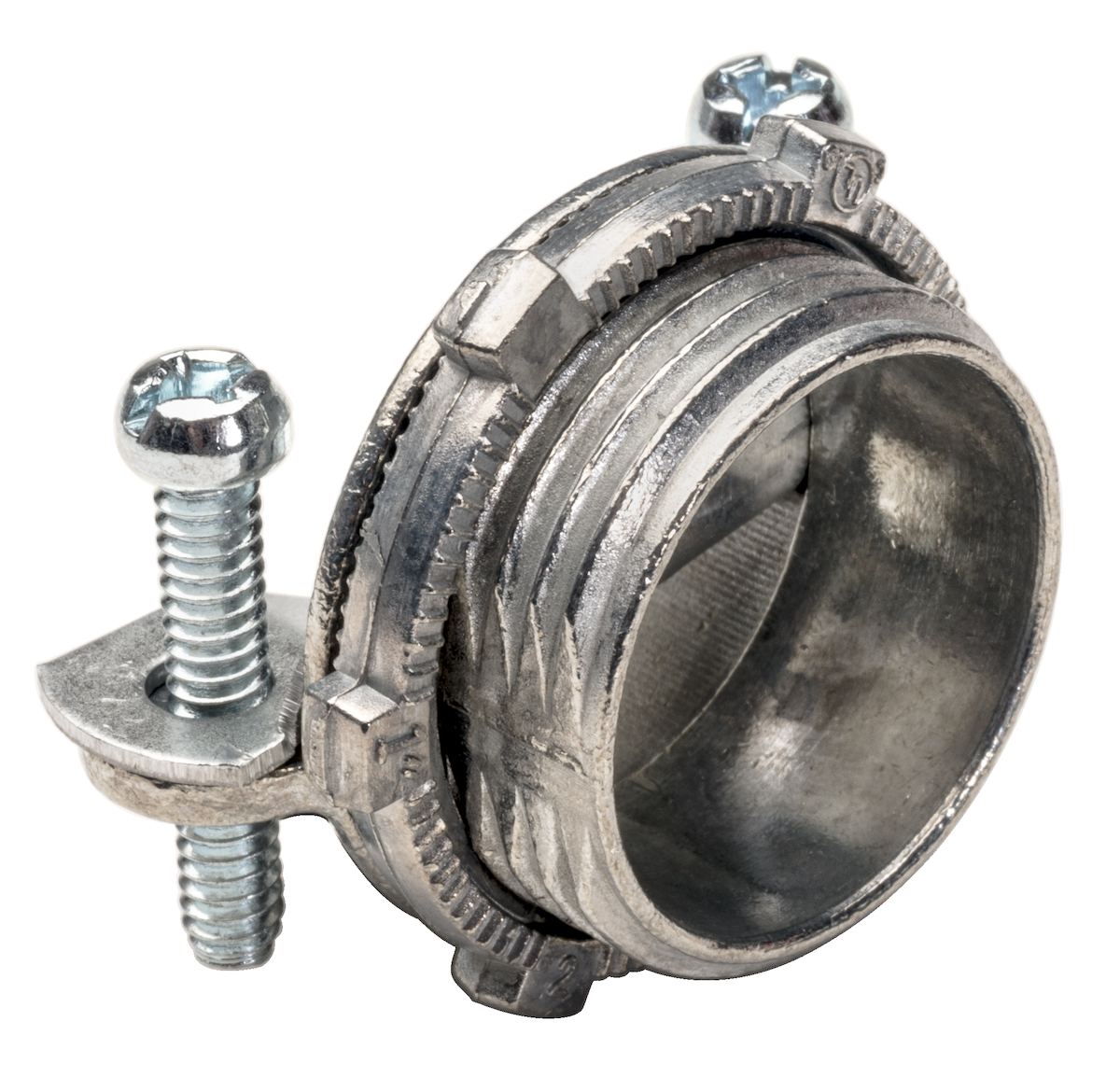

The SOUTHWIRE 144R is a service entrance cable connector. This connector is designed for indoor use in dry locations to connect non-metallic sheathed cable to a steel outlet box or other metal enclosure. It features a two-screw clamp design and is constructed from die-cast zinc.

• UL and CSA approved
• Constructed from die-cast zinc
• Features a two-screw clamp

Product Highlights

Connects non-metallic sheathed cable to a steel outlet box. Features a two-screw clamp design and is constructed from die-cast zinc.

Product Information

Standard Information

• Brand: SOUTHWIRE
• Manufacturer Part Number: 144R

Technical Specifications

• Approval: UL, CSA
• Cable Size: (2) 10 AWG, (2) 8 AWG, (2) 6 AWG, (2) 4 AWG (Service Entrance)/(3) 8 AWG, (3) 6 AWG, (3) 4 AWG, (3) 2 AWG (Non-Metallic)
• Manufacturer Name: Southwire
• Material: Die-Cast Zinc
• Product UPC: 751338109605
• Thread Length: 0.66 Inch
• Type: (2) Screw, Clamp
• Used On: Non-Metallic Cable, Service Entrance Cable
• Size: 1-1/4"
