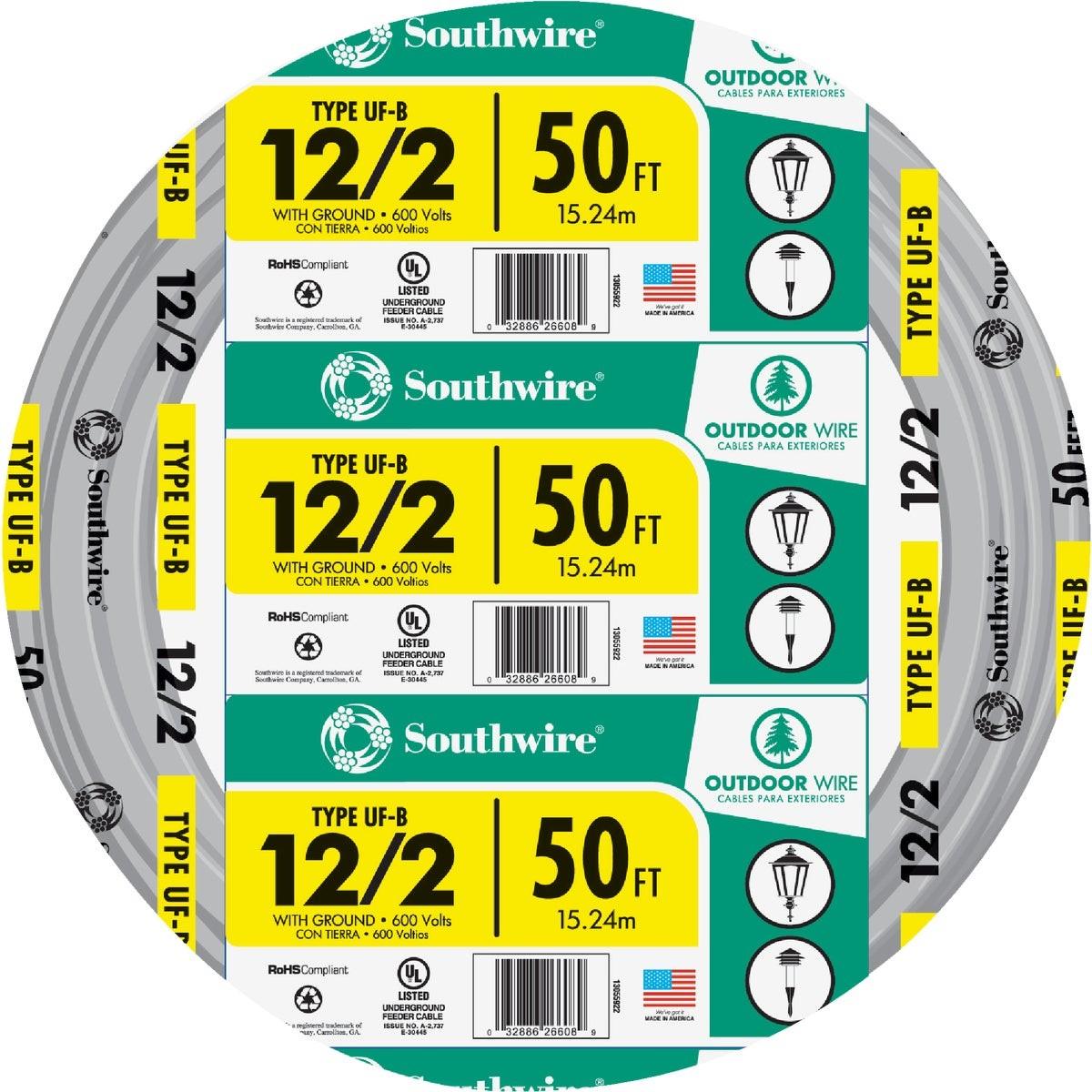

Southwire 13055922 Ufw/g Wire 12 Awg 2-conductor 50 Ft

Product Description

The SOUTHWIRE 13055922 is a 50-foot roll of 12 AWG 2-conductor UFW/G underground feeder and branch-circuit cable rated for direct earth burial and wet or corrosive indoor locations. The insulation and jacket resist acids, alkalis, corrosive fumes, chemicals, lubricants, and groundwater without corroding or softening. The outer sheath is sunlight-resistant and will not support combustion. Licensed electricians install this cable in residential and light commercial branch circuit runs where the conductor must transition from an interior panel to an exterior or below-grade application.

UFW/G cable is commonly used in branch circuits supplying outdoor receptacles, landscape lighting feeds, outbuildings, detached garages, and similar loads requiring direct burial or wet-location routing. The 12 AWG conductor sizing suits 20-amp branch circuit applications. This 50-foot roll is well suited to shorter exterior runs from a main or sub-panel to a single load point.

Key Features

• Rated for direct earth burial as underground feeder cable
• Suitable for wet and corrosive indoor locations
• Resistant to acids, alkalis, chemicals, lubricants, and groundwater
• Noncorroding, sunlight-resistant jacket
• Will not support combustion
• UL listed

Compatibility

Designed as a standard UFW/G underground feeder cable for use in direct-burial branch circuit applications per applicable NEC requirements for underground wiring methods.

Installation Notes

Installation must be performed by a licensed electrician in accordance with the National Electrical Code (NEC) and local authority having jurisdiction. De-energize and lock out the circuit at the panel before making any connections. Observe NEC-required minimum burial depths for underground feeder cable, which vary based on circuit voltage, conduit type, and location. Do not use this cable as a substitute for service entrance cable or in applications exceeding its listed rating.

Technical Specifications

• Conductor Size: 12 AWG
• Number of Conductors: 2
• Cable Type: UFW/G Underground Feeder
• Length: 50 feet
• Weight: 4.65 pounds
• Listing: UL Listed

Standard Information

• Brand: SOUTHWIRE
• Manufacturer Part Number: 13055922
