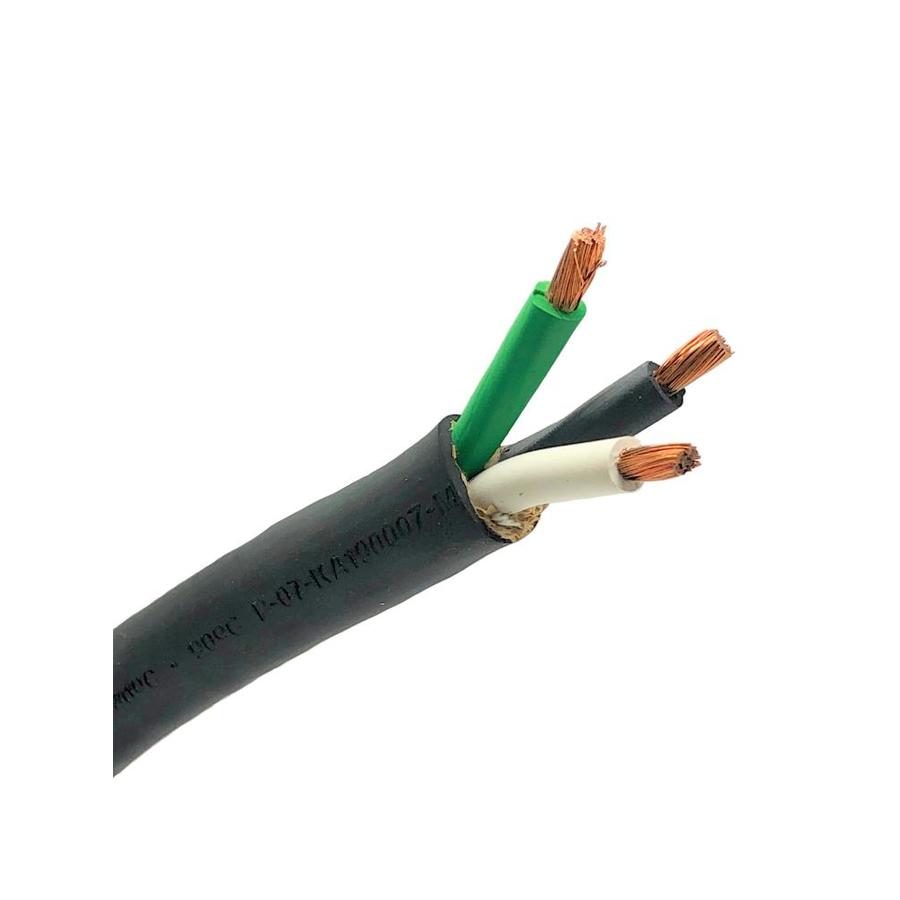

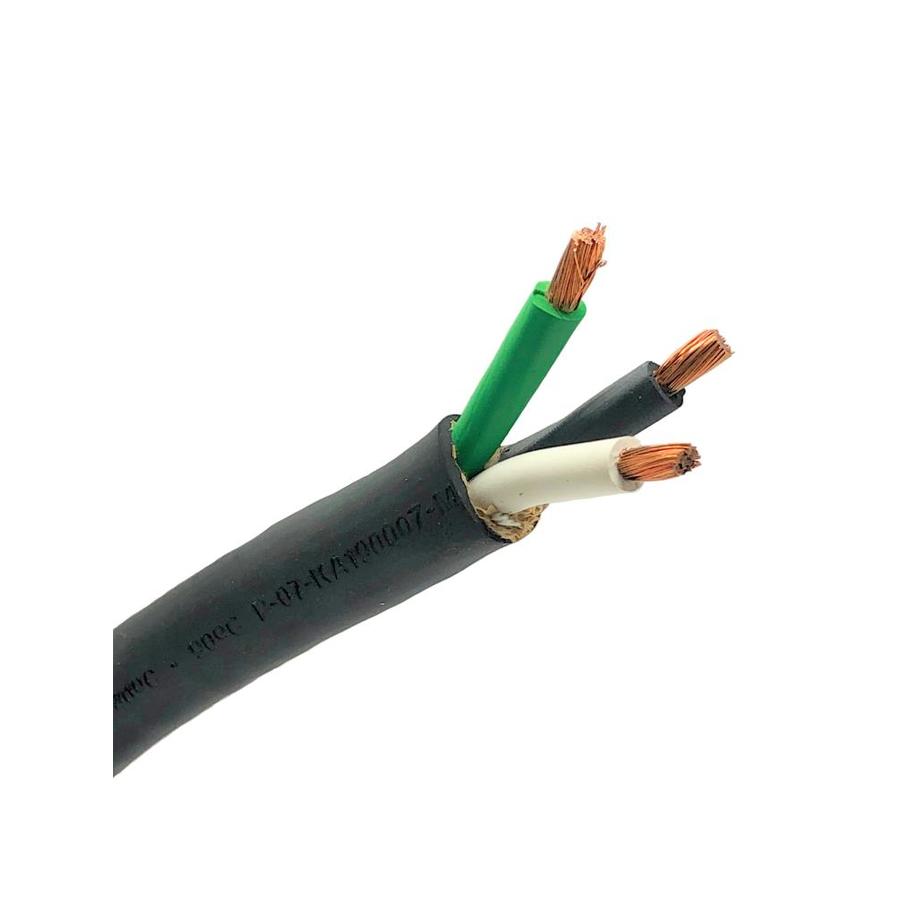

Southwire 12/3 SOOW Cord Royal Cord 600V 12 AWG

Product Description

The SOUTHWIRE 12/3 SOOW CORD is a 600V flexible cord designed for extra hard usage in industrial and heavy-duty applications. This 12 AWG cord features 3 conductors of Class K stranded bare copper, insulated with EPDM rubber and protected by a flexible CPE jacket. It is rated for temperatures from -40°C to 90°C and is resistant to water, oil, and weather, making it suitable for battery chargers, portable lights, and mining applications.

• UL/CSA listed for safety and compliance
• Rated for temperatures from -40°C to 90°C
• Resistant to water, oil, and weather for durability

Product Highlights

Flexible 600V cord for industrial equipment and heavy tools, featuring EPDM insulation and CPE jacket for durability.

Product Information

Standard Information

• Brand: SOUTHWIRE
• Manufacturer Part Number: 12/3 SOOW CORD

Technical Specifications

• Conductor Size: 12 AWG
• Number of Conductors: 3
• Number of Strands per Conductor: 65
• Nominal Outer Diameter (mm): 15.44
• Nominal Weight (kg/km): 336
• Ampacity: 25
• Nominal DC Resistance (Conductor): 1.61
• Conductor Colors: BLACK/WHITE/GREEN
• Outer Jacket Color: BLACK
• Conductor Material: Class K stranded bare copper per ASTM B-174
• Insulation Material: EPDM
• Jacket Material: Black CPE
• Standards: UL 62, CSA Standard 22.2 No. 49, NEC 400, NEC 501.140 Class I Division 2, Passes CSA FT2 Flame Test, MSHA, Federal and Military Specification JC-580B, RoHS-2 (European Directive 2011/65/EU)
