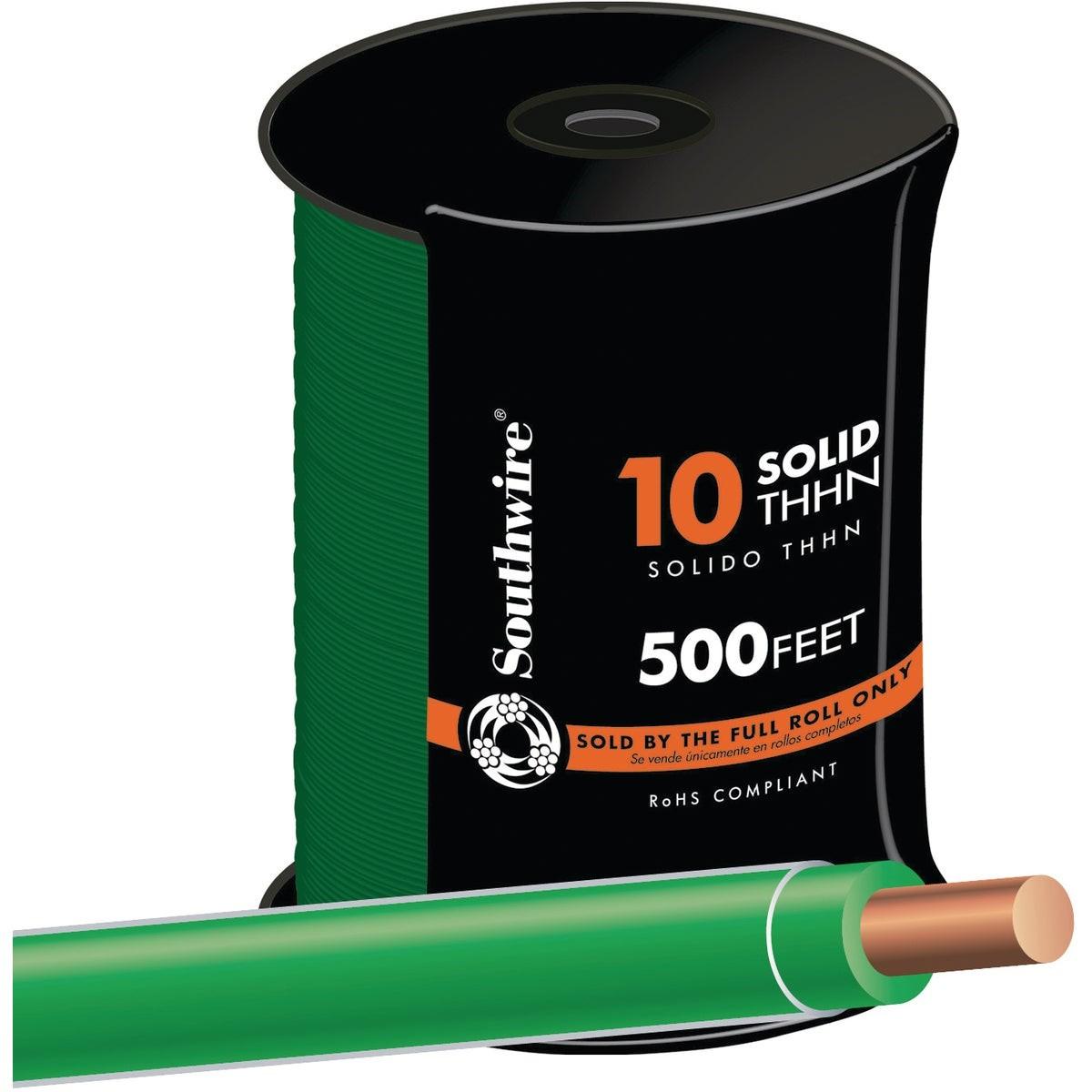

Southwire 11599857 10 Awg Solid Green Thhn Wire 500 Ft

Product Description

The SOUTHWIRE 11599857 is a 500-foot roll of 10 AWG solid copper THHN building wire in green insulation. Rated at 600 volts and 90 degrees C, it is designed for general-purpose power, lighting, and control wiring in commercial and residential electrical installations. The conductor is solid copper with a flame-retardant PVC insulation layer and an outer nylon jacket. The nylon jacket provides resistance to oil, gasoline, chemicals, and abrasion, making this wire suitable for demanding conduit runs and raceway applications. UL listed for code-compliance documentation on permitted installations.

This wire is commonly installed by licensed electricians in new construction, renovation, and service upgrade work. Green THHN wire at 10 AWG is a standard choice for equipment grounding conductors in branch circuits where a larger ground gauge is specified. It pulls cleanly through conduit and raceways due to its small-diameter profile. Typical applications include panel feeders, subpanel grounding, motor equipment grounding, and general branch circuit wiring where local code requires a dedicated insulated ground conductor.

Key Features

• Solid copper conductor — 10 AWG, green insulation for grounding identification
• 600-volt rating suitable for standard branch circuit and feeder applications
• 90 degrees C temperature rating for conduit and raceway use
• Flame-retardant PVC insulation with nylon jacket for added mechanical protection
• Resistant to oil, gasoline, chemicals, and abrasion
• UL listed — meets NEC compliance requirements for permitted wiring methods

Compatibility

Designed for use in conduit and raceway wiring systems in residential and commercial installations where 10 AWG THHN solid conductor wire is specified per NEC requirements.

Installation Notes

Installation should be performed by a licensed electrician in accordance with the National Electrical Code (NEC) and all applicable local codes. De-energize and lock out the circuit before making any connections. Use appropriate wire-pulling lubricant when feeding through long conduit runs to avoid jacket damage. Do not exceed the wire's 600-volt or 90 degrees C ratings for the intended application.

Technical Specifications

• Conductor Material: Solid Copper
• AWG: 10
• Insulation Type: THHN
• Insulation Material: Flame-Retardant PVC with Nylon Jacket
• Voltage Rating: 600 Volts
• Temperature Rating: 90 degrees C
• Wire Color: Green
• Length: 500 Feet
• Unit of Measure: Roll
• Weight: 18.675 pounds
• Certifications: UL Listed

Standard Information

• Brand: SOUTHWIRE
• Manufacturer Part Number: 11599857
