Southwire 108M Flexible Conduit Connector 3 in 90 degree

Product Description

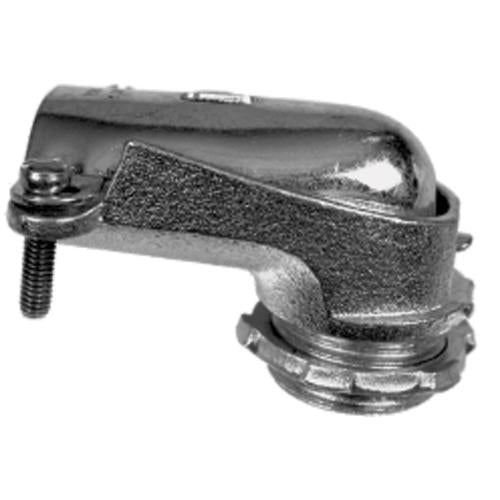

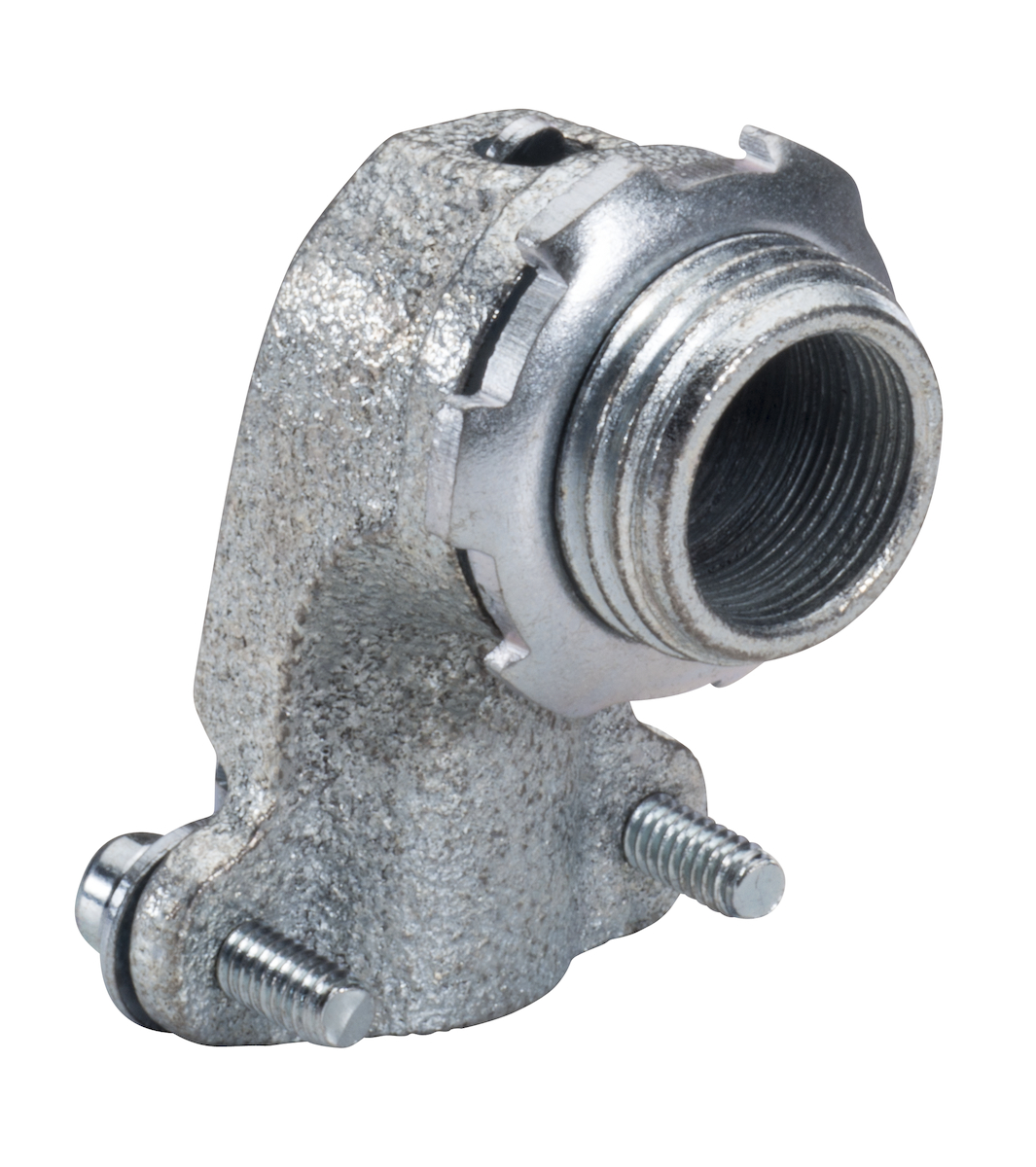

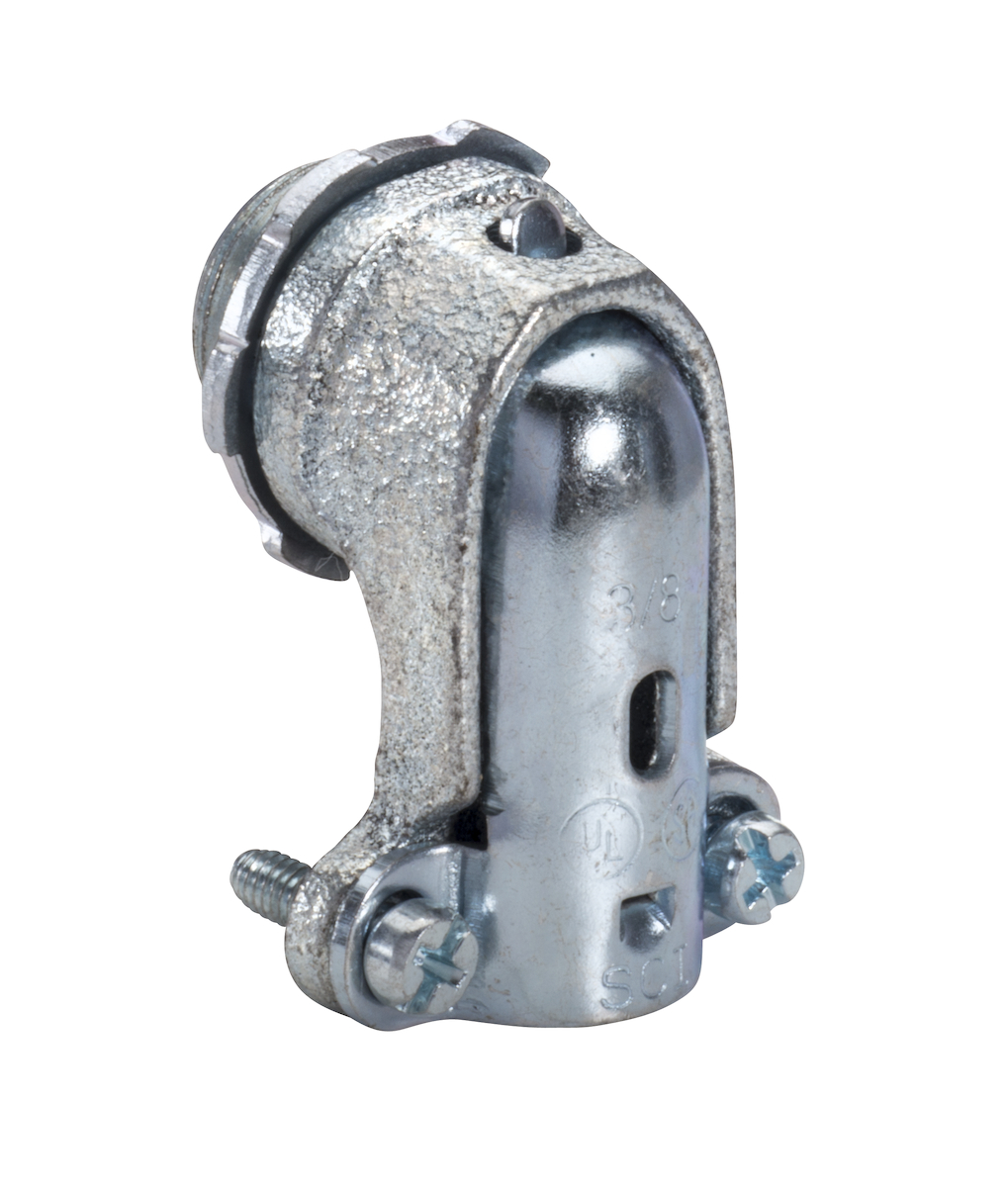

The SOUTHWIRE 108M is a 3-inch 90-degree flexible conduit connector made from malleable iron. It is designed for flex conduit and features a squeeze installation with four screws. The connector is UL and CSA approved, with a single cable opening that fits cord sizes from 3.25 to 3.5 inches.

• UL and CSA approved
• Constructed from malleable iron
• Features a 90-degree angle

Product Highlights

This flexible conduit connector is ideal for commercial, industrial, and residential applications.

Product Information

Standard Information

• Brand: SOUTHWIRE
• Manufacturer Part Number: 108M
• Country of Origin: MUL

Technical Specifications

• Approval: UL, CSA
• Cable/Conduit Type: Flex Conduit
• Cord Size: 3.25 to 3.5 Inch
• Installation: (4) Screw, Squeeze
• Manufacturer Name: Southwire
• Material: Malleable Iron
• Product UPC: 751338105805
• Throat Type: Non-Insulated
• Type: 90 Degree
• Angle: 90 deg
• Connection Type: Threaded x Squeeze
• Country of Origin: MUL
• Finish: Zinc Plated
• Knockout Size: 3 in
• Mfg Standards/Approvals: UL 514B Listed, US Federal Specification Number A-A-50552, NEMA/ANSI FB-1, CSA E148716 Certified, Military Specification:W-F-406D, W-F-406E, W-F-408D, W-S-610D, RoHs Compliant
• Trade Size: 3 in
