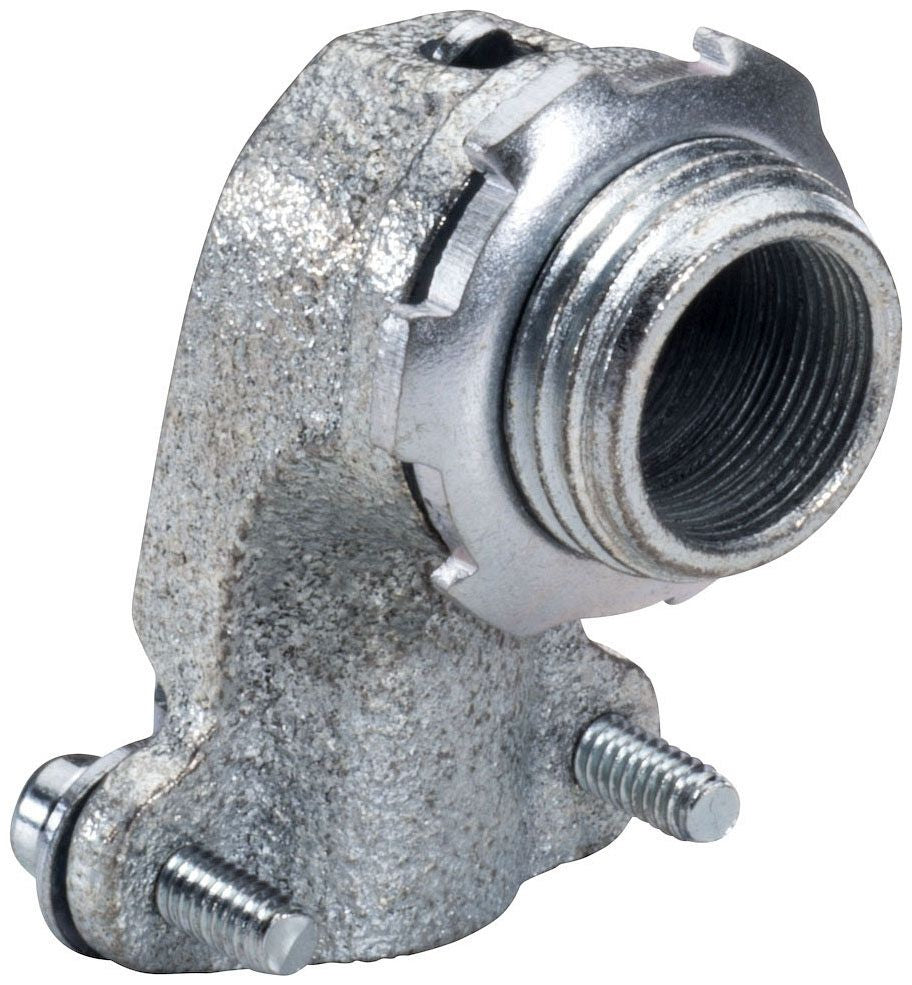

Southwire 105M 1-1/2 in 90 Degree Metal Insulated Flex Connector

Product Description

The SOUTHWIRE 105M is a 1-1/2 inch, 90-degree metal insulated flexible conduit connector designed for making secure, angle transitions between flexible metal conduit and standard electrical enclosures or junction boxes. The insulated throat protects wire insulation from abrasion at the point of entry. This fitting is a standard component in commercial and industrial electrical installations where conduit must change direction sharply without compromising the integrity of the raceway system. Licensed electricians and electrical contractors install this connector during rough-in and finish phases of electrical work.

This connector is suited for use in commercial buildings, industrial facilities, and residential applications where flexible metal conduit terminates at panels, disconnect boxes, or electrical enclosures. The 90-degree angle body simplifies installations in tight or confined spaces where a straight connector cannot accommodate the required conduit routing. It is compatible with standard 1-1/2 inch flexible metal conduit and fits knockout openings of the corresponding trade size.

Key Features

• 90-degree body angle for tight-space conduit routing without field bending
• 1-1/2 inch trade size fits standard flexible metal conduit of matching diameter
• Insulated throat protects conductor insulation from metal edges at entry point
• Metal construction provides mechanical durability and grounding continuity
• Designed for use with standard trade-size knockout openings on enclosures and panels

Compatibility

Designed as an OEM-style replacement fitting for 1-1/2 inch flexible metal conduit systems in residential, commercial, and industrial electrical installations.

Installation Notes

Installation should be performed by a licensed electrician in accordance with the National Electrical Code (NEC). De-energize the circuit and verify absence of voltage before working at any enclosure or panel. Ensure the knockout opening matches the 1-1/2 inch trade size before installing the connector, and tighten the locknut securely to maintain grounding continuity. Do not over-tighten to the point of distorting the enclosure wall or cracking the insulated throat insert.

Technical Specifications

• Trade Size: 1-1/2 inches
• Angle: 90 degrees
• Connector Type: Metal Insulated Flexible Conduit Connector
• Weight: 5.0 pounds
• UPC: 75133810550

Standard Information

• Brand: SOUTHWIRE
• Manufacturer Part Number: 105M
