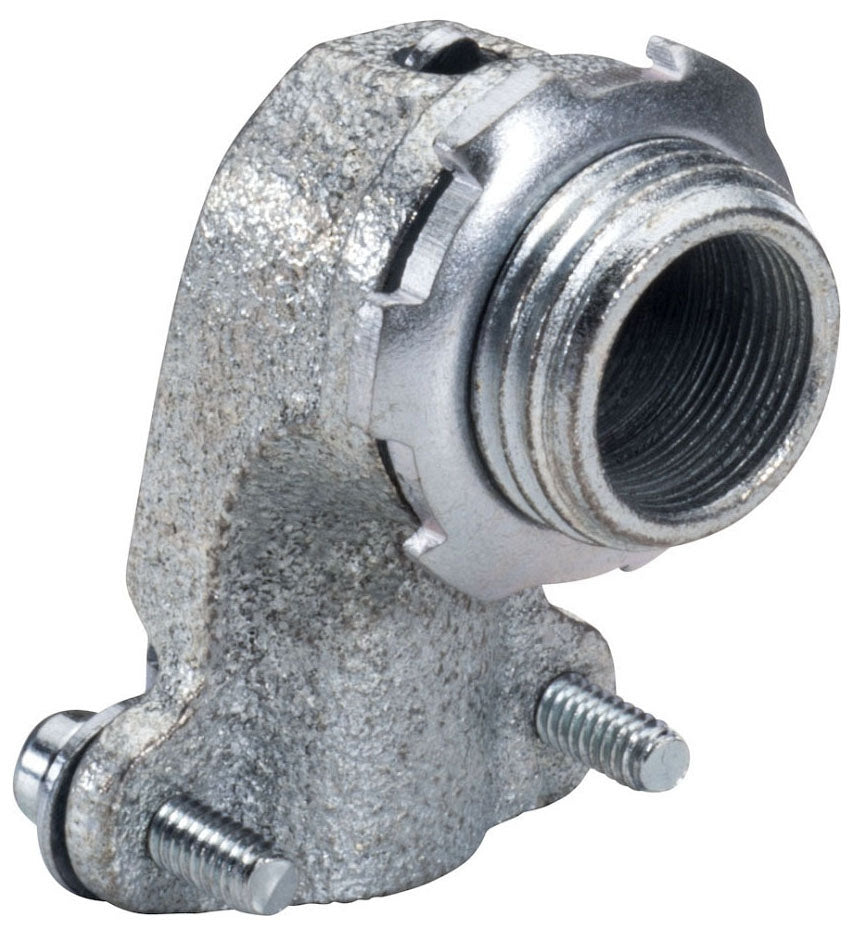

Southwire 103M 1 in 90 Degree Metal Insulated Flex Connector

Product Description

The SOUTHWIRE 103M is a 1-inch 90-degree metal insulated flexible conduit connector designed for secure termination of flexible metal conduit in electrical installations. This fitting provides a right-angle transition from flexible conduit to an electrical enclosure, junction box, or panel knockout. The insulated throat protects conductor insulation from abrasion at the point of entry. Licensed electricians install this type of connector in both new construction and retrofit applications where conduit must change direction at the termination point.

This connector is suited for residential and commercial electrical work where flexible metal conduit terminates at enclosures, motor junction boxes, or equipment panels. The 90-degree angle reduces stress on the conduit and conductors when a straight connector would require a tight bend. It fits standard 1-inch trade-size flexible conduit and is appropriate for use in dry or damp locations per applicable NEC requirements.

Key Features

• 1-inch trade size fits standard flexible metal conduit
• 90-degree angle eases conduit routing at enclosure terminations
• Insulated throat protects conductor insulation from metal edges
• Metal construction for durability and grounding continuity
• Compatible with standard knockout openings on electrical enclosures

Compatibility

Designed as an OEM-style fitting for use with 1-inch trade-size flexible metal conduit terminating at standard electrical enclosures, junction boxes, and equipment panels.

Installation Notes

Installation should be performed by a licensed electrician in accordance with the National Electrical Code (NEC). De-energize the circuit and lock out the panel before beginning conduit termination work. Insert the connector into the enclosure knockout and secure the locknut firmly from inside the enclosure. Avoid over-tightening, which can crack the insulated throat or distort the connector body.

Technical Specifications

• Trade Size: 1 inch
• Angle: 90 degrees
• Connector Type: Metal Insulated Flexible Conduit Connector
• Weight: 30 pounds
• UPC: 75133810530

Standard Information

• Brand: SOUTHWIRE
• Manufacturer Part Number: 103M
