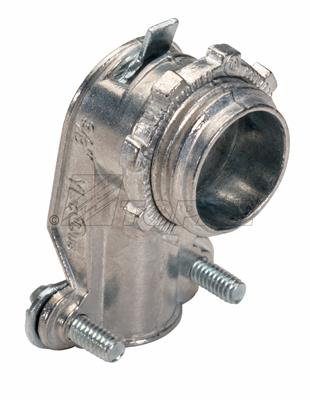

Southwire 102 Topaz 90-Degree Flexible Metal Conduit Connector

Product Description

The Southwire Topaz 102 is a 90-degree connector designed for attaching flexible metal conduit to enclosures or boxes in dry locations. Made from die-cast zinc, it provides durability and resistance to corrosion. The connector features a squeeze-type assembly, making it easy to install. This product is UL and CSA certified.

• 90-degree angle for optimal connection.
• Squeeze-type design for easy installation.
• Perfect for use with flexible metal conduits.

Product Highlights

This connector is specifically designed to bond flexible metal conduit securely to various fixtures in dry environments.

Product Information

Standard Information

• Manufacturer Part Number: 102
• Brand Name: Southwire

Technical Specifications

• Trade Size: 3/4 inches
• Angle: 90 degrees
• Material: Die-Cast Zinc
• Cable/Conduit Type: Flex Conduit
• Cable Opening: Single
• Cord Size: 0.76 to 1.15 inches
• Installation: (2) Screw Squeeze
• Throat Type: Non-Insulated
• Type: Flexible
• Application: For dry locations, bonding flexible metal conduit to a box or enclosure
• Standard & Approvals: UL 514B, UL File Number E148716, US Federal Specification Number A-A-50552, NEMA/ANSI FB-1, CSA Certified, Military Specification: W-F-406D, W-F-406E, W-F-408D, W-S-610D
