Southwark Metal WS13_3-1/4X10 Duct Angle 45 Degree

Product Description

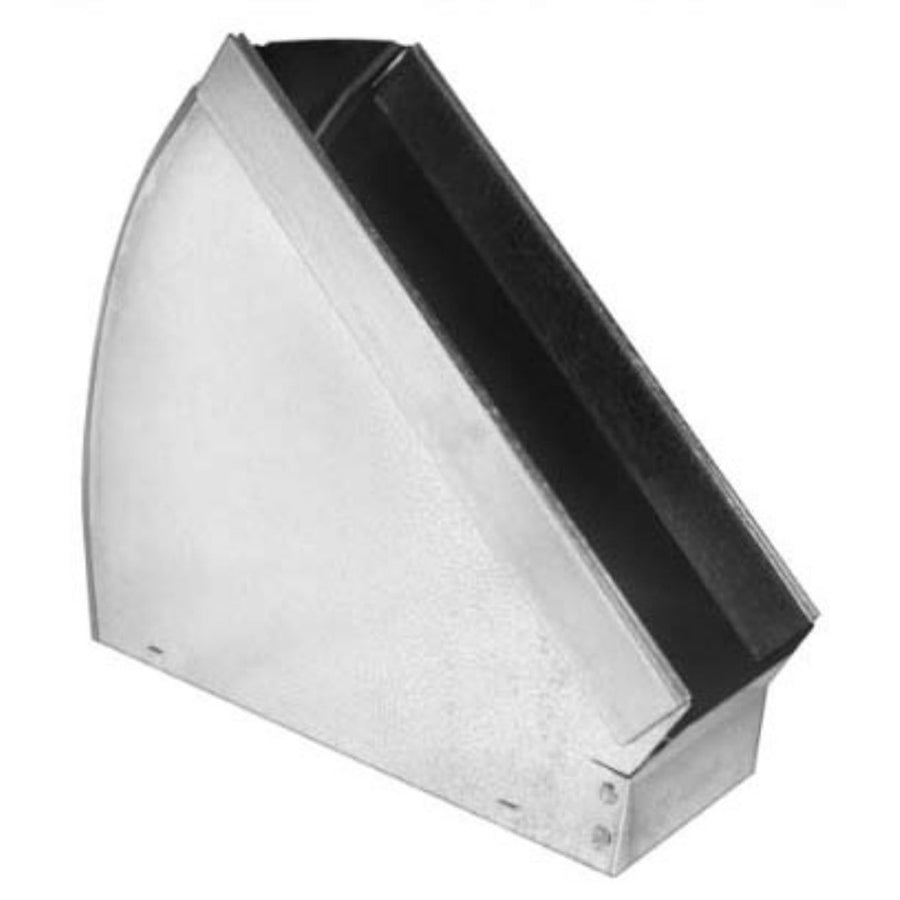

The SOUTHWARK METAL WS13_3-1/4X10 is a 45-degree sheet metal duct angle used to transition or offset rectangular duct runs in residential and light commercial HVAC systems. Fabricated from hot dip galvanized steel, this fitting measures 3-1/4 inches x 10 inches on both the inlet and outlet ends, making it a straight-size connection with no reduction. It is rated for flat, Broadway, longway, and wall stack duct configurations, giving installers flexibility across multiple layout types. HVAC sheet metal mechanics and duct installers are the primary trades for this fitting.

This duct angle is suited for low-profile wall stack installations, floor duct systems, and standard trunk-and-branch layouts where a 45-degree offset is required. The 3-1/4 x 10 inch cross-section is a common wall stack size found in residential construction, fitting inside standard 2x4 and 2x6 framed wall cavities. It is appropriate for supply-side duct systems in forced-air heating and cooling applications built to ACCA and SMACNA standards.

Key Features

• 45-degree angle for offsetting rectangular duct runs without a full 90-degree turn
• Hot dip galvanized steel construction provides corrosion resistance in exposed or semi-conditioned spaces
• Dual 3-1/4 x 10 inch openings — no size reduction from inlet to outlet
• Compatible with flat, Broadway, longway, and wall stack duct configurations
• Manufactured to ACCA and SMACNA applicable standards

Compatibility

Designed as an OEM-style sheet metal fitting for rectangular duct systems with a 3-1/4 x 10 inch wall stack profile, suitable for use in forced-air HVAC installations built to ACCA and SMACNA standards.

Installation Notes

Installation should be performed by a licensed sheet metal mechanic or HVAC technician. Power down the air handling unit and close the system dampers before modifying any duct section. Secure the fitting with sheet metal screws and seal all joints with UL 181-rated duct mastic or approved foil tape per SMACNA guidelines. Wear cut-resistant gloves when handling raw sheet metal edges.

Technical Specifications

• Material: Hot Dip Galvanized Steel
• Angle: 45 Degrees
• Size A: 3-1/4 inches x 10 inches
• Size B: 3-1/4 inches x 10 inches
• Type: Flat, Broadway, Longway, Wall Stack
• Applicable Standard: ACCA, SMACNA

Standard Information

• Brand: SOUTHWARK METAL
• Manufacturer Part Number: WS13_3-1/4X10
