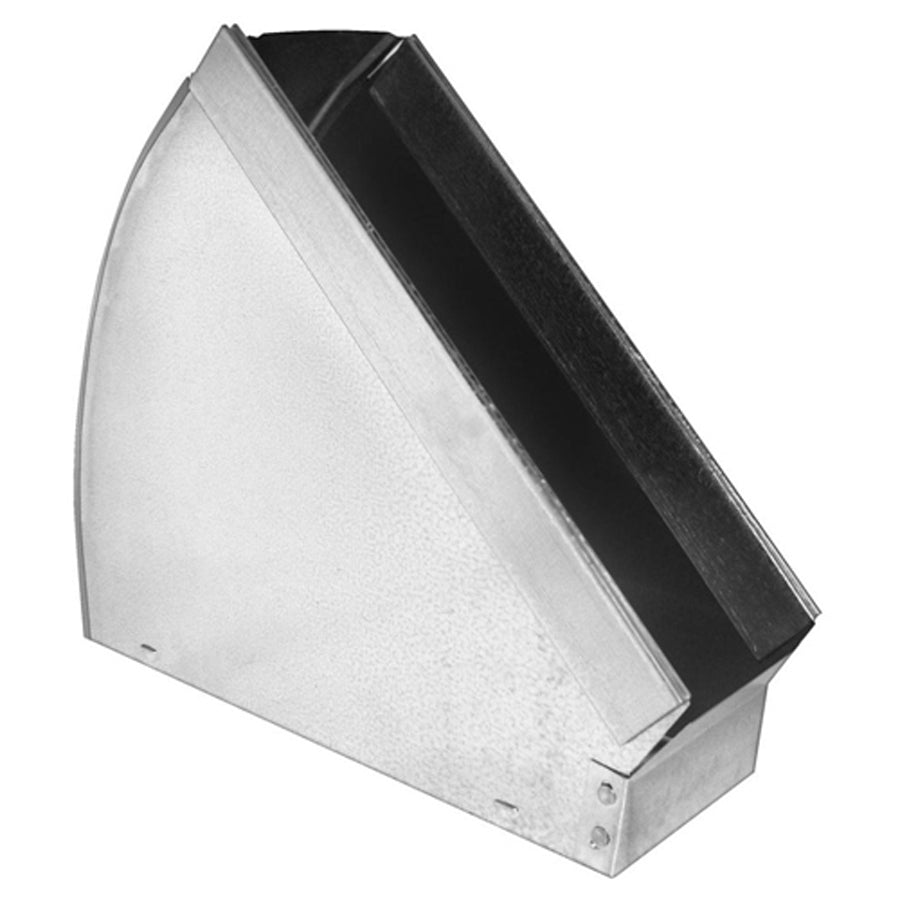

Southwark Metal WS13_2-1/4X12 Duct Angle 45 Degree

Product Description

The SOUTHWARK METAL WS13_2-1/4X12 is a 45-degree flat sheet metal duct angle used to connect and reinforce rectangular ductwork joints in residential and commercial HVAC systems. Fabricated from hot dip galvanized steel, this Broadway-style longway angle measures 2.25 inches by 12 inches and is designed for flat, rectangular duct assemblies. HVAC sheet metal mechanics and duct fabricators install this fitting during duct system construction or repair. Its galvanized finish resists corrosion in both conditioned and unconditioned spaces, making it suitable for a wide range of installation environments.

This duct angle is used in rectangular duct systems where a 45-degree transition or reinforcement connection is required. The Broadway longway configuration suits standard flat-duct assemblies common in residential forced-air systems and light commercial applications. Sheet metal contractors working on supply and return air distribution systems will find this angle appropriate for duct fabrication shops or field installation. It conforms to ACCA and SMACNA standards, which are the industry benchmarks for duct construction and installation quality.

Key Features

• 45-degree angle configuration for standard duct joint connections
• Hot dip galvanized steel construction for corrosion resistance
• Broadway longway flat rectangular profile
• 2.25-inch by 12-inch dimensions suit common rectangular duct sizes
• Meets ACCA and SMACNA applicable standards

Compatibility

Designed as an OEM-style sheet metal fitting for flat, rectangular duct assemblies in residential and light commercial forced-air HVAC systems built to ACCA and SMACNA standards.

Installation Notes

Installation is performed by licensed sheet metal mechanics or HVAC technicians following SMACNA duct construction guidelines. Power down and lock out the air handling unit before working on connected ductwork. Secure the angle using appropriate sheet metal screws or drive cleats per SMACNA specifications. Seal all joints with listed duct sealant or mastic after fastening to maintain system air tightness.

Technical Specifications

• Material: Hot Dip Galvanized Steel
• Angle: 45 Degrees
• Size A: 2.25 inches x 12 inches
• Size B: 2.25 inches x 12 inches
• Type: Flat, Broadway, Longway, Rectangular
• Applicable Standards: ACCA, SMACNA

Standard Information

• Brand: SOUTHWARK METAL
• Manufacturer Part Number: WS13_2-1/4X12
