Southwark Metal TD_30X8X48 Trunk Duct 30x8x48 Galvanized

Product Description

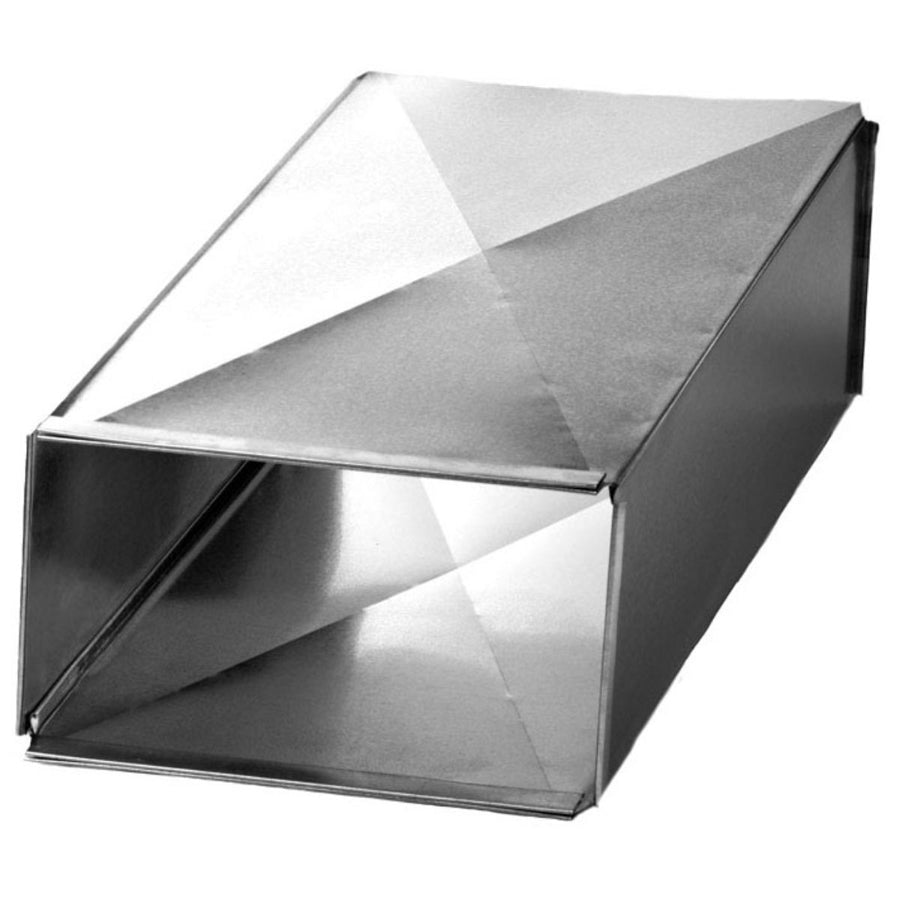

The SOUTHWARK METAL TD_30X8X48 is a hot-dip galvanized steel trunk duct section designed for forced-air HVAC distribution systems. Measuring 30 inches by 8 inches in cross-section and 48 inches in length, this duct section handles supply air delivery in residential and light commercial installations. Construction features button snap-lock seams with S-cleat and drive connections for secure, field-ready assembly. Cross-breaking on the flat panels adds rigidity and reduces metal flexing and noise under airflow pressure. Licensed HVAC technicians and sheet metal contractors install this product as part of new construction or replacement trunk line runs.

This trunk duct section is suited for rectangular supply air trunk lines in forced-air heating and cooling systems. The 30-inch by 8-inch profile accommodates medium to large duct runs where airflow capacity and structural stiffness are required. The hot-dip galvanized finish provides corrosion resistance in attic, crawlspace, and basement installations. S-cleat and drive connection ends allow this section to connect directly to adjacent fittings and duct sections following standard sheet metal assembly practices compliant with ACCA and SMACNA guidelines.

Key Features

• Hot-dip galvanized steel construction for corrosion resistance in varied installation environments
• Button snap-lock seam with S-cleat and drive connection ends for fast, secure field assembly
• Cross-broken flat panels for added rigidity and reduced drumming under airflow
• 30 inches by 8 inches cross-section profile for medium to large trunk line applications
• 48-inch section length reduces the number of joints needed in a straight trunk run
• Manufactured to ACCA and SMACNA applicable standards

Compatibility

Designed as a standard rectangular sheet metal trunk duct section compatible with S-cleat and drive-style duct connections used in residential and light commercial forced-air HVAC distribution systems.

Installation Notes

Installation should be performed by a licensed HVAC technician or qualified sheet metal contractor. Shut down the air handler or furnace and lock out power before modifying or extending an existing duct system. S-cleat and drive connections require standard sheet metal hand tools and should be sealed with UL 181-listed duct sealant or foil tape per local mechanical code requirements. Support hangers and spacing should follow SMACNA duct installation standards for the duct weight and run length.

Technical Specifications

• Material: Hot Dip Galvanized Steel
• Width (Size A): 30 inches
• Height (Size B): 8 inches
• Length: 48 inches
• Connection Type: Button Snap-Lock with S-Cleat and Drive Connection
• Panel Reinforcement: Cross Broken
• Applicable Standards: ACCA, SMACNA

Standard Information

• Brand: SOUTHWARK METAL
• Manufacturer Part Number: TD_30X8X48
