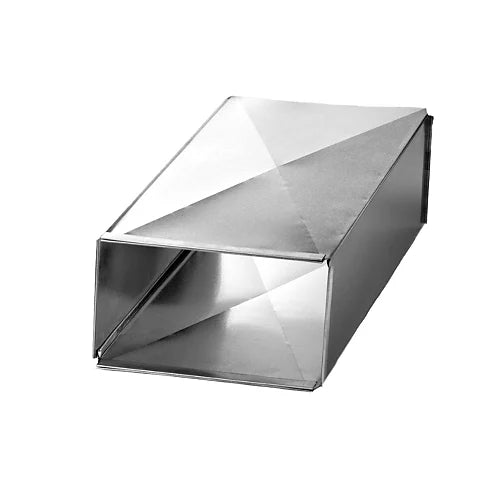

Southwark Metal TD24R82614ND Trunk Duct R8 Insulated No Drive 26 Inches X 14 Inches 24 Inches Long

Product Description

The Southwark Metal TD24R82614ND is a rectangular trunk duct section designed for residential and light commercial HVAC air distribution systems. It measures 26 inches wide by 14 inches tall and is 24 inches long, making it a practical straight section for main trunk runs in forced-air heating and cooling systems. This duct section is fabricated from 26-gauge galvanized steel, which provides corrosion resistance and long-term structural integrity in both supply and return air applications. The galvanized coating protects against moisture, rust, and the everyday demands of installed ductwork in attics, basements, crawl spaces, and mechanical rooms. The duct is pre-insulated to R8, meeting energy code requirements in many jurisdictions and helping reduce heat gain and heat loss as conditioned air travels through the trunk line. R8 insulation is commonly required by IECC and Title 24 energy codes for ducts located in unconditioned spaces, making this section a code-compliant choice for HVAC contractors and sheet metal installers working on new construction or retrofit projects. The no-drive configuration means this section does not use drive cleats for end connections. HVAC technicians and sheet metal mechanics should verify connection method compatibility with adjoining fittings and duct sections on the job. This trunk duct section is manufactured in the USA and is sold individually as a single unit. It is a direct fit for standard rectangular trunk duct systems and is compatible with matching Southwark fittings, transitions, and trunk duct components. HVAC installers, mechanical contractors, and sheet metal workers rely on Southwark Metal products for consistent quality and precise fabrication across commercial and residential duct systems.

• 26-gauge galvanized steel construction for corrosion resistance and durability
• R8 factory insulation meets energy code requirements for ducts in unconditioned spaces
• No-drive end configuration for straightforward trunk duct assembly

Product Highlights

The Southwark Metal TD24R82614ND delivers a code-compliant, R8-insulated rectangular trunk duct section in a 26 inches by 14 inches profile, built from USA-manufactured galvanized steel for reliable performance in residential and commercial forced-air HVAC systems.

Product Information

Standard Information

• Brand: SOUTHWARK METAL
• Manufacturer Part Number: TD24R82614ND

Technical Specifications

• Shape: Rectangle
• Duct Size: 26 inches x 14 inches
• Length: 24 inches
• Material: Galvanized Steel
• Gauge: 26 GA
• Insulation Rating: R8
• Galvanized: Yes
• Connection Type: No Drive
• Country of Origin: USA
• Weight: 2.07 pounds
• Prop 65: Yes
• Unit of Measure: Each
