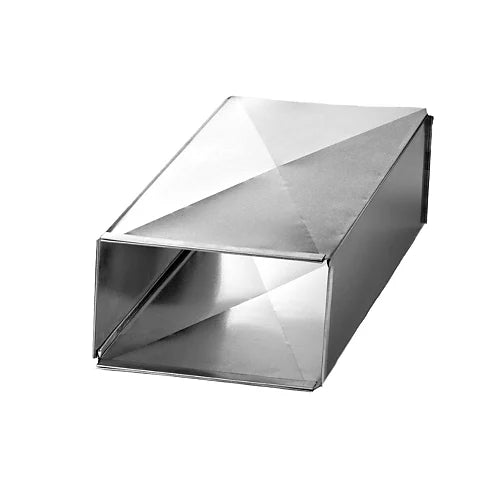

Southwark Metal TD24R82026ND Trunk Duct R8 Insulated No Drive 20 Inches X 26 Inches 24 Inches Long

Product Description

The Southwark Metal TD24R82026ND is a rectangular trunk duct section designed for commercial and residential HVAC air distribution systems. It measures 20 inches wide by 26 inches tall and is 24 inches long, making it a standard trunk section for larger-capacity forced-air systems. This duct is fabricated from 26-gauge galvanized steel, which provides durability, corrosion resistance, and long-term structural integrity in both supply and return air applications. The galvanized coating protects the steel from moisture and rust, which is especially important in attic, crawlspace, and basement installations where humidity levels can fluctuate. The duct carries an R8 insulation rating, meaning it is wrapped with insulation that meets or exceeds current energy code requirements for duct thermal performance. R8 insulated duct reduces heat gain and heat loss as conditioned air travels from the air handler to the living or working space, improving system efficiency and lowering energy costs. HVAC technicians and sheet metal contractors rely on R8 rated duct sections for new construction and retrofit jobs that must comply with IECC energy codes and local mechanical codes. This section features a no-drive connection style, meaning it does not use drive cleats on the ends. This design choice is suited for specific installation configurations where alternative connection methods are used. The TD24R82026ND is sold as a single unit and is manufactured in the USA, supporting domestic supply chain requirements on commercial projects. It is subject to California Proposition 65 disclosure requirements.

• 26-gauge galvanized steel construction for strength and corrosion resistance
• R8 insulation rating meets current energy code requirements for thermal performance
• No-drive end configuration for compatible installation setups

Product Highlights

The Southwark Metal TD24R82026ND delivers a code-compliant, R8 insulated galvanized steel trunk duct section in a 20 inches by 26 inches by 24 inches size, built in the USA for reliable HVAC air distribution installations.

Product Information

Standard Information

• Brand: SOUTHWARK METAL
• Manufacturer Part Number: TD24R82026ND

Technical Specifications

• Size: 20 inches x 26 inches
• Length: 24 inches
• Width: 20 inches
• Height: 26 inches
• Material: Galvanized Steel
• Gauge: 26 GA
• Insulation Rating: R8
• Connection Type: No Drive
• Weight: 13.2 pounds
• Country of Origin: USA
• Prop 65: Yes
• Unit of Measure: EA
