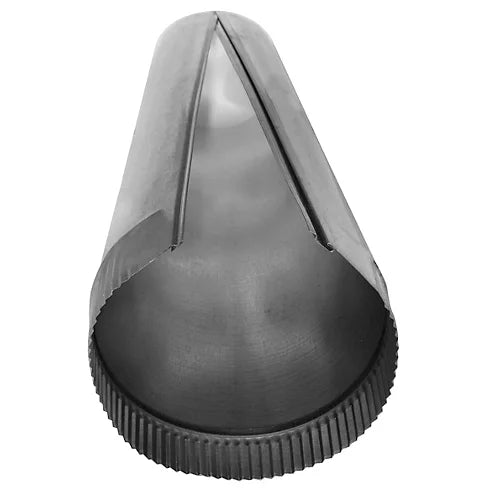

Southwark Metal SLB60628 Snaplock Round Galvanized Steel Pipe 28 Gauge 6 Inches X 5 Feet

Product Description

The Southwark Metal SLB60628 is a 28 gauge galvanized steel snaplock round pipe designed for use in residential and light commercial HVAC duct systems. It measures 6 inches in diameter and 60 inches in length, giving installers a full 5-foot section per piece. This pipe is built for speed and ease of assembly. One technician can connect sections without special tools. Simply align the male end with the female end and press until the crimp snaps into place. The self-starting knurled crimp guides itself into position and locks down firmly, forming a rigid, leak-proof connection. Once assembled, the joint meets plus 2 inches w.g. positive pressure performance, making it suitable for standard forced-air duct applications.

The pipe is manufactured from galvanized steel, which resists corrosion and holds up in attics, crawl spaces, basements, and mechanical rooms. The galvanized coating protects against moisture, which is critical in any supply or return air system where condensation can be a factor. The snap-lock closure eliminates the need for additional fastening at the seam during assembly, saving time on every run.

HVAC installers and sheet metal contractors working on new construction or replacement duct work will find this pipe straightforward to handle. A single worker can assemble runs up to 10 feet quickly. This pipe is sold by the piece and is comparable to Snappy Item 1B-06058BL. It is made in the USA and carries a Prop 65 designation. Use it with standard 6-inch duct fittings, elbows, tees, and takeoffs in round duct systems.

• 28 gauge galvanized steel construction for corrosion resistance and durability in HVAC duct applications
• Snap-lock seam closure allows fast, tool-free assembly by a single installer
• Meets plus 2 inches w.g. positive pressure rating for reliable, leak-proof duct connections

Product Highlights

The Southwark Metal SLB60628 delivers a fast-connect, pressure-rated round duct pipe in a standard 6-inch by 5-foot size, built from galvanized steel and manufactured in the USA for consistent quality on every job.

Product Information

Standard Information

• Brand: SOUTHWARK METAL
• Manufacturer Part Number: SLB60628

Technical Specifications

• Shape: Round
• Composition: Galvanized Steel
• Gauge: 28 GA
• Pipe Closure Type: Snap-Lock
• Pipe Diameter: 6 inches
• Pipe Length: 60 inches
• Pipe Size: 6 inches x 5 feet
• Galvanized: Yes
• Country of Origin: USA
• Weight: 5.92 pounds
• UOM: EA
