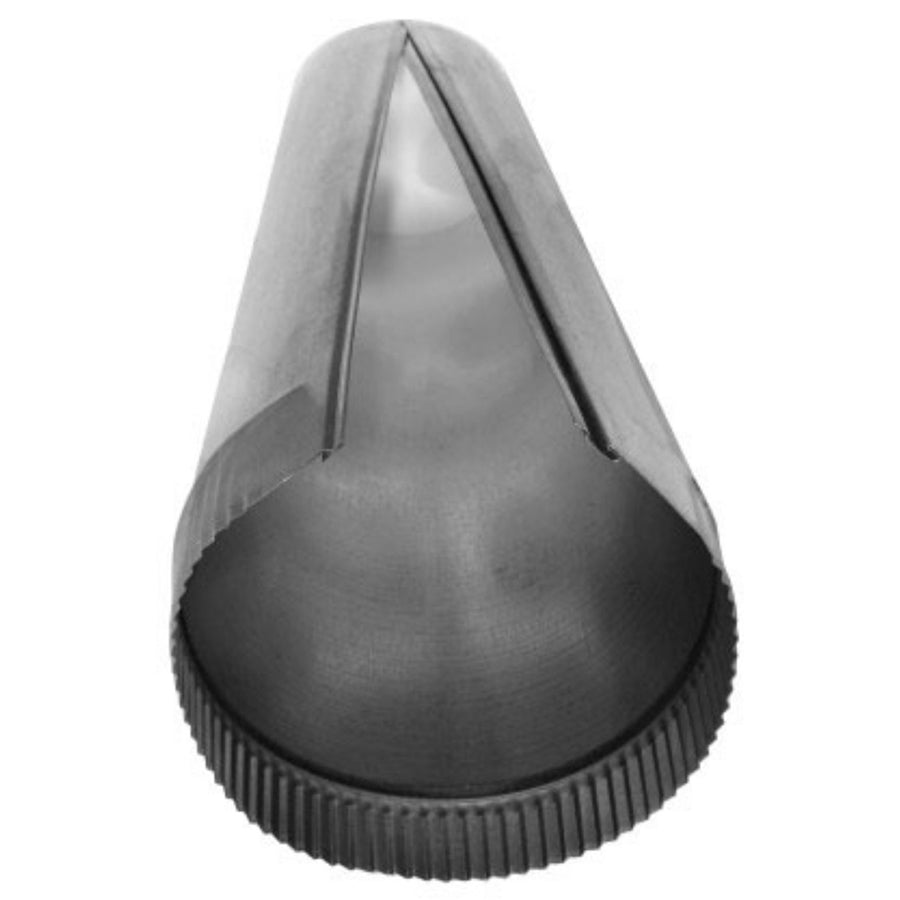

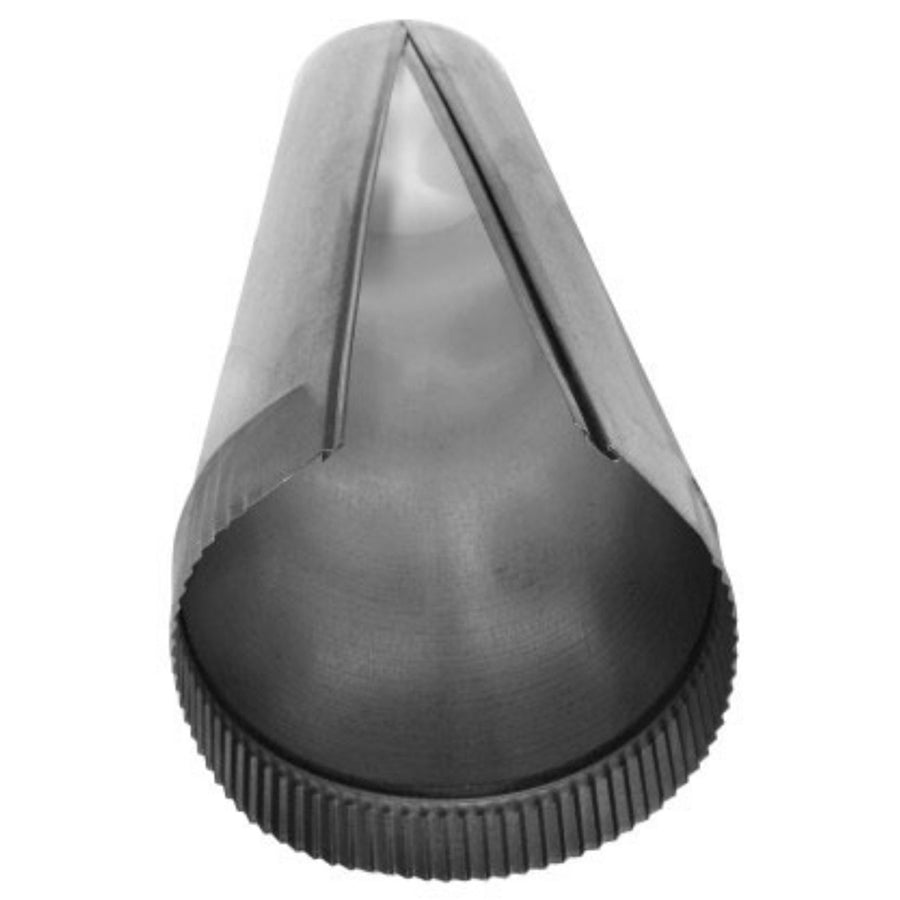

Southwark Metal SL24-24GA_22IN Round Sheet Metal Pipe 22in 24GA

Product Description

The SOUTHWARK METAL SL24-24GA_22IN is a round galvanized sheet metal pipe section used in low-pressure HVAC duct systems for supply and return air distribution. Fabricated from hot dip galvanized steel at 24 gauge material thickness, this pipe measures 22 inches in diameter and 24 inches in length. The snap-lock seam construction allows for fast, secure assembly in the field without additional fasteners at the longitudinal joint. Licensed HVAC technicians and sheet metal contractors are the primary installers of this type of ductwork component in both new construction and retrofit applications.

This pipe section is suited for residential and light commercial HVAC installations where round duct runs are specified. It is typically used in trunk-and-branch or radial duct systems to carry conditioned air from the air handler or furnace to supply outlets. The 22-inch diameter is a larger round duct size, common in main trunk lines or high-volume branch runs. Fabricated to ACCA and SMACNA standards, it is appropriate for systems designed and installed in compliance with those widely recognized industry guidelines.

Key Features

• Hot dip galvanized steel construction for corrosion resistance in duct environments
• 24 gauge material thickness meets SMACNA duct construction standards for round duct
• Snap-lock seam for rapid field assembly without welding or additional seam fasteners
• 22-inch diameter suits large-diameter main trunk and high-volume branch duct runs
• 24-inch section length compatible with standard duct layout spacing
• Manufactured to ACCA and SMACNA applicable standards

Compatibility

Designed as an OEM-style round duct pipe section for HVAC sheet metal duct systems built to ACCA and SMACNA standards. Compatible with standard 22-inch round duct fittings, collars, and transitions of matching gauge and diameter.

Installation Notes

Installation should be performed by a licensed HVAC technician or qualified sheet metal contractor in accordance with SMACNA duct construction standards and local mechanical codes. Shut down the air handling system completely before connecting or modifying duct sections. Seams and joints should be sealed with UL 181-listed mastic or foil tape per applicable code requirements. Support spacing and hanger methods should follow SMACNA guidelines for round duct of this diameter.

Technical Specifications

• Material: Hot Dip Galvanized Steel
• Material Thickness: 24 Gauge
• Diameter: 22 inches
• Length: 24 inches
• End Type: Snap-Lock
• Type: Round
• Applicable Standards: ACCA, SMACNA

Standard Information

• Brand: SOUTHWARK METAL
• Manufacturer Part Number: SL24-24GA_22IN
