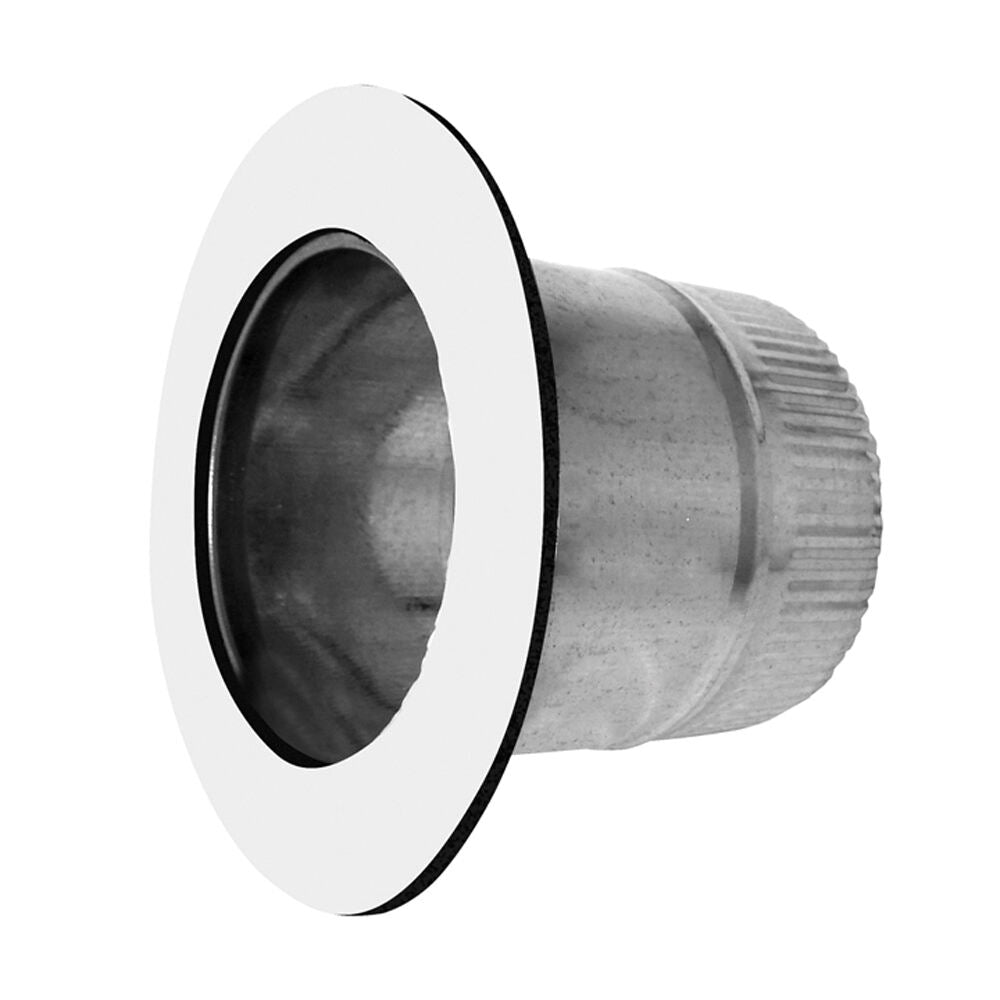

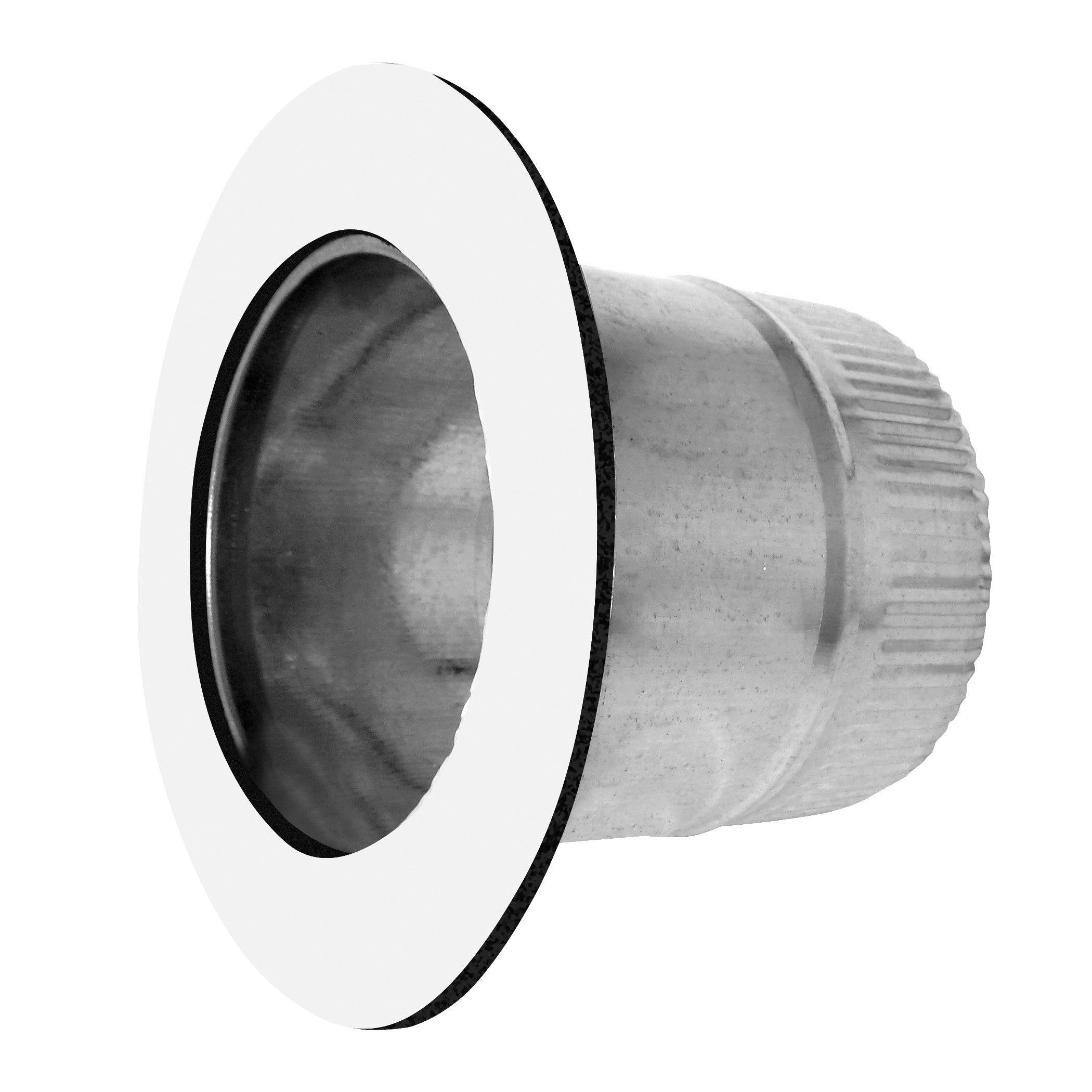

SOUTHWARK METAL MC-ATT-10 10 Inch Air-Tite Takeoff

Product Description

The SOUTHWARK METAL MC-ATT-10 is a ten inch Air-Tite takeoff designed for efficient air distribution in HVAC systems. This takeoff is made from hot-dipped galvanized steel, ensuring durability and resistance to corrosion, which is important for the longevity of ductwork applications.

• Constructed from hot-dipped galvanized steel for durability.
• Designed as a ten inch fitting for various ducting applications.
• Includes a neoprene foam gasket for a tight seal.

Product Highlights

This component facilitates secure connections in residential and light commercial ventilation systems.

Product Information

Standard Information

• Brand: SOUTHWARK METAL
• MPN: MC-ATT-10

Technical Specifications

• Fitting Size: 10 inches
• Material: Hot Dipped Galvanized Steel
• Gauge: 28 ga
• Type: Air-Tite, Round
• Finish: Hot-Dipped Galvanized, Silver
• Gasket Material: Neoprene foam
• Gasket Width: 1-1/2 inches
• Gasket Thickness: 1/8 inch
• Crimp Length: 1-1/2 inches
• Tube Length: 5-3/4 inches
• Gasket Diameter: 9-3/4 inches
• Screw Holes: 4 pre-drilled
