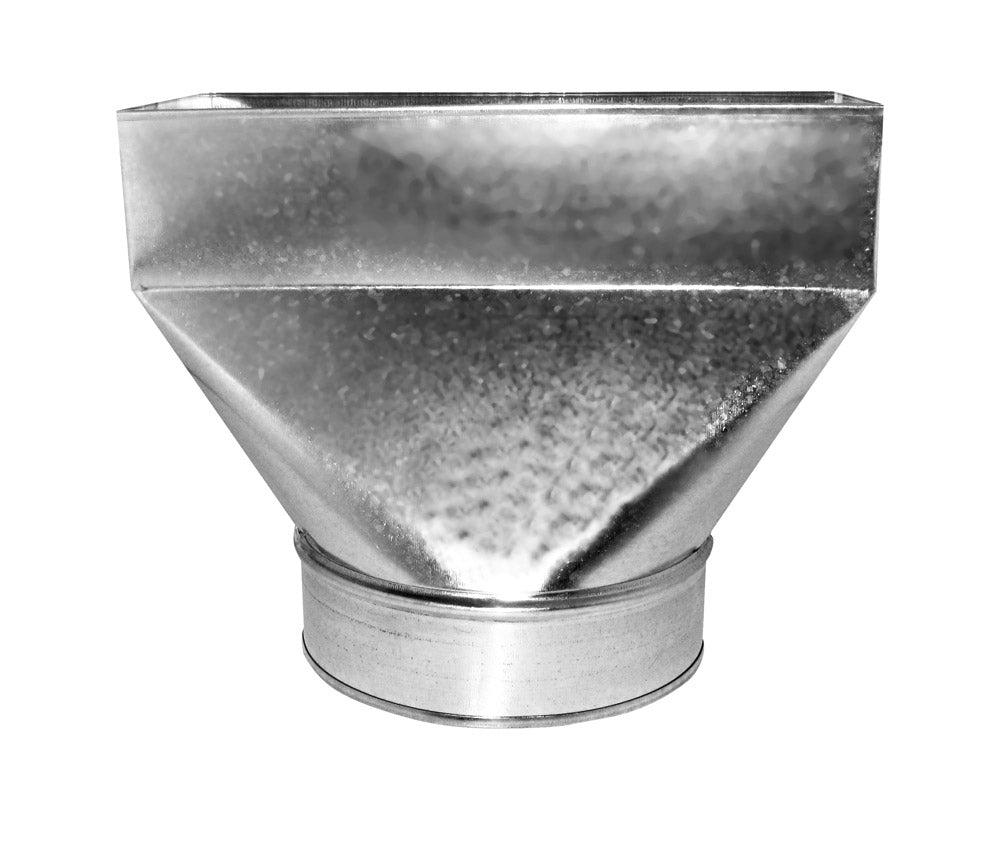

Southwark Metal MC-28R-4X10X6 Center End Register Boot

Product Description

The Southwark Metal MC-28R-4X10X6 is a center end register boot designed for HVAC systems. This component connects ductwork to a register, promoting airflow distribution. Made from hot-dipped galvanized steel, it resists rust and ensures durability.

• Constructed from hot-dipped galvanized steel
• Designed for connecting ductwork to a register
• Duct size measures four inches by ten inches by six inches

Product Highlights

This register boot offers effective air management and complies with industry standards.

Product Information

Standard Information

• Manufacturer: Southwark Metal
• Item ID: 28R4106

Technical Specifications

• Material: Galvanized Steel
• Finish: Hot Dipped Galvanized
• Duct Size: 4 x 10 x 6 inches
• Register Opening Length: 10 inches
• Register Opening Depth: 3 inches
• Collar Gauge: 28 gauge
• Body Gauge: 30 gauge
• Rivet Tab: 1/2 inch (using 1/8 inch rivets)
• Hemmed Edge on Register Opening: 1/4 inch
• Hemmed Edge on Collar: 1/8 inch
• G40 Rating: Yes
• Standards Met: ASTM A653 CS Type B
