SOUTHWARK METAL MC-122SC-9-SN 122SC 9 Collar Snapped

Product Description

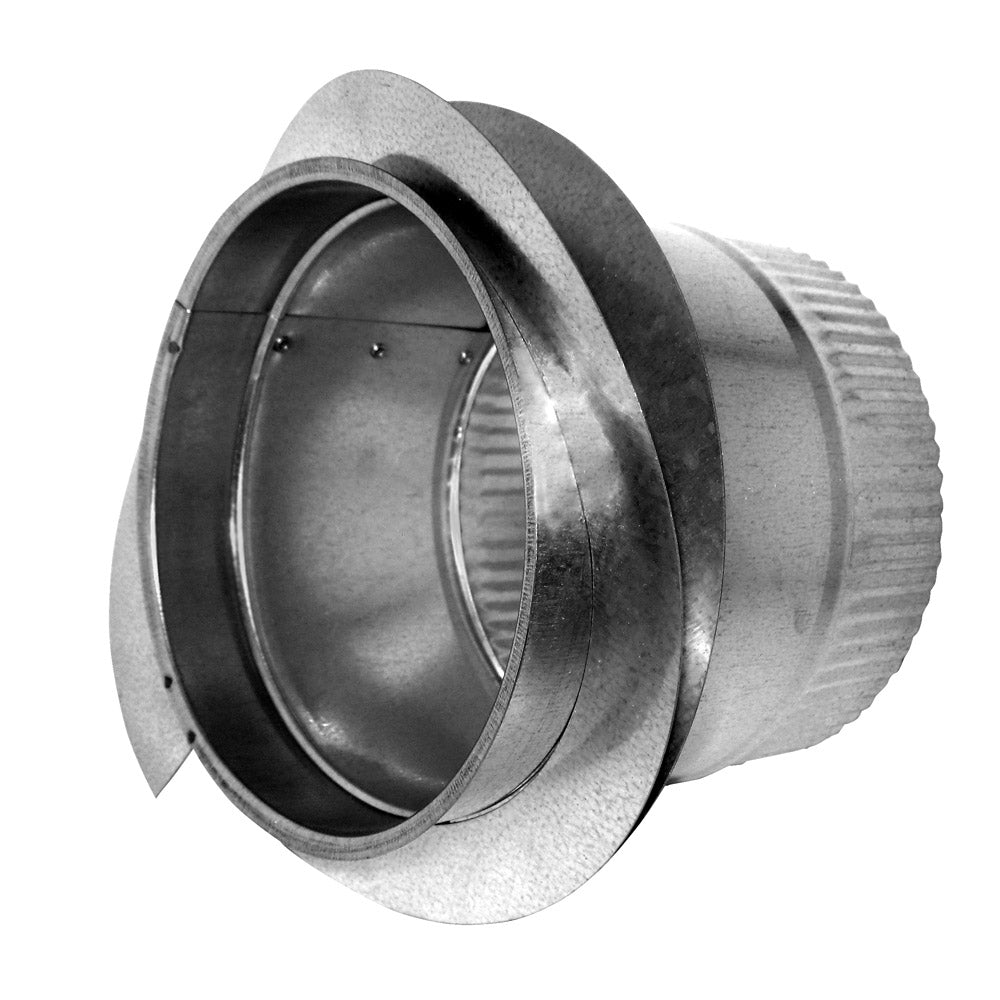

The SOUTHWARK METAL MANUFACTURING 122SC 9 Snapped Collar, MPN MC-122SC-9-SN, is designed for connecting ductwork. This duct fitting is made from 28-gauge hot-dipped galvanized steel, meeting the ASTM A653 CS Type B standards. It measures four inches in length from the ring to the edge and has a nominal diameter of nine inches. The collar includes a five-eighths inch wide ring and features integrated tabs. These tabs accommodate one and a half inch and two-inch ductboard thicknesses. The snapped design simplifies installation in HVAC systems. This product is a part of the 122SC series and offers various options, including models with or without a damper.

• Constructed from 28-gauge hot-dipped galvanized steel per ASTM A653 CS Type B.
• Nominal diameter of nine inches and a length of four inches from the ring to edge.
• Designed with tabs for attaching to one and a half inch and two-inch ductboard.

Product Highlights

This collar is efficient for quick and secure connections in HVAC applications.

Product Information

Standard Information

• Type: Collar
• Country of Origin:

Technical Specifications

• Material: Hot Dipped Galvanized Steel per ASTM A653 CS Type B
• Gauge: 28 Gauge
• Nominal Diameter: 9 Inches
• Length from Ring to Edge of Collar: 4 Inches
• Ring Width: 5/8 Inches
• Ductboard Compatibility: 1 1/2 and 2 Inch Ductboard
• Connection Type: Snapped
