Southwark Metal HT15_7X6 Duct Takeoff 7x6 Inch

Product Description

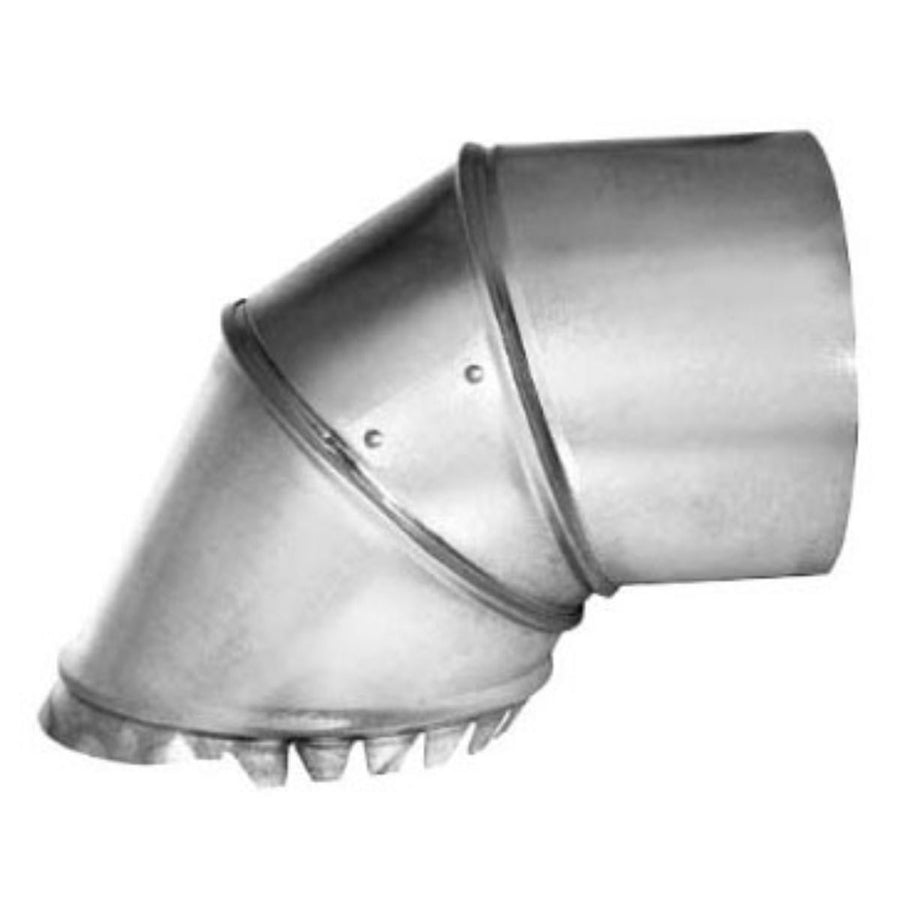

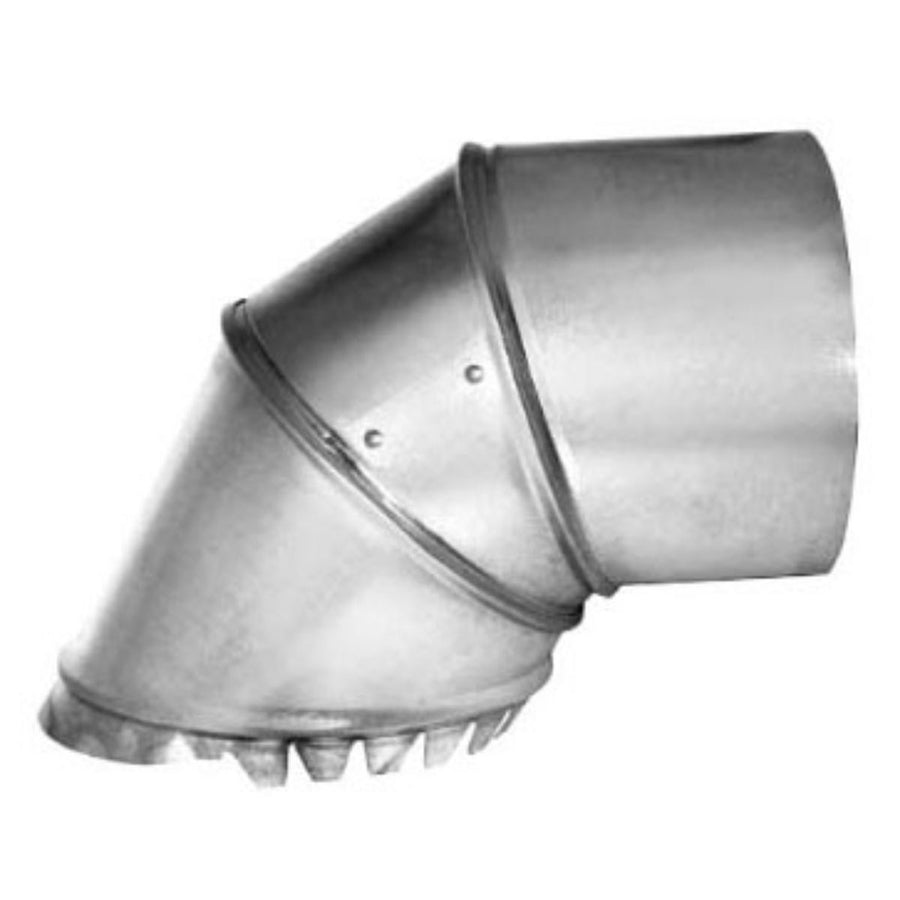

The SOUTHWARK METAL HT15_7X6 is a half-tab adjustable round-to-round sheet metal duct takeoff used in forced-air HVAC duct distribution systems. Fabricated from hot dip galvanized steel, it provides a durable branch connection between a main round duct and a round branch run. The adjustable design allows the fitting to pivot and lock at various angles, giving installers flexibility when routing branch ducts in tight spaces or at non-standard angles. This fitting measures 7 inches at the main connection and 6 inches in diameter at the branch outlet. It is typically installed by licensed HVAC technicians and sheet metal contractors during new construction or duct retrofit work.

This takeoff is suited for residential and light commercial forced-air heating and cooling duct systems. The round-to-round configuration makes it a standard choice for trunk-to-branch transitions in systems using round spiral or snap-lock ductwork. The half-tab design allows the fitting to seat flush against the main duct before tabs are bent to secure the connection. Installers working under ACCA Manual D duct design guidelines or SMACNA sheet metal construction standards will find this fitting meets those applicable standards.

Key Features

• Adjustable angle design allows flexible branch routing during installation
• Half-tab construction seats flush against main duct for a secure mechanical connection
• Hot dip galvanized steel construction provides corrosion resistance in air distribution environments
• Round-to-round configuration fits standard round spiral and snap-lock duct systems
• Meets ACCA and SMACNA applicable standards for sheet metal duct construction

Compatibility

Designed as an OEM-style replacement and new-installation fitting for residential and light commercial round duct systems requiring a 7-inch main by 6-inch branch takeoff connection.

Installation Notes

Installation should be performed by a licensed HVAC technician or sheet metal contractor. Shut down and de-energize the air handling system before cutting into existing ductwork or installing new branch connections. Secure the half tabs firmly against the main duct and seal all joints with listed duct sealant or metal-backed tape per applicable codes including SMACNA duct construction standards. Do not operate the system until all connections are sealed and mechanically fastened.

Technical Specifications

• Material: Hot Dip Galvanized Steel
• Size A (Main Connection): 7 inches
• Size B (Branch Outlet Diameter): 6 inches
• Type: Half Tab, Adjustable, Round to Round
• Applicable Standards: ACCA, SMACNA

Standard Information

• Brand: SOUTHWARK METAL
• Manufacturer Part Number: HT15_7X6
