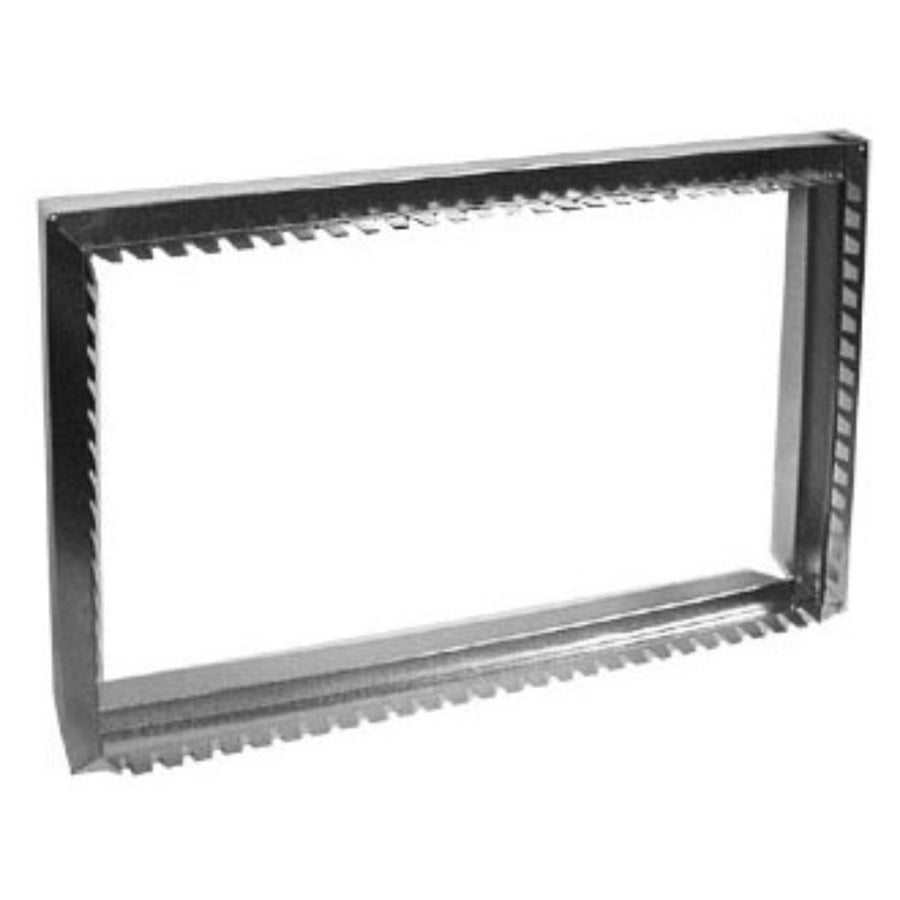

Southwark Metal FR_14X25 Duct Filter Rack 14x25 in

Product Description

The SOUTHWARK METAL FR_14X25 is a return air duct filter rack designed for installation in sheet metal duct systems. Fabricated from hot dip galvanized steel at 28 gauge, it provides a durable, corrosion-resistant housing that securely holds a standard 14 x 25 inch filter element. The rack opens on the short side, allowing straightforward filter access without removing the unit from the duct. HVAC technicians and sheet metal contractors install this component as part of residential and light commercial return air systems where a dedicated filter location is required within the duct run.

This filter rack is sized for 14 x 25 inch filters and mounts into sheet metal return air ductwork. It is suited for residential forced-air systems and light commercial applications where return air filtration is integrated directly into the duct. The short-side opening design is useful in installations where clearance on the long axis is limited. Sheet metal contractors and HVAC service techs typically install this rack during new construction duct fabrication or as a retrofit addition to an existing return air trunk line.

Key Features

• Hot dip galvanized steel construction resists corrosion in return air environments
• 28 gauge material thickness provides structural rigidity within the duct system
• Opens on the short side for filter access in tight installation conditions
• Accepts standard 14 x 25 inch filter media
• Meets ACCA and SMACNA applicable standards for duct fabrication

Compatibility

Designed as an OEM-style replacement and new-installation filter rack for 14 x 25 inch return air sheet metal duct systems.

Installation Notes

Installation is performed by licensed sheet metal contractors or HVAC technicians following SMACNA duct construction standards. Shut down the air handling system and confirm the blower is off before cutting into or modifying the return air duct. Secure the rack to the duct using sheet metal screws and seal all joints with UL 181-rated tape or mastic as required by local mechanical code. Confirm the filter seating surface is flush and free of gaps before returning the system to service.

Technical Specifications

• Filter Size: 14 x 25 inches
• Material: Hot Dip Galvanized Steel
• Material Thickness: 28 Gauge
• Type: Return Air Filter Rack
• Opening Side: Short Side
• Used On: Sheet Metal Duct
• Applicable Standards: ACCA, SMACNA

Standard Information

• Brand: SOUTHWARK METAL
• Manufacturer Part Number: FR_14X25
