Southwark Metal ATTRP_5IN Duct Saddle Takeoff 5 Inch

Product Description

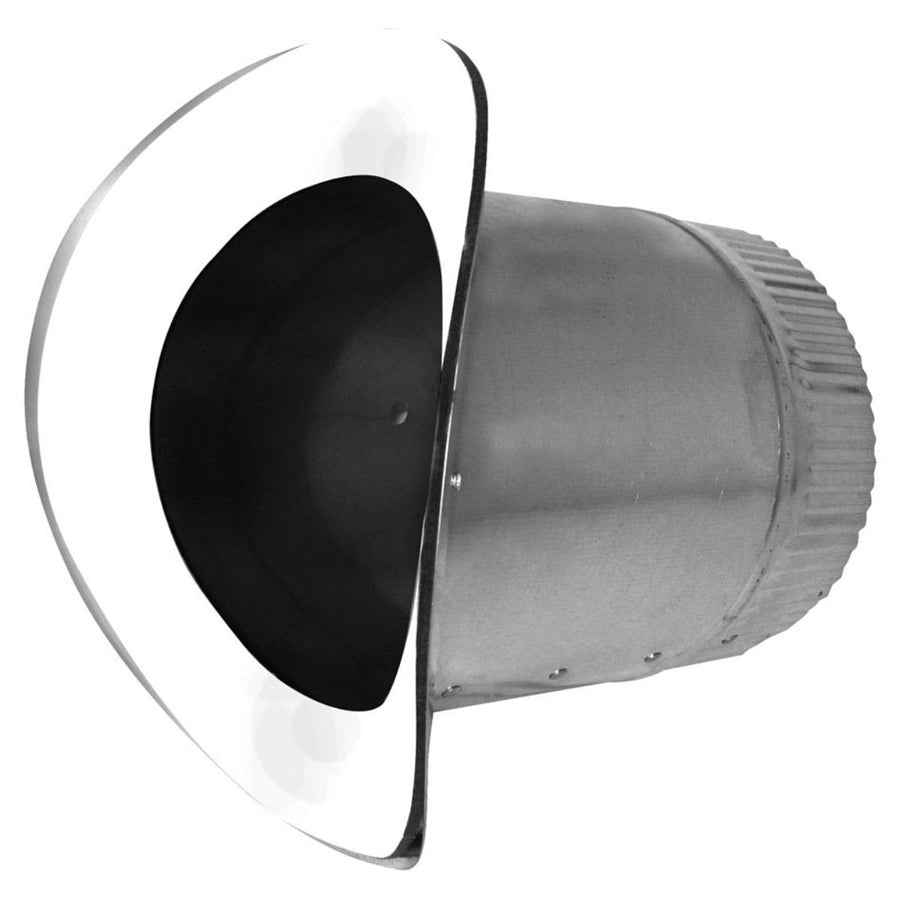

The SOUTHWARK METAL ATTRP_5IN is a 5-inch round sheet metal duct saddle takeoff designed for branching supply or return air from a main trunk line in forced-air HVAC duct systems. Fabricated from hot dip galvanized steel, it delivers corrosion resistance and structural integrity in both residential and light commercial ductwork installations. The Air-Tite design reduces air leakage at the branch connection point, supporting system efficiency and meeting the duct construction standards expected on quality installations. Licensed HVAC technicians and sheet metal mechanics are the primary installers of this fitting.

This saddle takeoff fits into standard 5-inch round duct branch applications where a trunk-to-branch connection is required. It is suited for residential forced-air systems and light commercial HVAC layouts where ACCA and SMACNA duct construction standards apply. The saddle style mounts directly to the face of a rectangular or round main trunk, making it a common choice for new construction and retrofit duct work where branch runs are added or reconfigured.

Key Features

• Hot dip galvanized steel construction for corrosion resistance in duct environments
• 5-inch round outlet diameter for direct connection to 5-inch round branch duct
• Air-Tite design minimizes air leakage at the trunk-to-branch junction
• Saddle-style mounting seats securely against main trunk duct surface
• Meets ACCA and SMACNA applicable standards for sheet metal duct construction

Compatibility

Designed for use as a 5-inch round saddle takeoff fitting in forced-air HVAC duct systems built to ACCA and SMACNA standards.

Installation Notes

Installation should be performed by a licensed HVAC technician or qualified sheet metal mechanic. Power down the air handling unit and verify the system is not pressurized before cutting into the trunk duct. Secure the saddle fitting to the trunk with sheet metal screws and seal all joints with UL 181-rated mastic or foil tape per applicable code requirements. Follow SMACNA duct construction guidelines and local mechanical code for fastener spacing and sealing methods.

Technical Specifications

• Material: Hot Dip Galvanized Steel
• Outlet Diameter: 5 inches
• Type: Air-Tite Saddle Round
• Applicable Standards: ACCA, SMACNA

Standard Information

• Brand: SOUTHWARK METAL
• Manufacturer Part Number: ATTRP_5IN
