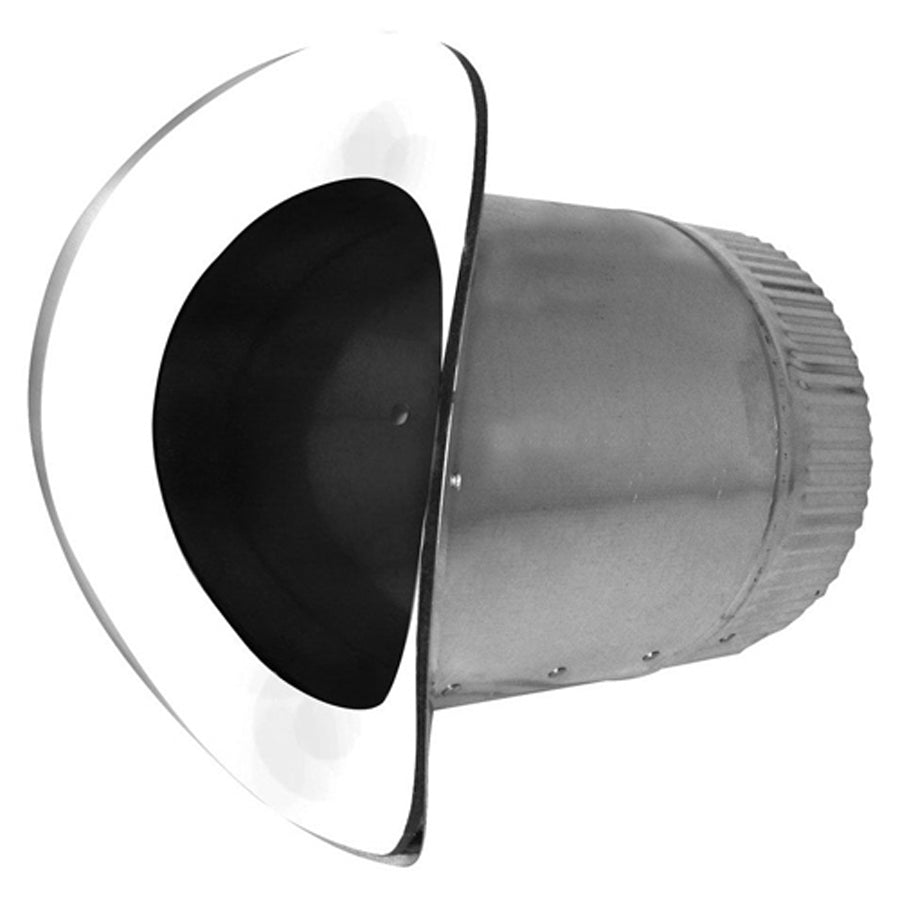

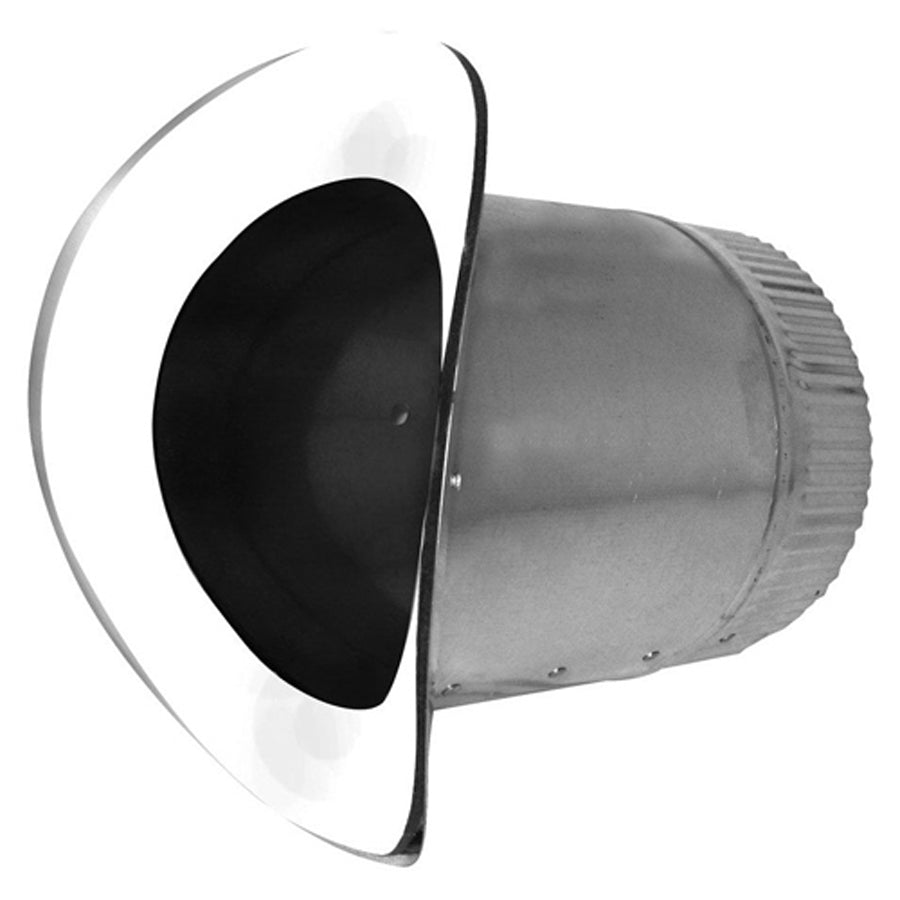

Southwark Metal ATTRP_14IN 14 Inch Round Saddle Duct Takeoff

Product Description

The SOUTHWARK METAL ATTRP_14IN is a 14-inch round saddle-style sheet metal duct takeoff designed for use in forced-air HVAC distribution systems. Constructed from hot-dipped galvanized steel, this Air-Tite saddle fitting provides a durable, corrosion-resistant connection point where branch ducts tap off a main trunk line. The saddle design seats securely against the main duct and is fabricated to meet ACCA and SMACNA standards, making it appropriate for commercial and residential sheet metal ductwork installations. HVAC sheet metal mechanics and duct installers are the primary trades working with this fitting.

This takeoff is suited for residential and light commercial forced-air applications where a 14-inch round branch connection is required off a rectangular or round main trunk. The Air-Tite construction helps reduce air leakage at the branch connection point, supporting system efficiency and code-compliant duct sealing requirements. It is installed during rough-in ductwork fabrication or as a replacement fitting on existing trunk-and-branch systems.

Key Features

• 14-inch round opening matches standard round branch duct sizing
• Hot-dipped galvanized steel construction resists corrosion in attic, crawlspace, and mechanical room environments
• Air-Tite saddle design minimizes air leakage at the trunk branch connection
• Meets ACCA and SMACNA applicable standards for sheet metal ductwork
• Saddle configuration allows installation on an existing trunk line without full duct section replacement

Compatibility

Designed as an OEM-style sheet metal fitting for use in trunk-and-branch forced-air duct systems requiring a 14-inch round saddle takeoff connection.

Installation Notes

Installation is performed by licensed sheet metal mechanics or HVAC technicians following SMACNA duct construction standards. Power down the air handling unit before cutting into or modifying any duct section. Seal all joints with mastic or UL 181-listed tape per local mechanical code requirements. Use appropriate tin snips, hole saws, and sheet metal screws rated for galvanized steel applications.

Technical Specifications

• Material: Hot-Dipped Galvanized Steel
• Size A (Diameter): 14 inches
• Size B (Diameter): 14 inches
• Type: Air-Tite, Saddle, Round
• Applicable Standards: ACCA, SMACNA

Standard Information

• Brand: SOUTHWARK METAL
• Manufacturer Part Number: ATTRP_14IN
