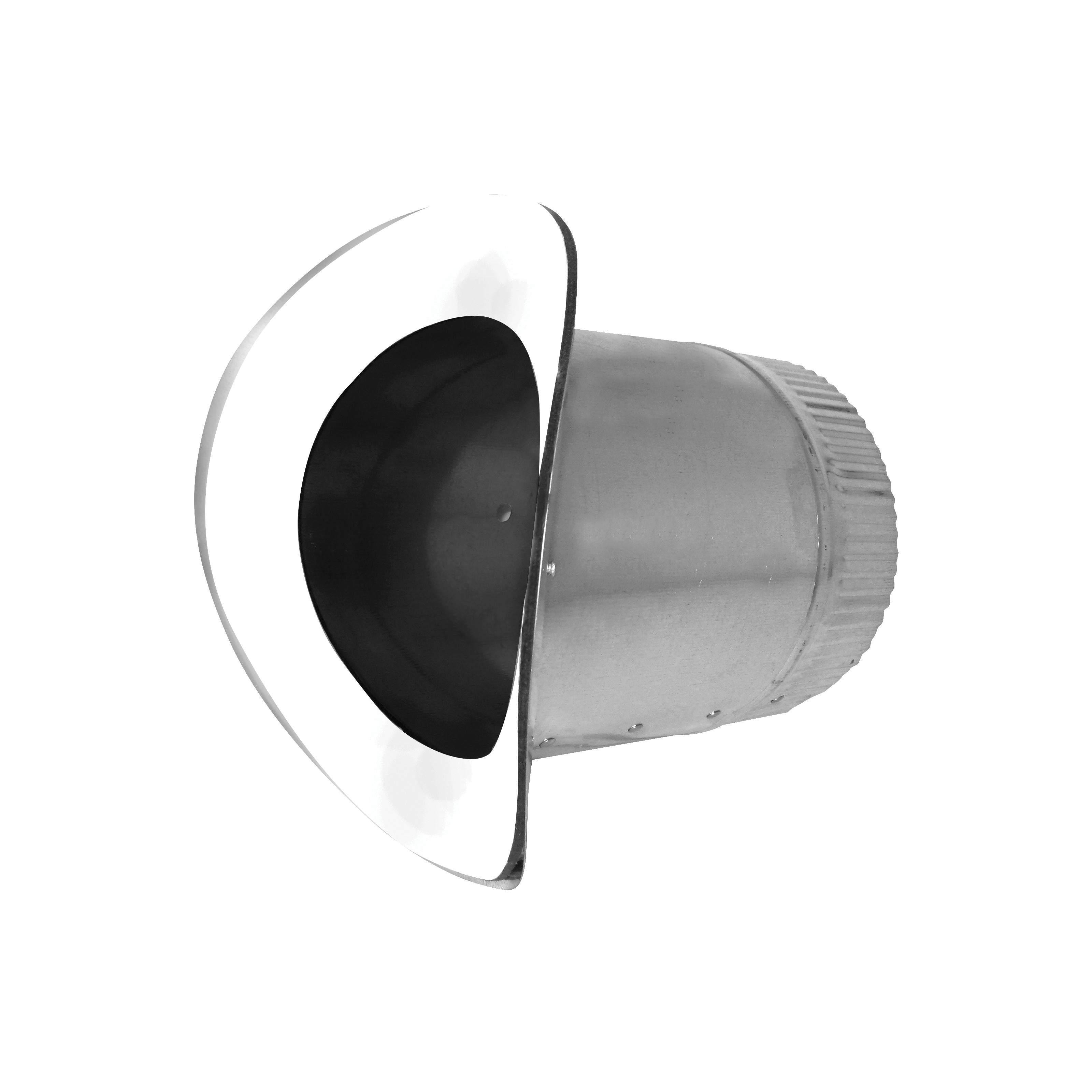

Southwark Metal ATTRP12 Air-Tite Round Pipe Takeoff (12 in)

Product Description

The Southwark Metal ATTRP12 is a 12-inch Air-Tite round pipe saddle takeoff constructed from 26 gauge galvanized steel for tap-in connections to round ductwork. It includes a high-tack adhesive-coated neoprene foam gasket for reduced leakage, rivet seam construction, and a 1-1/4 in crimped tube connection. The fitting accommodates tube lengths from 5-3/4 to 14-3/4 in and is intended to transition from larger ducts to smaller round ducts.

• 26 gauge galvanized steel construction with hot-dipped galvanized finish
• Air-Tite gasket: high-tack adhesive-coated neoprene foam (1-1/2 in W x 1/8 in THK) with four 1/8 in gasket holes
• Rivet seam and 1/4 in crimped tube connection: 1-1/4 in L crimp, 1/2 in overlap with 1/8 in rivets; tube length 5-3/4 to 14-3/4 in

Product Highlights

12 in round Air-Tite saddle takeoff; 26 ga galvanized steel; neoprene foam gasket for reduced leakage

Product Information

Standard Information

• Brand: SOUTHWARK METAL
• Manufacturer Part Number: ATTRP12
